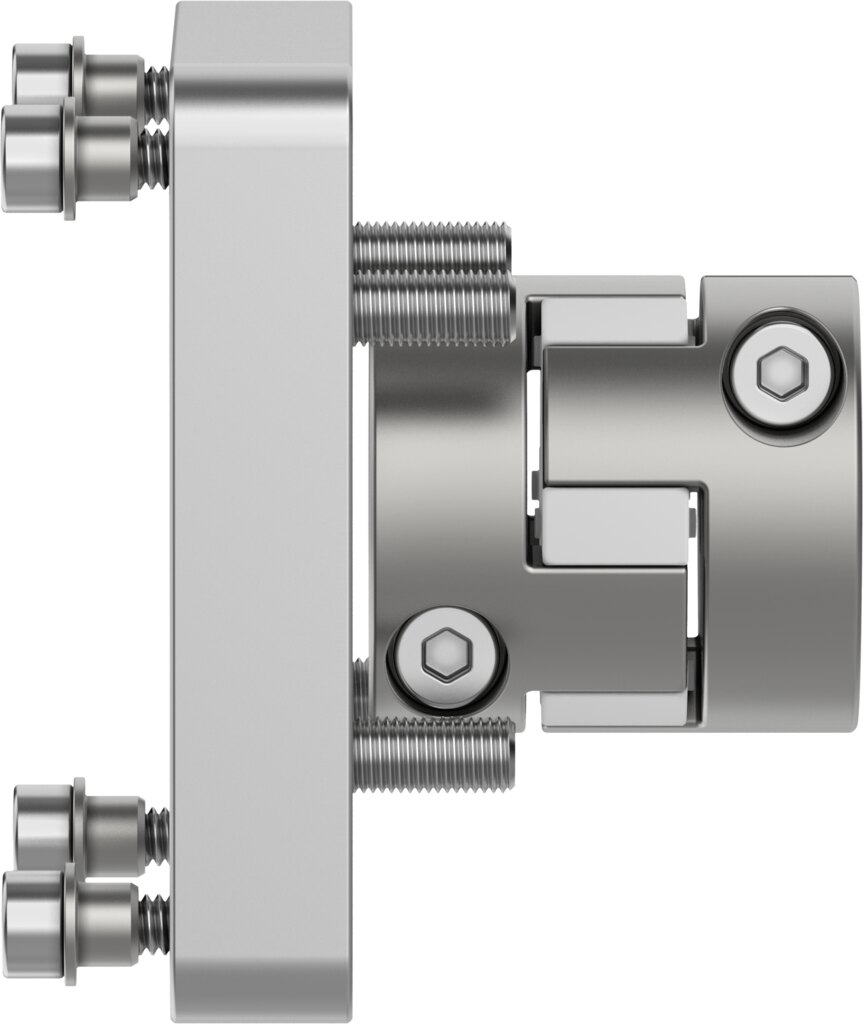

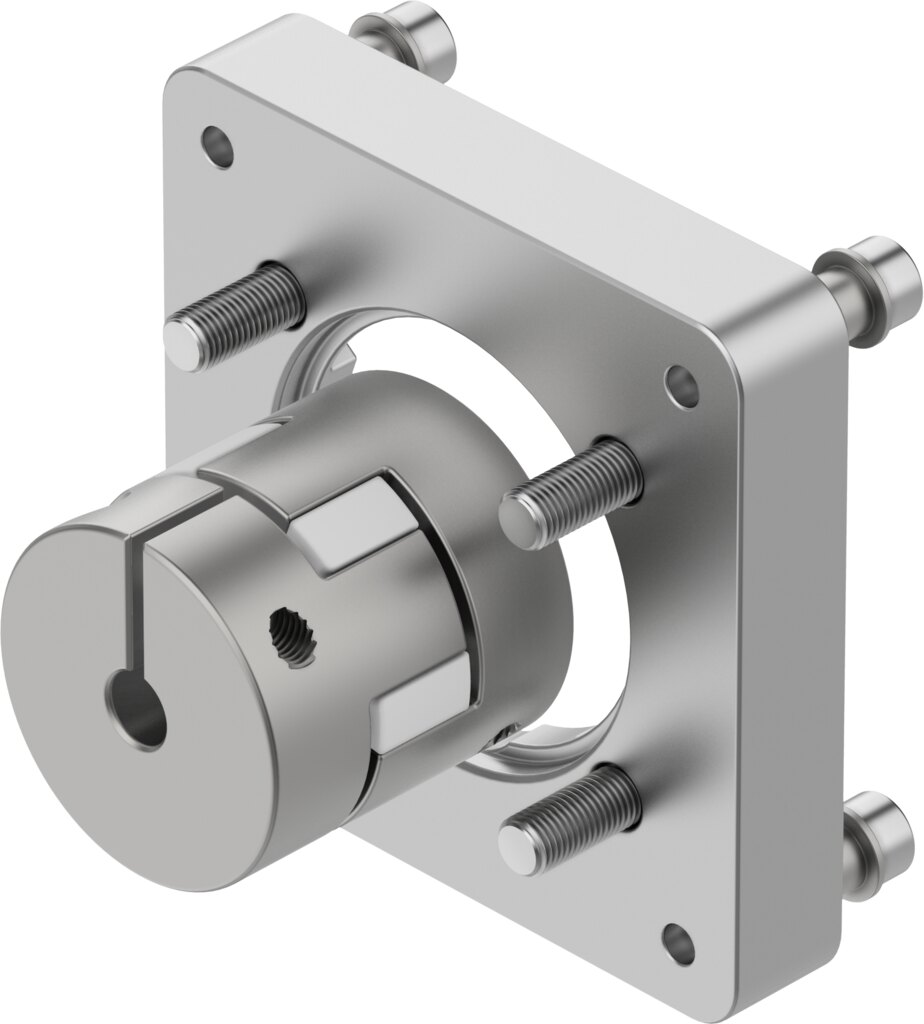

Axial kit for motor mounting, actuator P6-38A, motor 60R, 6.5 Nm EAMM-A-P6-38A-60R - Festo 8123495

Festo ✓ Original product Brand new

The axial kit EAMM-A-P6-38A-60R mounts a motor with interface 60R in line with a drive carrying interface code P6-38A. It transmits up to 6.5 Nm. Speed up to 8000 1/min, degree of protection IP40. Mass moment of inertia 5.87 kgmm².

Net
€220.96
excl. VAT
Item FES-8123495
Manufacturer no. EAMM-A-P6-38A-60R
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

6.5 Nm transmittable torque, degree of protection IP40 and matching interfaces for actuator P6-38A and motor 60R: with the axial kit EAMM-A-P6-38A-60R motor mounting is done without designing your own adapter.

Benefits

  • Transmittable torque 6.5 Nm between motor and drive
  • Speed up to 8000 1/min
  • Mass moment of inertia 5.87 kgmm² as input for drive sizing
  • Interfaces actuator P6-38A, motor 60R, coupling housing 38A
  • Degree of protection IP40, ambient temperature -10 to 60 °C

Applications

When sizing the axis, the mass moment of inertia of 5.87 kgmm² and the transmittable torque of 6.5 Nm feed into the choice of motor and controller. The kit is mounted between motor (60R) and drive (P6-38A).

Technical data

Nominal length11.8 mm
Mounting positionAny
Max. rotational speed8000 1/min
LABS (PWIS) conformityVDMA24364-B2-L
Storage temperature-25 to 60 °C
Relative air humidity0 - 95%
Degree of protectionIP40
Ambient temperature-10 to 60 °C
Mass moment of inertia5.87 kgmm²
Transmittable torque6.5 Nm
Product weight210 g
Interface code, actuatorP6-38A
Interface code, motor in60R
Interface code, clutch housing38A
Note on materialsRoHS compliant
Weight0.195 kg
ManufacturerFesto
Hersteller-NrEAMM-A-P6-38A-60R
EAN4052568551513
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP40
Temperaturbereich-10-60 °C
Temperature (max.)60
