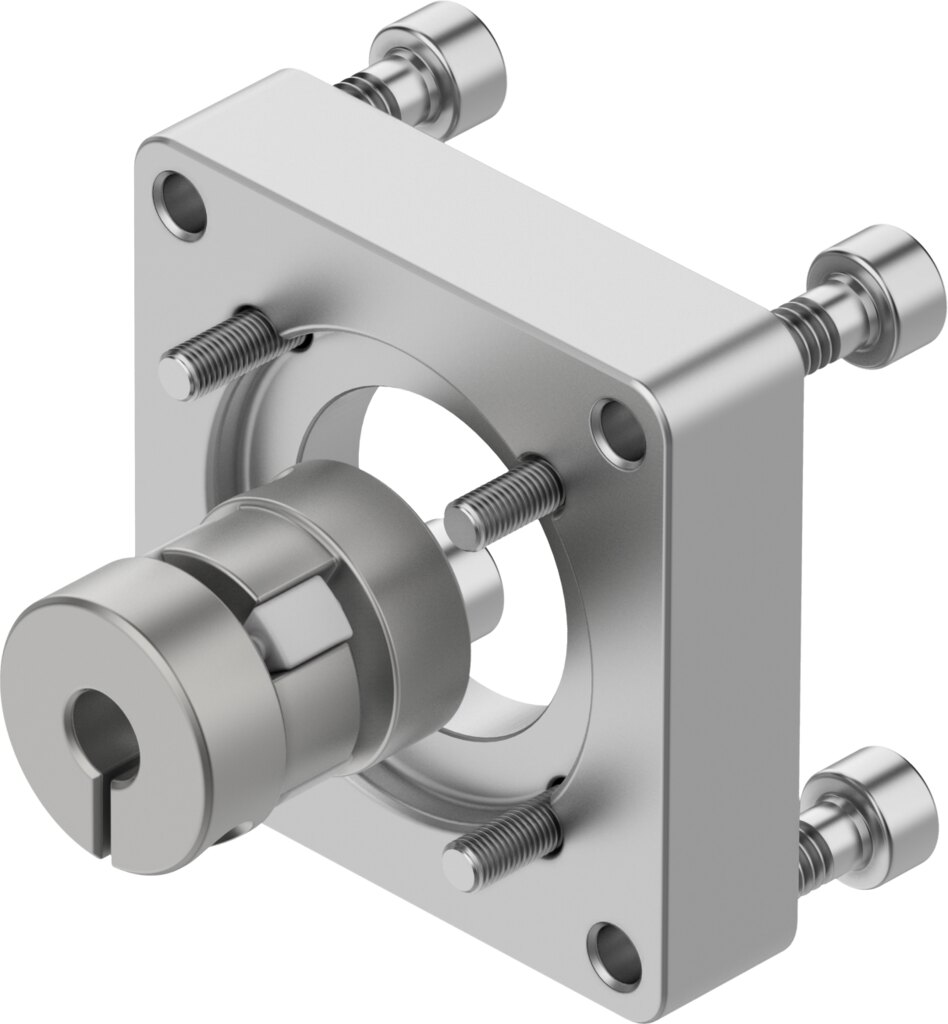

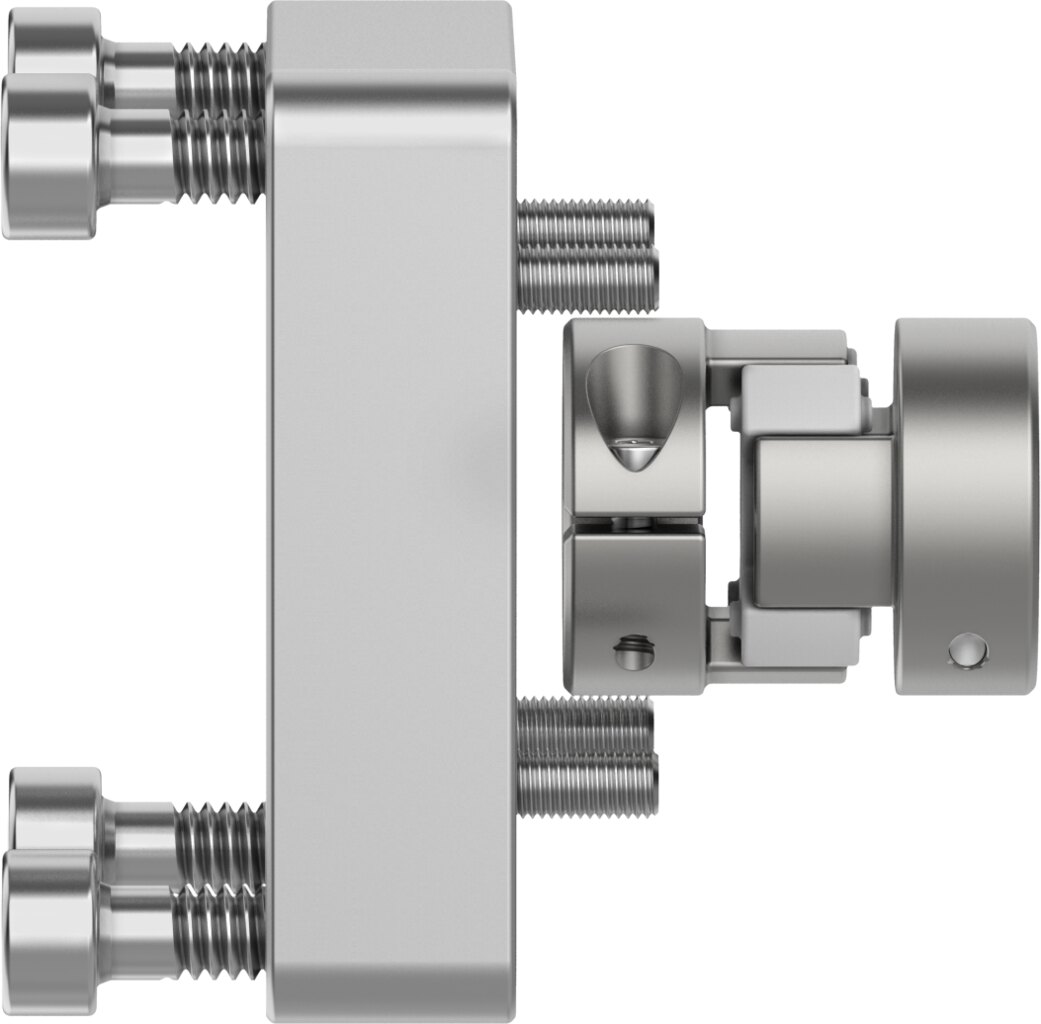

Axial kit for motor mounting, actuator P5-28B, motor 40RA, 1.1 Nm EAMM-A-P5-28B-40RA - Festo 8107712

Festo ✓ Original product Brand new

Connect motor and electric drive axially without designing your own adapter parts: the axial kit EAMM-A-P5-28B-40RA fits actuator P5-28B and motor 40RA and transmits up to 1.1 Nm. Speed up to 10000 1/min, degree of protection IP40. Mass moment of inertia 0.28 kgmm².

Net
€165.74
excl. VAT
Item FES-8107712
Manufacturer no. EAMM-A-P5-28B-40RA
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

1.1 Nm transmittable torque, degree of protection IP40 and matching interfaces for actuator P5-28B and motor 40RA: with the axial kit EAMM-A-P5-28B-40RA motor mounting is done without designing your own adapter.

Benefits

  • Transmittable torque 1.1 Nm between motor and drive
  • Speed up to 10000 1/min
  • Mass moment of inertia 0.28 kgmm² as input for drive sizing
  • Interfaces actuator P5-28B, motor 40RA, coupling housing 28B
  • Degree of protection IP40, ambient temperature -10 to 60 °C

Applications

When sizing the axis, the mass moment of inertia of 0.28 kgmm² and the transmittable torque of 1.1 Nm feed into the choice of motor and controller. The kit is mounted between motor (40RA) and drive (P5-28B).

Technical data

Nominal length10.5 mm
Mounting positionAny
Max. rotational speed10000 1/min
LABS (PWIS) conformityVDMA24364-B2-L
Storage temperature-25 to 60 °C
Relative air humidity0 - 95%
Degree of protectionIP40
Ambient temperature-10 to 60 °C
Mass moment of inertia0.28 kgmm²
Transmittable torque1.1 Nm
Product weight49 g
Interface code, actuatorP5-28B
Interface code, motor in40RA
Interface code, clutch housing28B
Note on materialsRoHS compliant
Weight0.1 kg
ManufacturerFesto
Hersteller-NrEAMM-A-P5-28B-40RA
EAN4052568551315
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP40
Temperaturbereich-10-60 °C
Temperature (max.)60
