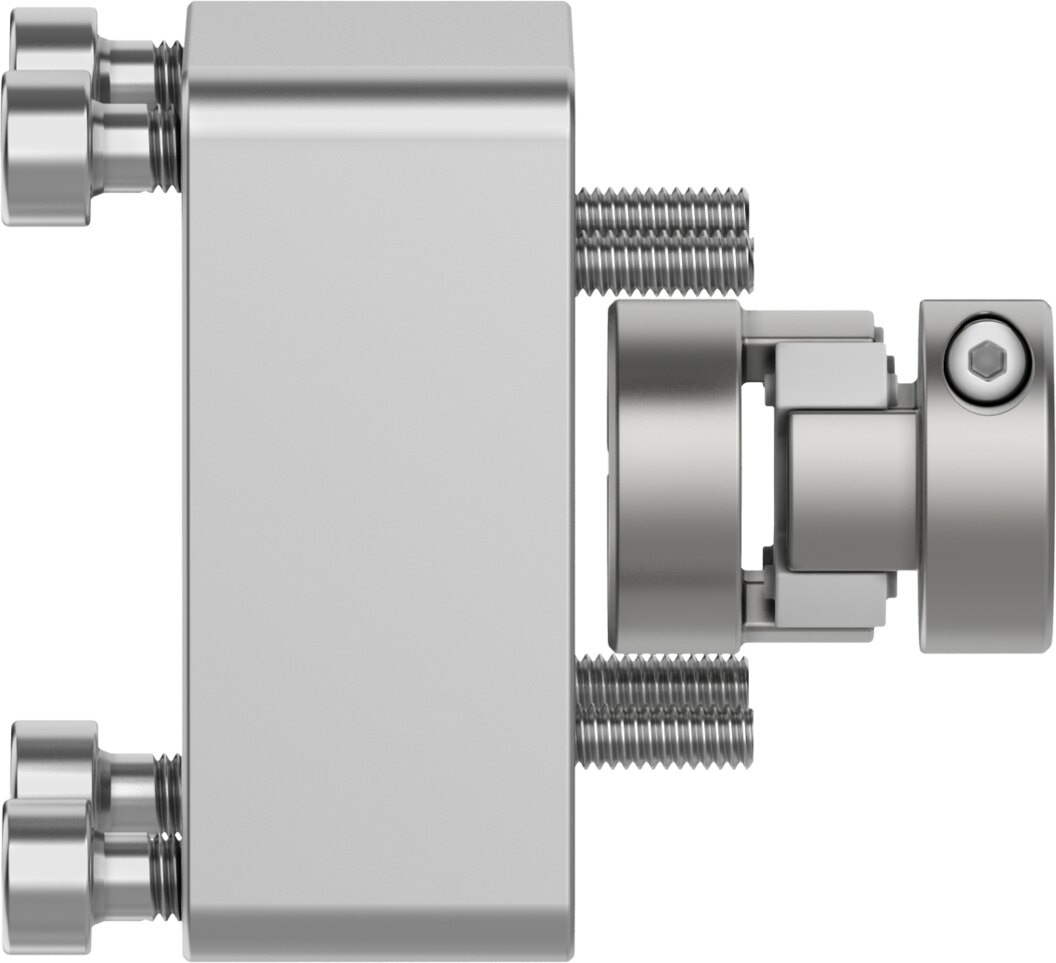

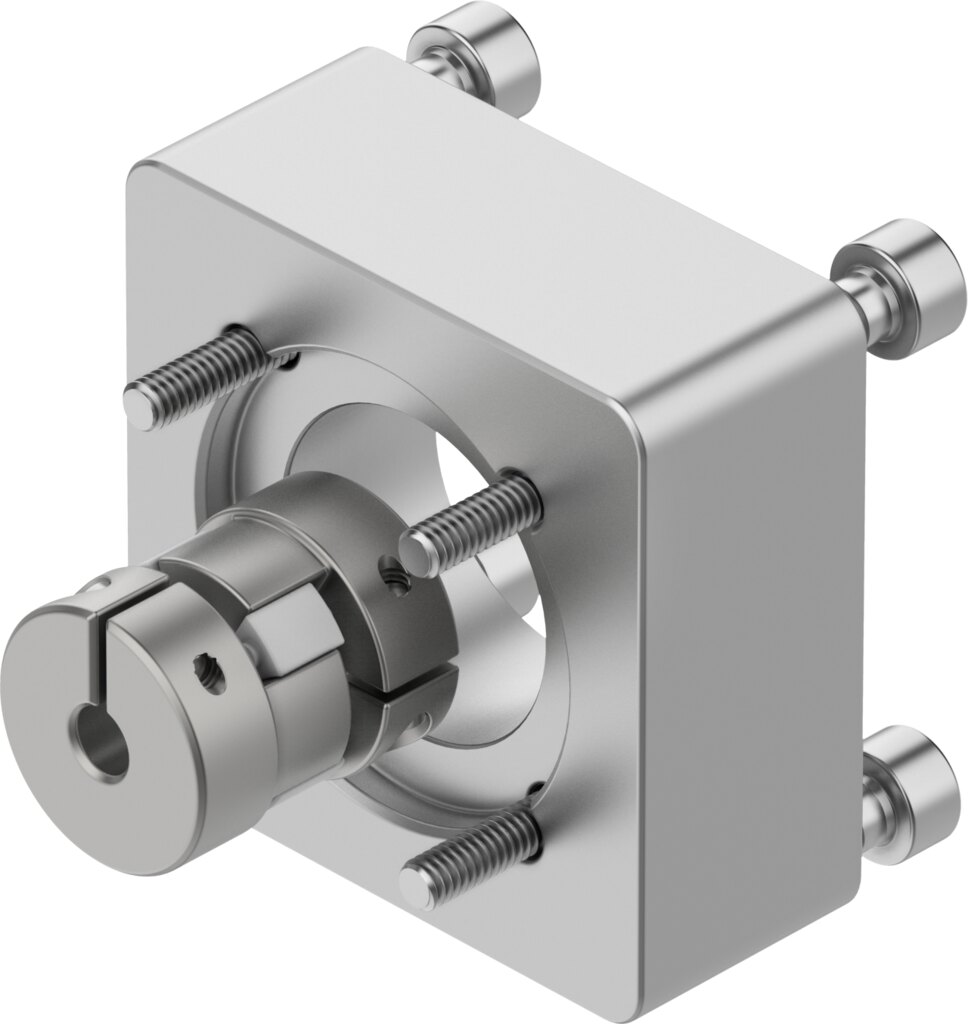

Axial kit for motor mounting, actuator P4-28B, motor 40R, 0.7 Nm EAMM-A-P4-28B-40R - Festo 8107707
The axial kit EAMM-A-P4-28B-40R mounts a motor with interface 40R in line with a drive carrying interface code P4-28B. It transmits up to 0.7 Nm. Speed up to 10000 1/min, degree of protection IP40. Mass moment of inertia 0.28 kgmm².
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
0.7 Nm transmittable torque, degree of protection IP40 and matching interfaces for actuator P4-28B and motor 40R: with the axial kit EAMM-A-P4-28B-40R motor mounting is done without designing your own adapter.
Benefits
- Transmittable torque 0.7 Nm between motor and drive
- Speed up to 10000 1/min
- Mass moment of inertia 0.28 kgmm² as input for drive sizing
- Interfaces actuator P4-28B, motor 40R, coupling housing 28B
- Degree of protection IP40, ambient temperature -10 to 60 °C
Applications
The EAMM-A-P4-28B-40R is used whenever a motor with interface code 40R has to be fitted to an electric drive with interface P4-28B. Typical applications are positioning axes in assembly, packaging and laboratory automation.
Technical data
| Nominal length | 17.5 mm |
|---|---|
| Mounting position | Any |
| Max. rotational speed | 10000 1/min |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Storage temperature | -25 to 60 °C |
| Relative air humidity | 0 - 95% |
| Degree of protection | IP40 |
| Ambient temperature | -10 to 60 °C |
| Mass moment of inertia | 0.28 kgmm² |
| Transmittable torque | 0.7 Nm |
| Product weight | 71 g |
| Interface code, actuator | P4-28B |
| Interface code, motor in | 40R |
| Interface code, clutch housing | 28B |
| Note on materials | RoHS compliant |
| Manufacturer | Festo |
| Hersteller-Nr | EAMM-A-P4-28B-40R |
| EAN | 4052568551278 |
| Zolltarifnummer | 84836080 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Series | EAMM |
| Protection rating | IP40 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
