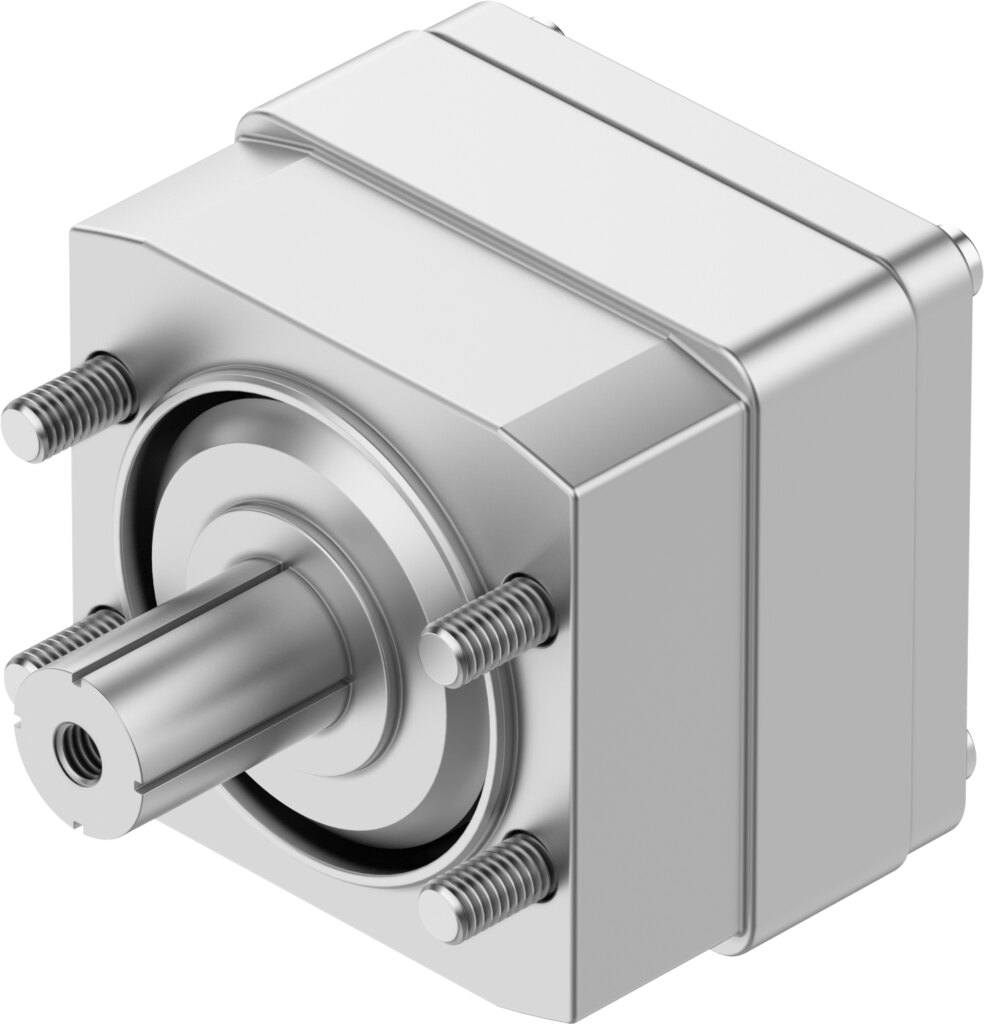

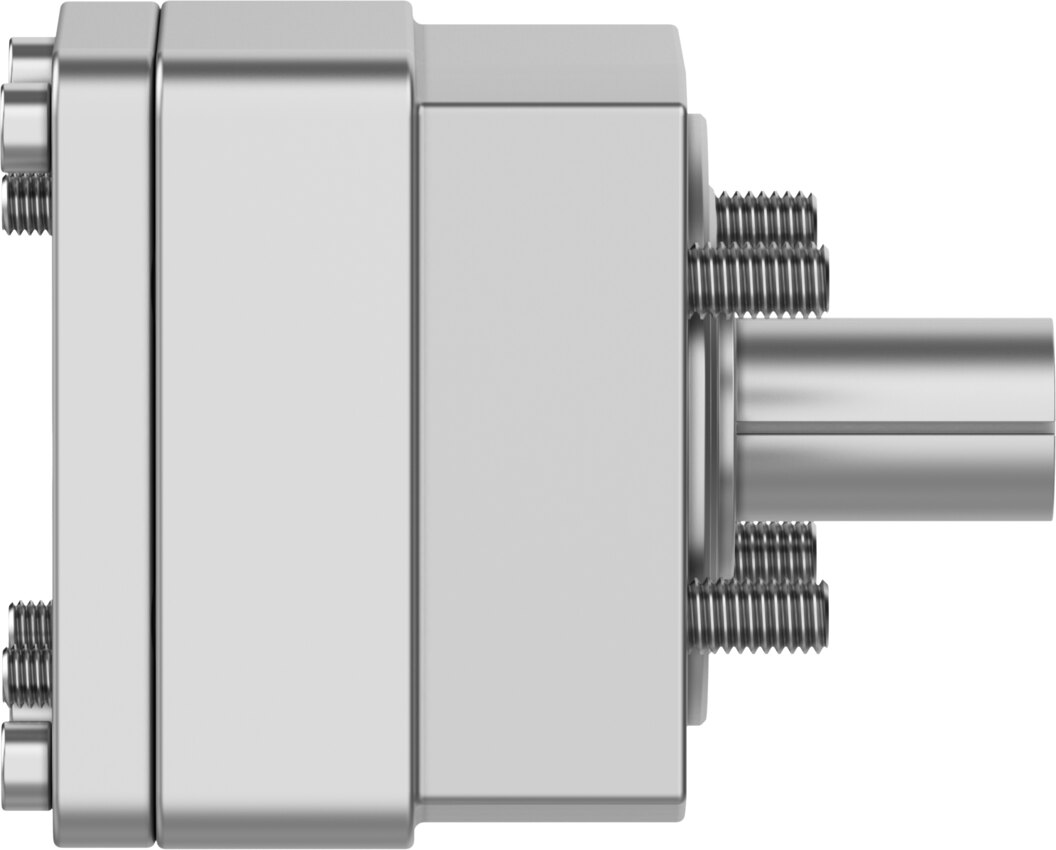

Axial kit for motor mounting, 21 Nm, actuator N48, motor 60H EAMM-A-N48-60H-G2 - Festo 8197465

Festo ✓ Original product Brand new

The axial kit EAMM-A-N48-60H-G2 connects motor and axis on a common centre line. Up to 21 Nm of torque is transmitted, speeds of up to 6000 1/min are permitted. The codes N48 (actuator) and 60H (motor) define the match.

Net
€217.00
excl. VAT
Item FES-8197465
Manufacturer no. EAMM-A-N48-60H-G2
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The axial kit EAMM-A-N48-60H-G2 connects motor and axis on a common centre line. Up to 21 Nm of torque is transmitted, speeds of up to 6000 1/min are permitted.

Key benefits

  • Transmittable torque 21 Nm
  • Speeds up to 6000 1/min
  • Mass moment of inertia 39 kgmm² for sizing the drive
  • Degree of protection IP40, protected against solid objects from 1 mm
  • LABS (PWIS) conform to VDMA 24364-B2-L, for paint-sensitive areas
  • Ambient temperature -10 to 60 °C

Application

Used when mounting a motor to a Festo electric axis, as original equipment or as a spare part. The table data come from Festo and apply to EAMM-A-N48-60H-G2.

Technical data

TypeEAMM-A-N48-60H-G2
Festo part no.8197465
Nominal length46 mm
Transmittable torque21 Nm
Max. rotational speed6000 1/min
Mass moment of inertia39 kgmm²
Interface code, actuatorN48
Interface code, motor in60H
Degree of protectionIP40
Mounting positionAny
Ambient temperature-10 to 60 °C
Storage temperature-25 to 60 °C
Relative air humidity0 - 95 %
LABS (PWIS) conformityVDMA 24364-B2-L
Product weight452 g
Note on materialsRoHS compliant
Weight0.55 kg
ManufacturerFesto
Hersteller-NrEAMM-A-N48-60H-G2
EAN4052568648336
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP40
Temperaturbereich-10-60 °C
Temperature (max.)60
