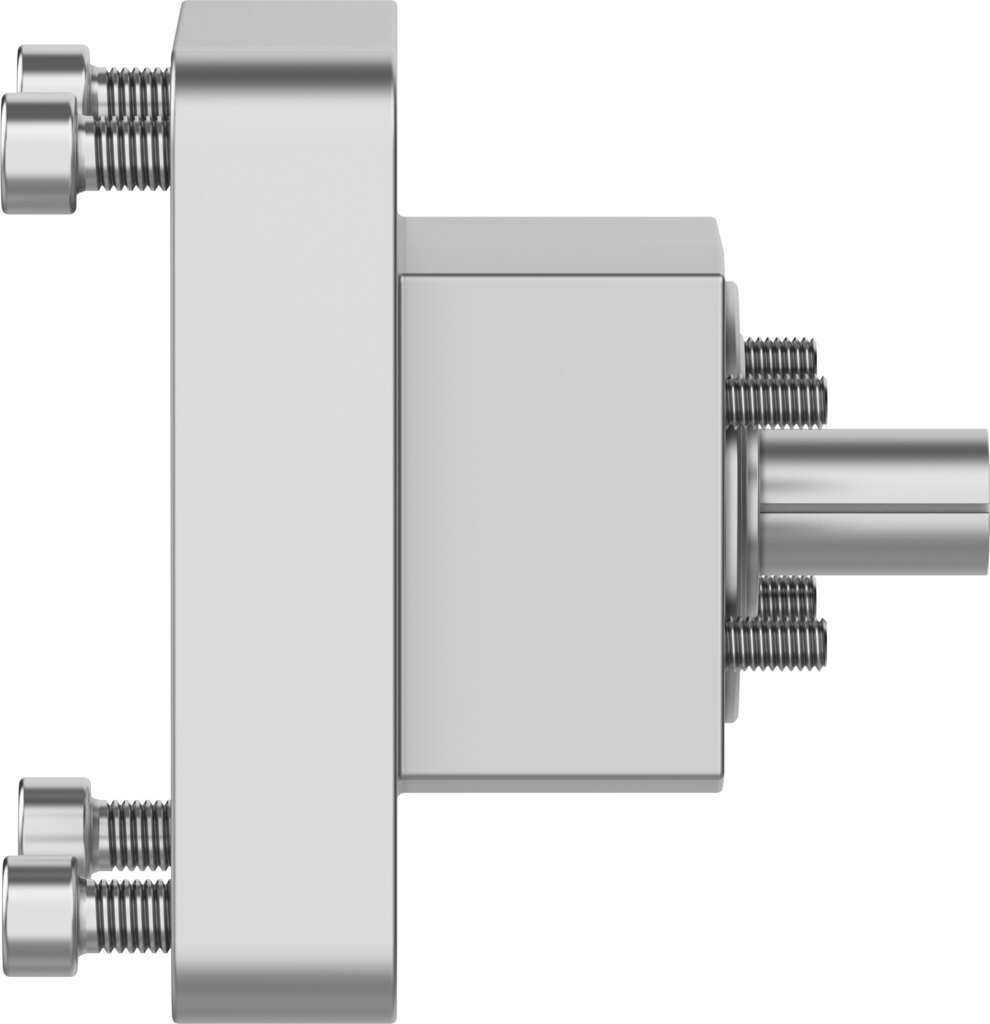

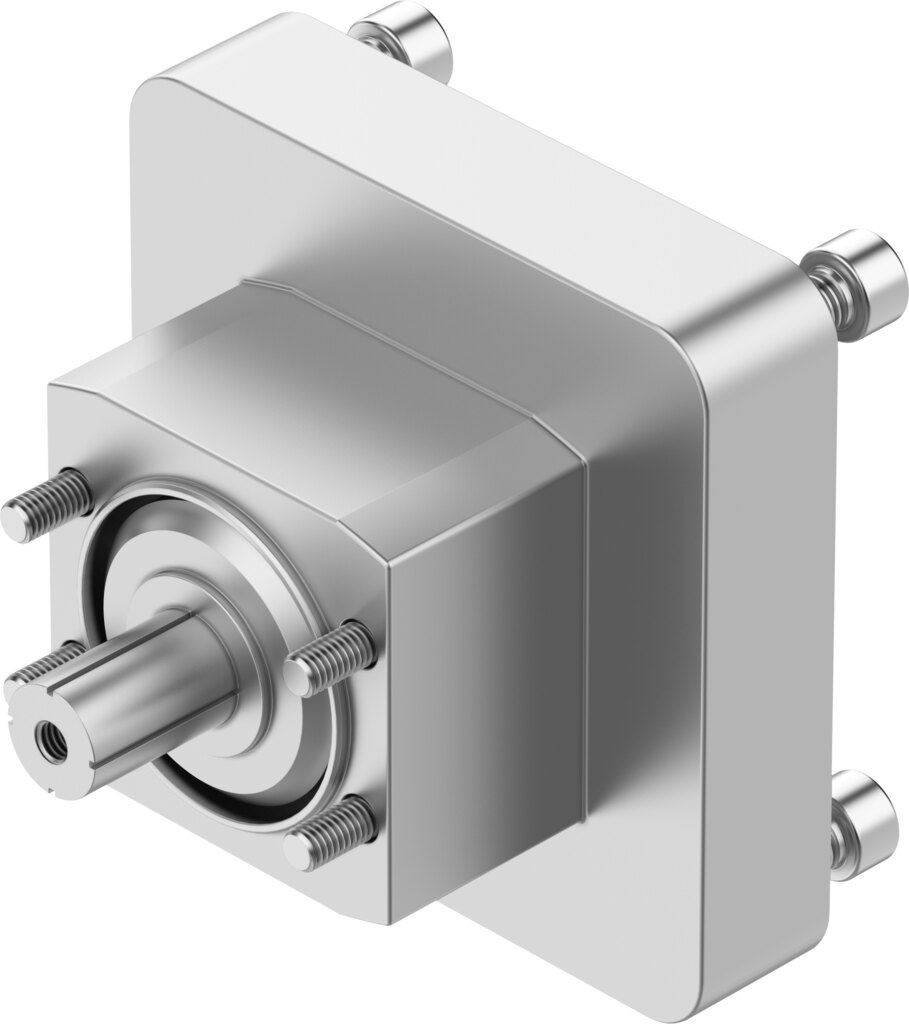

Axial kit for motor mounting, 17 Nm, actuator N48, motor 100A EAMM-A-N48-100A-G2 - Festo 8197464
Axial motor mounting without in-house design work: the EAMM-A-N48-100A-G2 kit places the motor in line behind the axis. The transmittable torque is 17 Nm, speeds of up to 6000 1/min are permitted. The codes N48 (actuator) and 100A (motor) define the match.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Axial motor mounting without in-house design work: the EAMM-A-N48-100A-G2 kit places the motor in line behind the axis. The transmittable torque is 17 Nm, speeds of up to 6000 1/min are permitted.
Why this part
- Transmittable torque 17 Nm
- Speeds up to 6000 1/min
- Mass moment of inertia 39 kgmm² for sizing the drive
- Degree of protection IP40, protected against solid objects from 1 mm
- LABS (PWIS) conform to VDMA 24364-B2-L, for paint-sensitive areas
- Ambient temperature -10 to 60 °C
Application
EAMM-A-N48-100A-G2 is fitted when mounting motors to Festo electric axes, in new designs or as a replacement. The Festo data for EAMM-A-N48-100A-G2 in the table are decisive for selection.
Technical data
| Type | EAMM-A-N48-100A-G2 |
|---|---|
| Festo part no. | 8197464 |
| Nominal length | 59 mm |
| Transmittable torque | 17 Nm |
| Max. rotational speed | 6000 1/min |
| Mass moment of inertia | 39 kgmm² |
| Interface code, actuator | N48 |
| Interface code, motor in | 100A |
| Degree of protection | IP40 |
| Mounting position | Any |
| Ambient temperature | -10 to 60 °C |
| Storage temperature | -25 to 60 °C |
| Relative air humidity | 0 - 95 % |
| LABS (PWIS) conformity | VDMA 24364-B2-L |
| Product weight | 851 g |
| Note on materials | RoHS compliant |
| Weight | 1 kg |
| Manufacturer | Festo |
| Hersteller-Nr | EAMM-A-N48-100A-G2 |
| EAN | 4052568648329 |
| Zolltarifnummer | 84836080 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Series | EAMM |
| Protection rating | IP40 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
