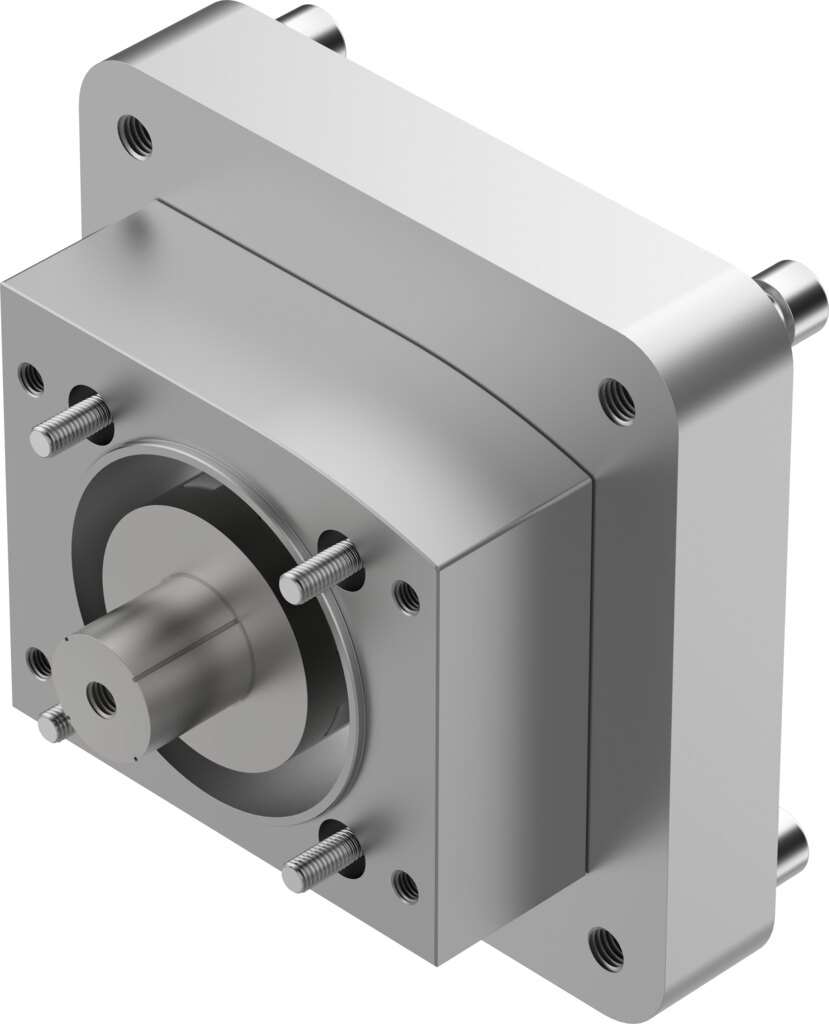

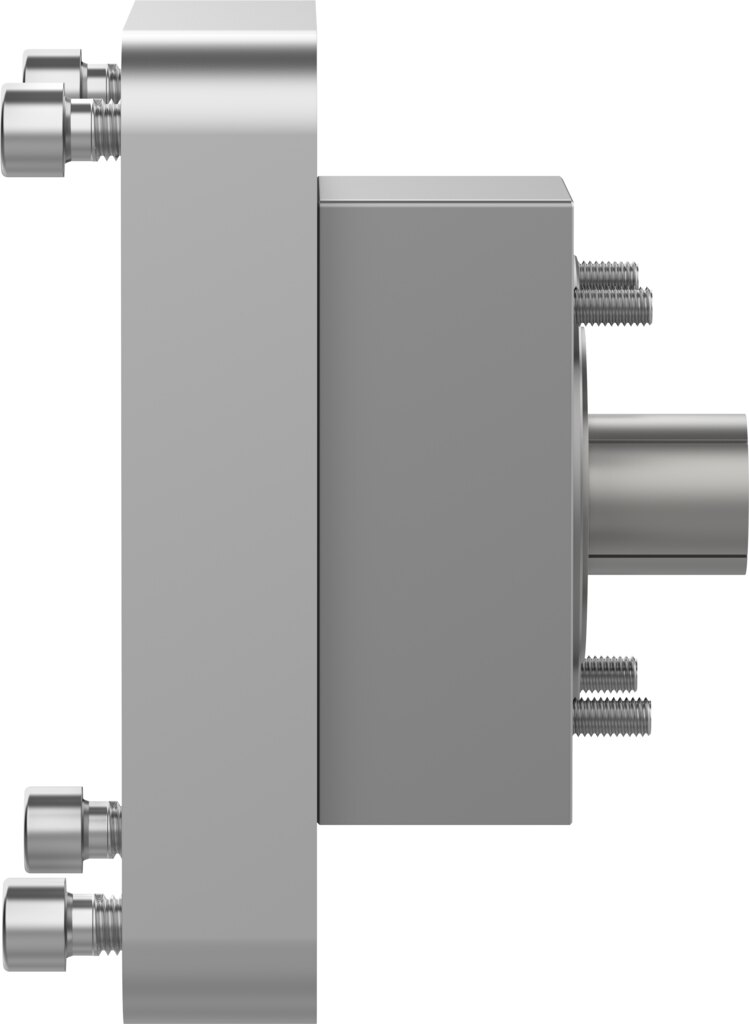

Axial kit for motor mounting, actuator L95, motor 190A or 190B, 192 Nm EAMM-A-L95-190B-G2 - Festo 8157282

Festo ✓ Original product Brand new

Connect motor and electric drive axially without designing your own adapter parts: the axial kit EAMM-A-L95-190B-G2 fits actuator L95 and motor 190A or 190B and transmits up to 192 Nm. Speed up to 4500 1/min, degree of protection IP40. Mass moment of inertia 430 kgmm².

Net
€704.75
excl. VAT
Item FES-8157282
Manufacturer no. EAMM-A-L95-190B-G2
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

192 Nm transmittable torque, degree of protection IP40 and matching interfaces for actuator L95 and motor 190A or 190B: with the axial kit EAMM-A-L95-190B-G2 motor mounting is done without designing your own adapter.

Benefits

  • Transmittable torque 192 Nm between motor and drive
  • Speed up to 4500 1/min
  • Mass moment of inertia 430 kgmm² as input for drive sizing
  • Interfaces actuator L95, motor 190A or 190B
  • Degree of protection IP40, ambient temperature -10 to 60 °C

Applications

The kit sits between motor and electric drive, for example when building handling systems, gantries and feeders. On the drive side it fits interface code L95, on the motor side 190A or 190B.

Technical data

Nominal length85 mm
Mounting positionAny
Max. rotational speed4500 1/min
LABS (PWIS) conformityVDMA24364-B2-L
Storage temperature-25 to 60 °C
Relative air humidity0 - 95%
Degree of protectionIP40
Ambient temperature-10 to 60 °C
Mass moment of inertia430 kgmm²
Transmittable torque192 Nm
Product weight4899 g
Interface code, actuatorL95
Interface code, motor in190A, 190B
Note on materialsRoHS compliant
Weight5 kg
ManufacturerFesto
Hersteller-NrEAMM-A-L95-190B-G2
EAN4052568597054
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP40
Temperaturbereich-10-60 °C
Temperature (max.)60
