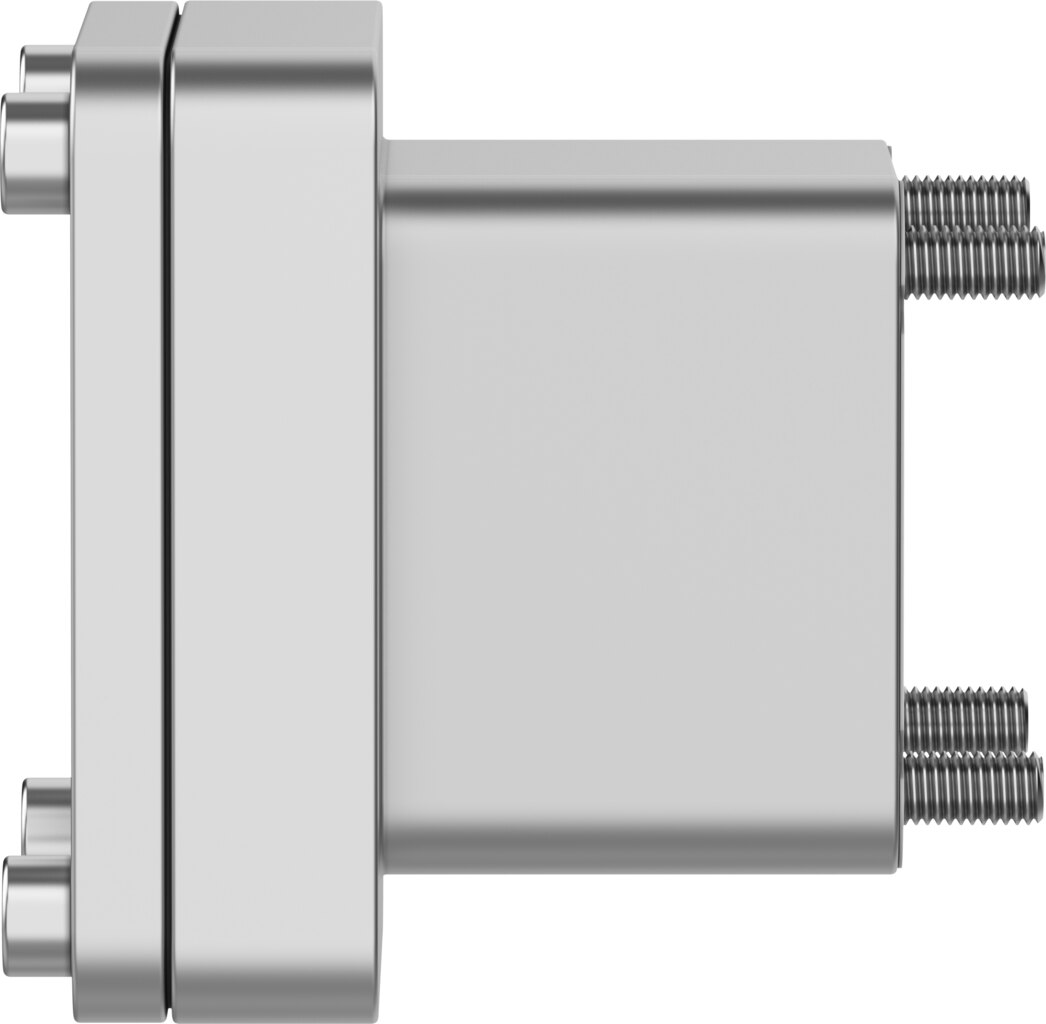

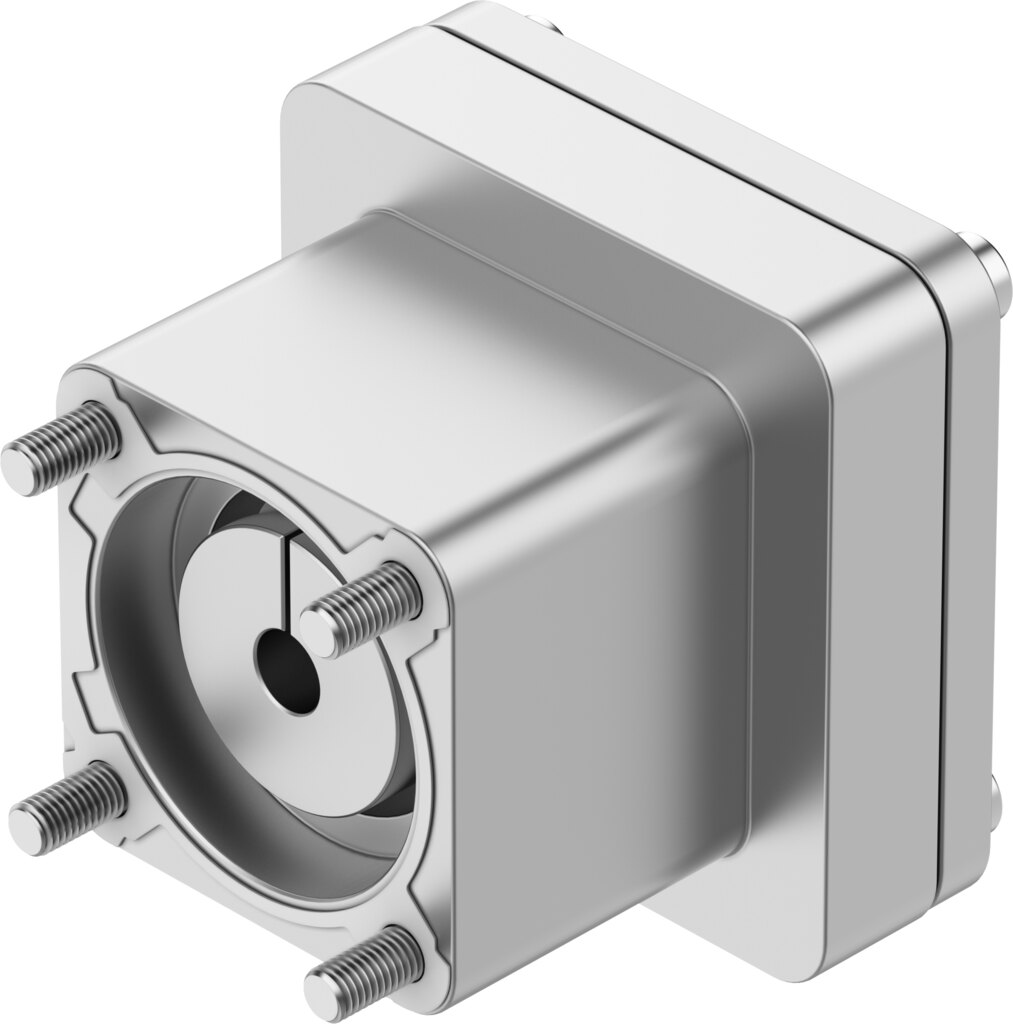

Axial kit for motor mounting, 21 Nm, actuator D60, motor 80G EAMM-A-D60-80G-S1-G2 - Festo 8199481

Festo ✓ Original product Brand new

The axial kit EAMM-A-D60-80G-S1-G2 mounts the motor in line with the electric axis. It transmits up to 21 Nm of torque, the maximum speed is 6000 1/min. Actuator interface code D60, motor side 80G.

Net
€392.95
excl. VAT
Item FES-8199481
Manufacturer no. EAMM-A-D60-80G-S1-G2
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The axial kit EAMM-A-D60-80G-S1-G2 mounts the motor in line with the electric axis. It transmits up to 21 Nm of torque, the maximum speed is 6000 1/min.

Why this part

  • Transmittable torque 21 Nm
  • Speeds up to 6000 1/min
  • Mass moment of inertia 34.8 kgmm² for sizing the drive
  • Degree of protection IP65, dust-tight and protected against water jets
  • LABS (PWIS) conform to VDMA 24364-B2-L, for paint-sensitive areas
  • Ambient temperature -10 to 60 °C

Application

Typical in machine building and handling, wherever a motor is connected to an electric axis. The values in the table are decisive for selection and apply to EAMM-A-D60-80G-S1-G2.

Technical data

TypeEAMM-A-D60-80G-S1-G2
Festo part no.8199481
Nominal length78.4 mm
Transmittable torque21 Nm
Max. rotational speed6000 1/min
Mass moment of inertia34.8 kgmm²
Interface code, actuatorD60
Interface code, motor in80G
Degree of protectionIP65
Mounting positionAny
Ambient temperature-10 to 60 °C
Storage temperature-25 to 60 °C
Relative air humidity0 - 95 %
LABS (PWIS) conformityVDMA 24364-B2-L
Product weight1500 g
Note on materialsRoHS compliant
Weight1.6 kg
ManufacturerFesto
Hersteller-NrEAMM-A-D60-80G-S1-G2
EAN4052568646639
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP65
Temperaturbereich-10-60 °C
Temperature (max.)60
