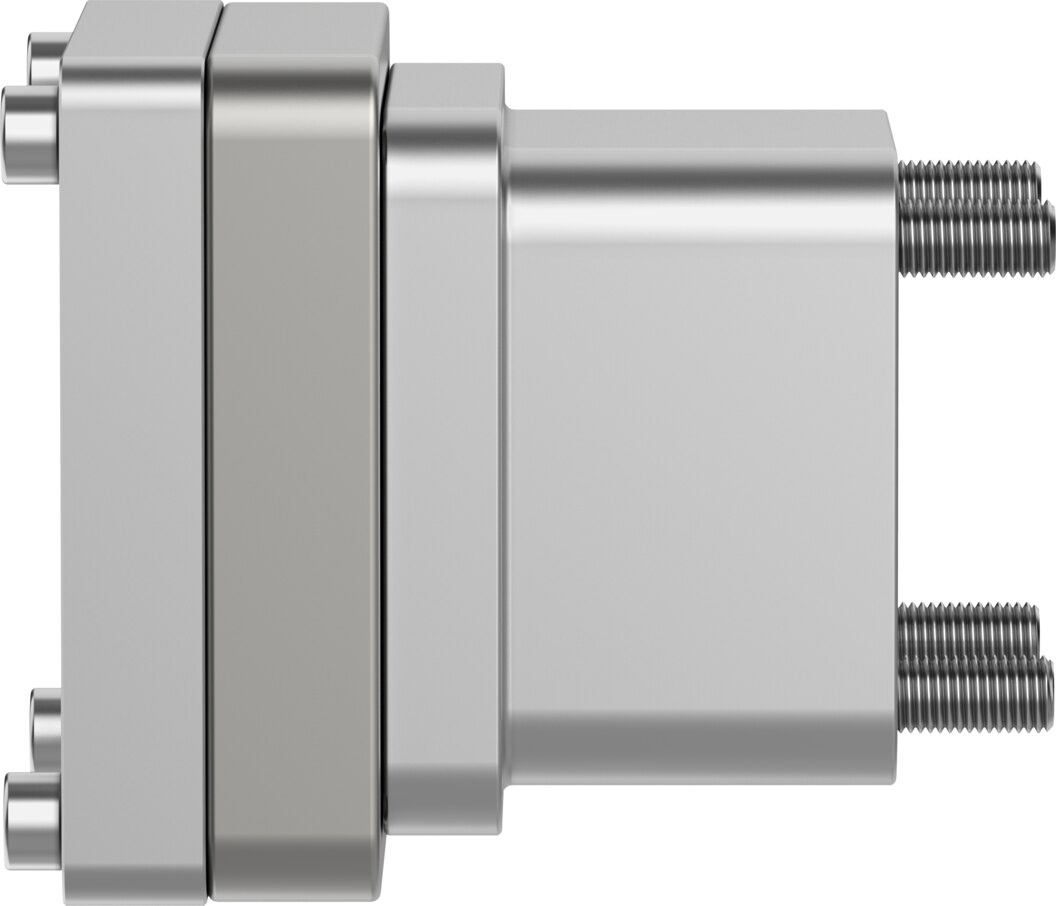

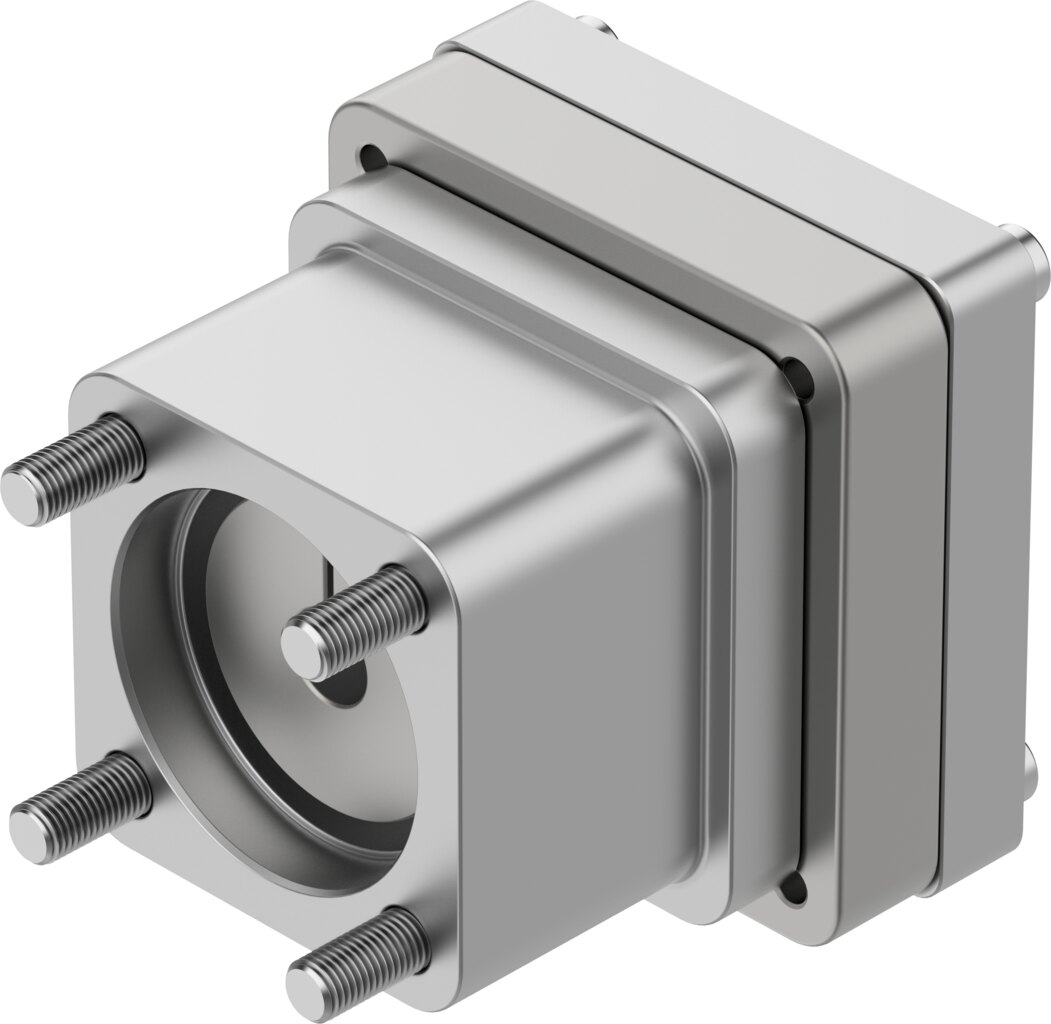

Axial kit for motor mounting, actuator D50, motor 70GA, 21 Nm EAMM-A-D50-70GA - Festo 8123492

Festo ✓ Original product Brand new

For axial motor mounting on drives with interface D50: the kit EAMM-A-D50-70GA takes motors with code 70GA and transmits a torque of up to 21 Nm. Speed up to 6000 1/min, degree of protection IP40. Mass moment of inertia 34.8 kgmm².

Net
€345.26
excl. VAT
Item FES-8123492
Manufacturer no. EAMM-A-D50-70GA
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

21 Nm transmittable torque, degree of protection IP40 and matching interfaces for actuator D50 and motor 70GA: with the axial kit EAMM-A-D50-70GA motor mounting is done without designing your own adapter.

Benefits

  • Transmittable torque 21 Nm between motor and drive
  • Speed up to 6000 1/min
  • Mass moment of inertia 34.8 kgmm² as input for drive sizing
  • Interfaces actuator D50, motor 70GA
  • Degree of protection IP40, ambient temperature -10 to 60 °C

Applications

The kit sits between motor and electric drive, for example when building handling systems, gantries and feeders. On the drive side it fits interface code D50, on the motor side 70GA.

Technical data

Nominal length77 mm
Mounting positionAny
Max. rotational speed6000 1/min
LABS (PWIS) conformityVDMA24364-B2-L
Storage temperature-25 to 60 °C
Relative air humidity0 - 95%
Degree of protectionIP40
Ambient temperature-10 to 60 °C
Mass moment of inertia34.8 kgmm²
Transmittable torque21 Nm
Product weight980 g
Interface code, actuatorD50
Interface code, motor in70GA
Note on materialsRoHS compliant
Weight1.1 kg
ManufacturerFesto
Hersteller-NrEAMM-A-D50-70GA
EAN4052568551483
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP40
Temperaturbereich-10-60 °C
Temperature (max.)60
