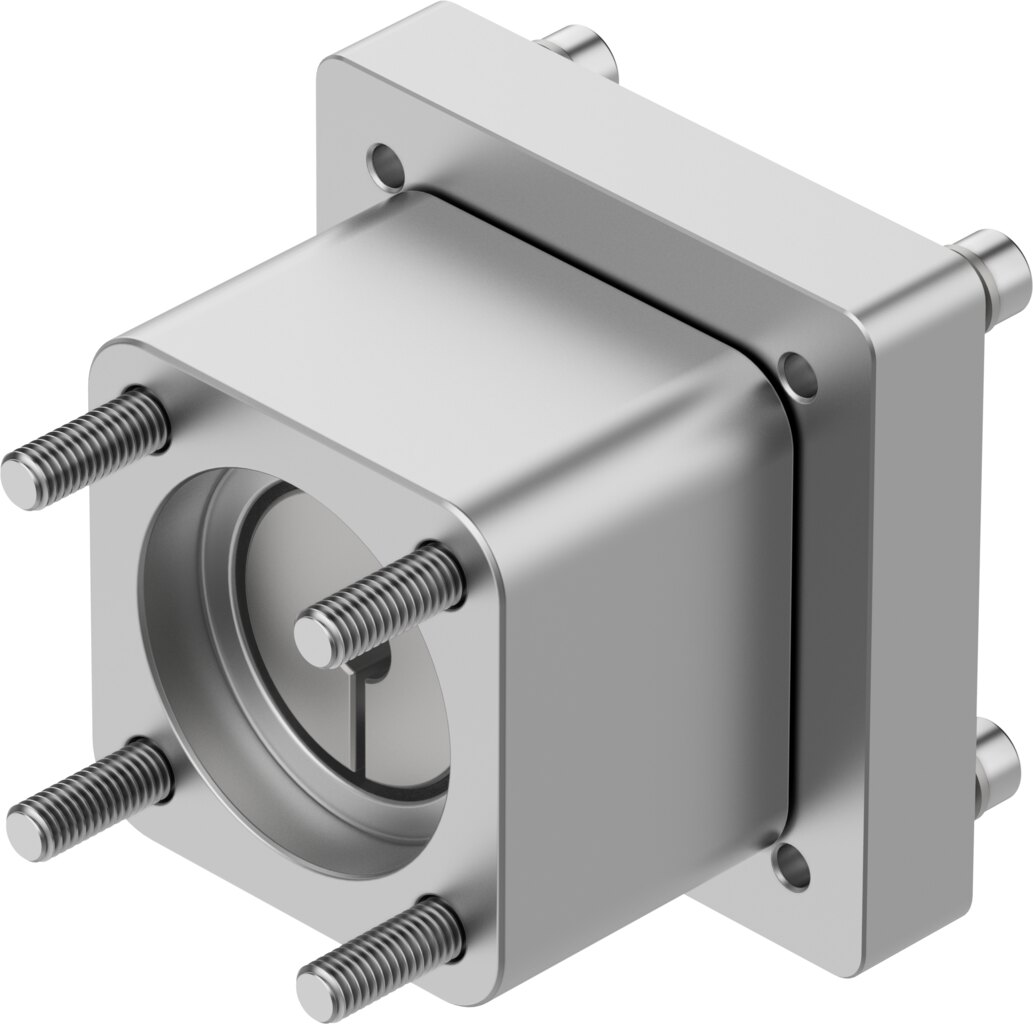

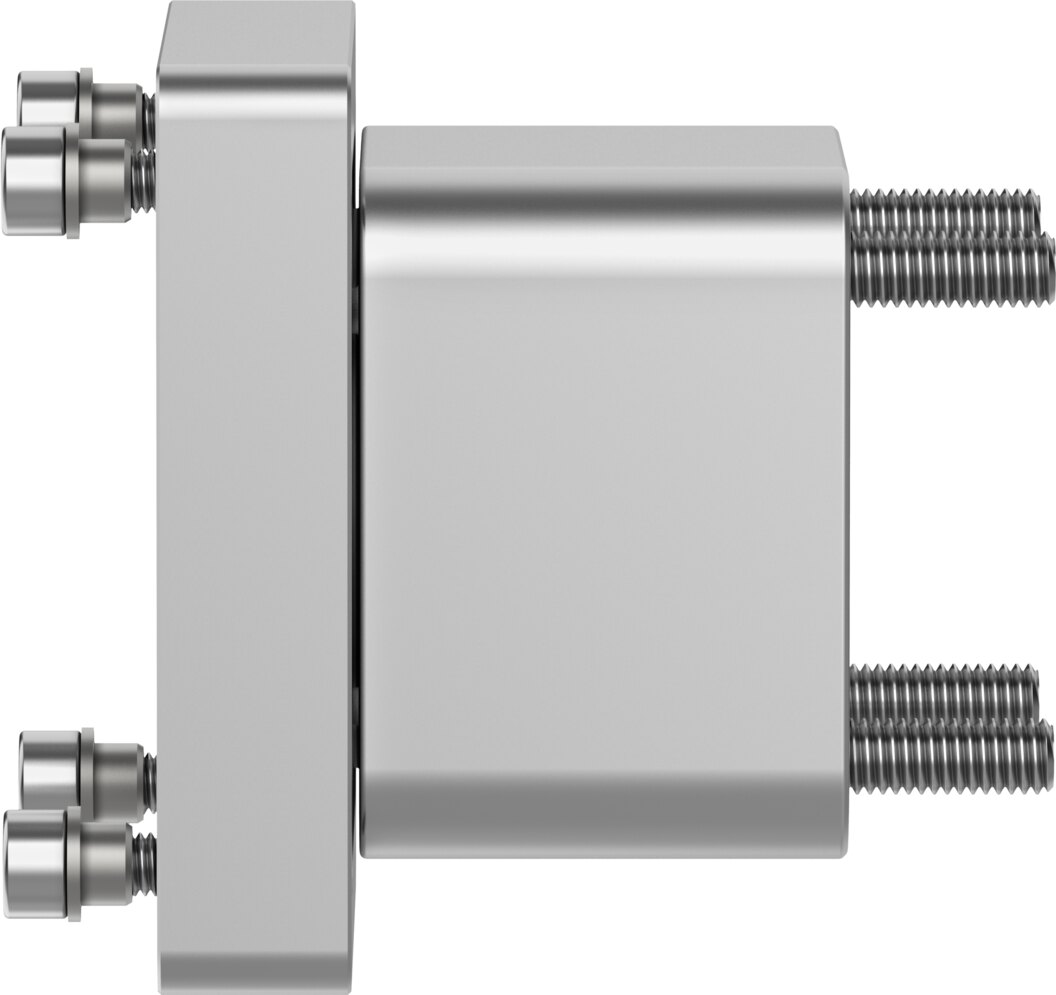

Axial kit for motor mounting, actuator D40, motor 70AA or 70AB, 12.5 Nm EAMM-A-D40-70AA - Festo 8105952
For axial motor mounting on drives with interface D40: the kit EAMM-A-D40-70AA takes motors with code 70AA or 70AB and transmits a torque of up to 12.5 Nm. Degree of protection IP40. Ambient temperature -10 to 60 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
12.5 Nm transmittable torque, degree of protection IP40 and matching interfaces for actuator D40 and motor 70AA or 70AB: with the axial kit EAMM-A-D40-70AA motor mounting is done without designing your own adapter.
Benefits
- Transmittable torque 12.5 Nm between motor and drive
- Interfaces actuator D40, motor 70AA or 70AB
- Degree of protection IP40, ambient temperature -10 to 60 °C
Applications
The kit sits between motor and electric drive, for example when building handling systems, gantries and feeders. On the drive side it fits interface code D40, on the motor side 70AA or 70AB.
Technical data
| Mounting position | Any |
|---|---|
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Storage temperature | -25 to 60 °C |
| Relative air humidity | 0 - 95% |
| Degree of protection | IP40 |
| Ambient temperature | -10 to 60 °C |
| Transmittable torque | 12.5 Nm |
| Product weight | 443 g |
| Interface code, actuator | D40 |
| Interface code, motor in | 70AA, 70AB |
| Note on materials | RoHS compliant |
| Weight | 0.5 kg |
| Manufacturer | Festo |
| Hersteller-Nr | EAMM-A-D40-70AA |
| EAN | 4052568551230 |
| Zolltarifnummer | 84836080 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Series | EAMM |
| Protection rating | IP40 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
