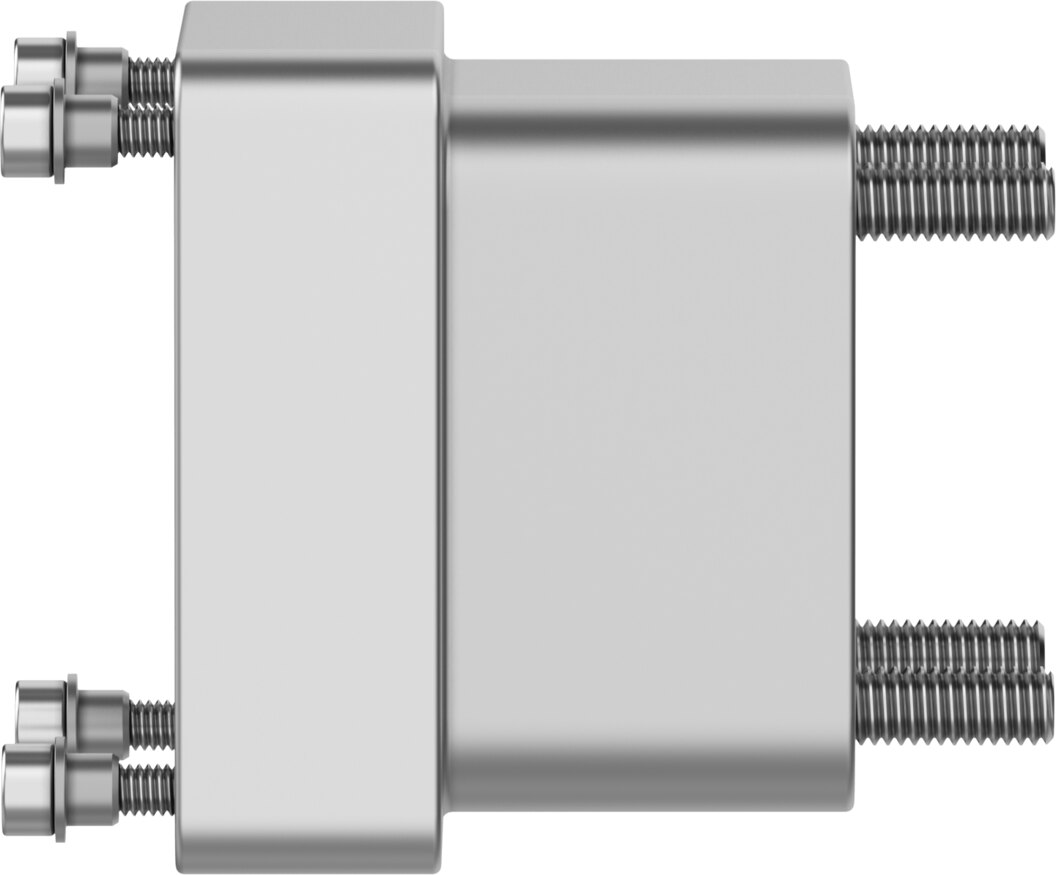

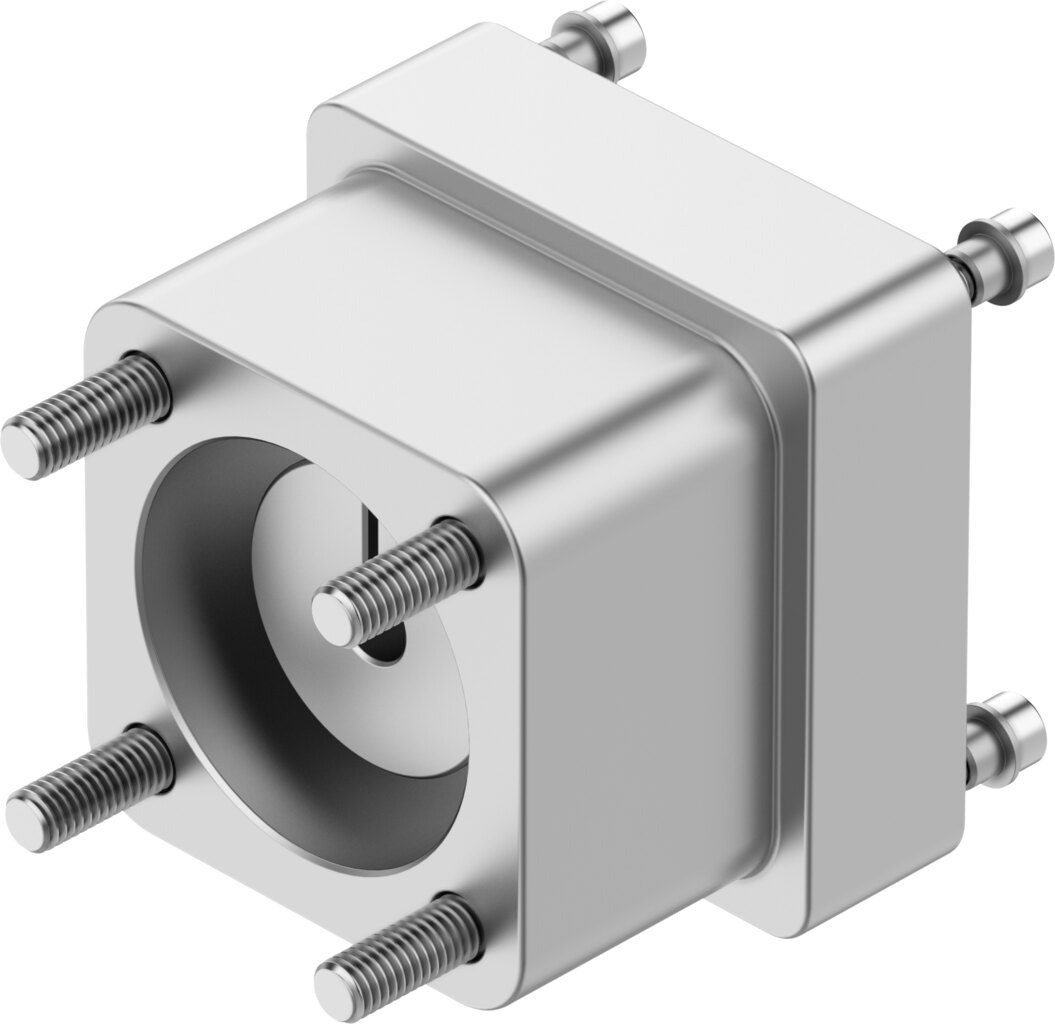

Axial kit for motor mounting, 12.5 Nm, actuator D40, D40C, motor 60P, 60PA EAMM-A-D40-60P-G2 - Festo 8197493

Festo ✓ Original product Brand new

Axial motor mounting without in-house design work: the EAMM-A-D40-60P-G2 kit places the motor in line behind the axis. Up to 12.5 Nm of torque is transmitted, speeds of up to 8000 1/min are permitted. The codes D40, D40C (actuator) and 60P, 60PA (motor) define the match.

Net
€175.95
excl. VAT
Item FES-8197493
Manufacturer no. EAMM-A-D40-60P-G2
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Axial motor mounting without in-house design work: the EAMM-A-D40-60P-G2 kit places the motor in line behind the axis. Up to 12.5 Nm of torque is transmitted, speeds of up to 8000 1/min are permitted.

Key benefits

  • Transmittable torque 12.5 Nm
  • Speeds up to 8000 1/min
  • Mass moment of inertia 5.87 kgmm² for sizing the drive
  • Degree of protection IP40, protected against solid objects from 1 mm
  • LABS (PWIS) conform to VDMA 24364-B2-L, for paint-sensitive areas
  • Ambient temperature -10 to 60 °C

Application

Typical in machine building and handling, wherever a motor is connected to an electric axis. The values in the table are decisive for selection and apply to EAMM-A-D40-60P-G2.

Technical data

TypeEAMM-A-D40-60P-G2
Festo part no.8197493
Nominal length51 mm
Transmittable torque12.5 Nm
Max. rotational speed8000 1/min
Mass moment of inertia5.87 kgmm²
Interface code, actuatorD40, D40C
Interface code, motor in60P, 60PA
Degree of protectionIP40
Mounting positionAny
Ambient temperature-10 to 60 °C
Storage temperature-25 to 60 °C
Relative air humidity0 - 95 %
LABS (PWIS) conformityVDMA 24364-B2-L
Product weight340 g
Note on materialsRoHS compliant
Weight0.36 kg
ManufacturerFesto
Hersteller-NrEAMM-A-D40-60P-G2
EAN4052568646554
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP40
Temperaturbereich-10-60 °C
Temperature (max.)60
