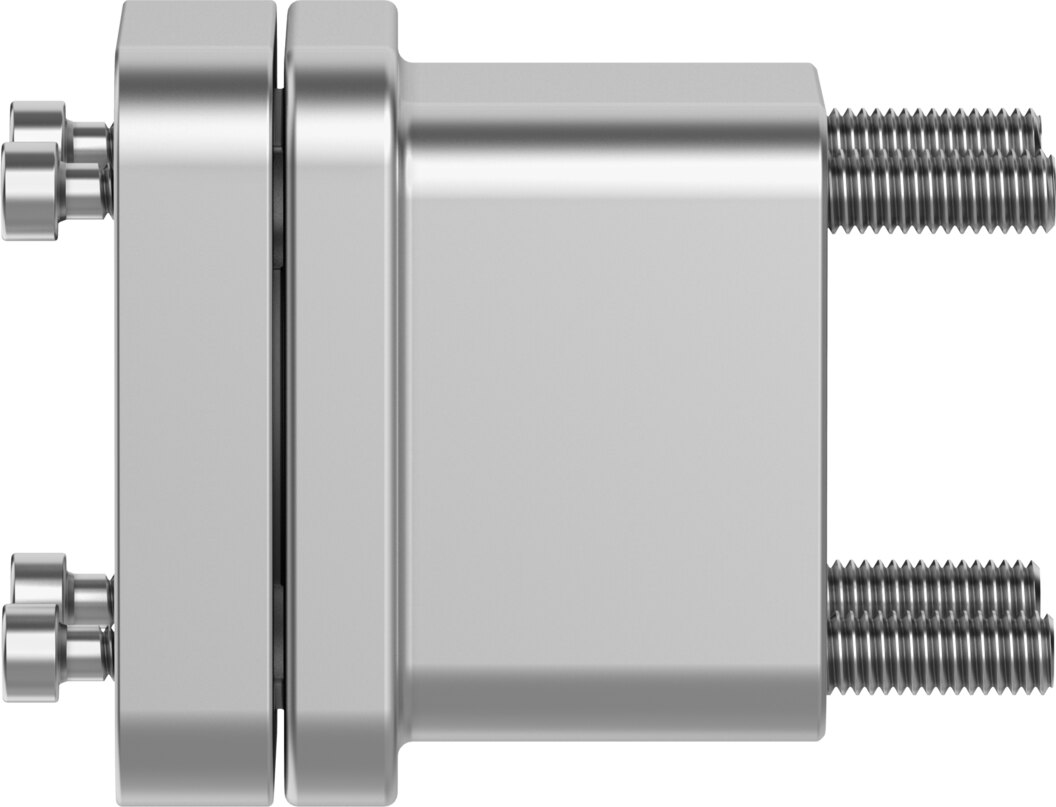

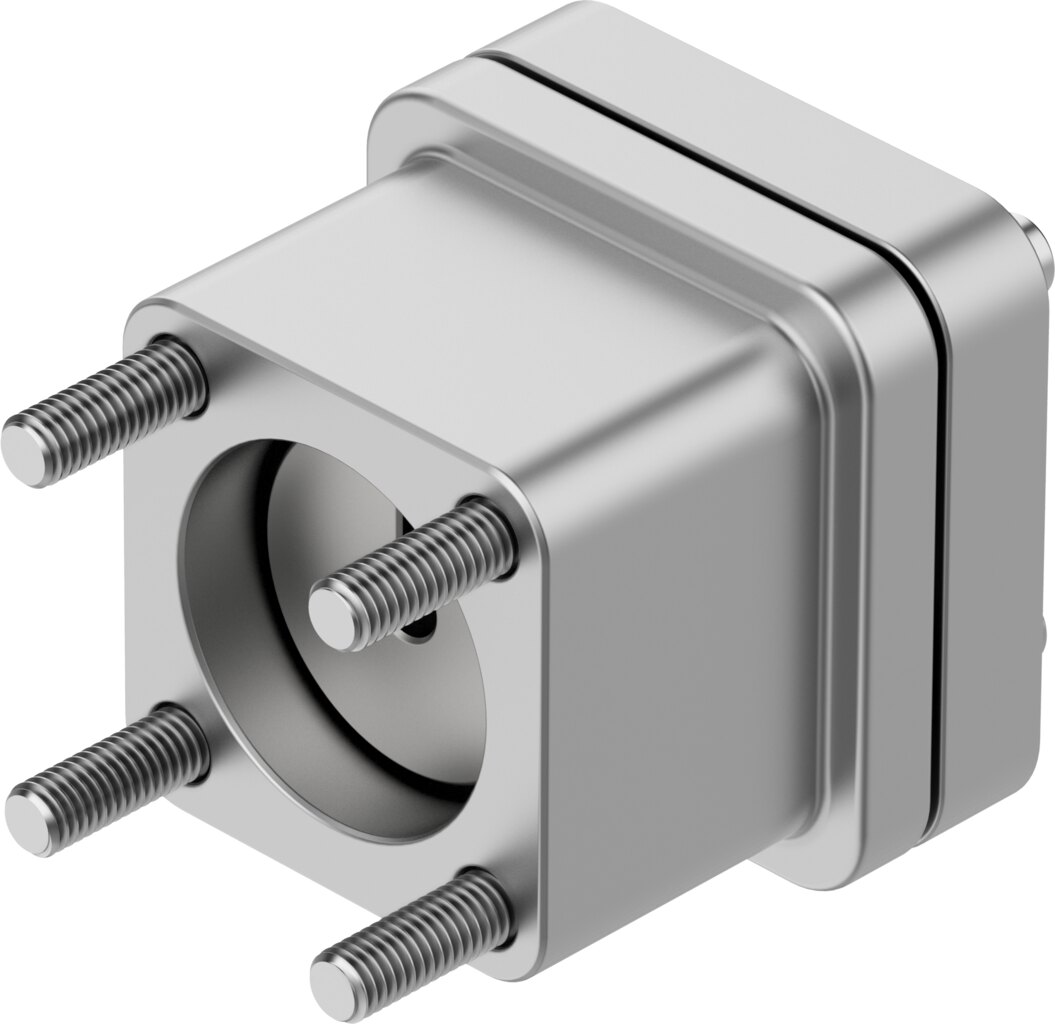

Axial kit for motor mounting, actuator D32, motor 40R, 6.5 Nm EAMM-A-D32-40R - Festo 8105826

Festo ✓ Original product Brand new

The axial kit EAMM-A-D32-40R mounts a motor with interface 40R in line with a drive carrying interface code D32. It transmits up to 6.5 Nm. Degree of protection IP40. Ambient temperature -10 to 60 °C.

Net
€193.35
excl. VAT
Item FES-8105826
Manufacturer no. EAMM-A-D32-40R
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

6.5 Nm transmittable torque, degree of protection IP40 and matching interfaces for actuator D32 and motor 40R: with the axial kit EAMM-A-D32-40R motor mounting is done without designing your own adapter.

Benefits

  • Transmittable torque 6.5 Nm between motor and drive
  • Interfaces actuator D32, motor 40R
  • Degree of protection IP40, ambient temperature -10 to 60 °C

Applications

The kit sits between motor and electric drive, for example when building handling systems, gantries and feeders. On the drive side it fits interface code D32, on the motor side 40R.

Technical data

Mounting positionAny
LABS (PWIS) conformityVDMA24364-B2-L
Storage temperature-25 to 60 °C
Relative air humidity0 - 95%
Degree of protectionIP40
Ambient temperature-10 to 60 °C
Transmittable torque6.5 Nm
Product weight309 g
Interface code, actuatorD32
Interface code, motor in40R
Note on materialsRoHS compliant
Weight0.33 kg
ManufacturerFesto
Hersteller-NrEAMM-A-D32-40R
EAN4052568550653
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP40
Temperaturbereich-10-60 °C
Temperature (max.)60
