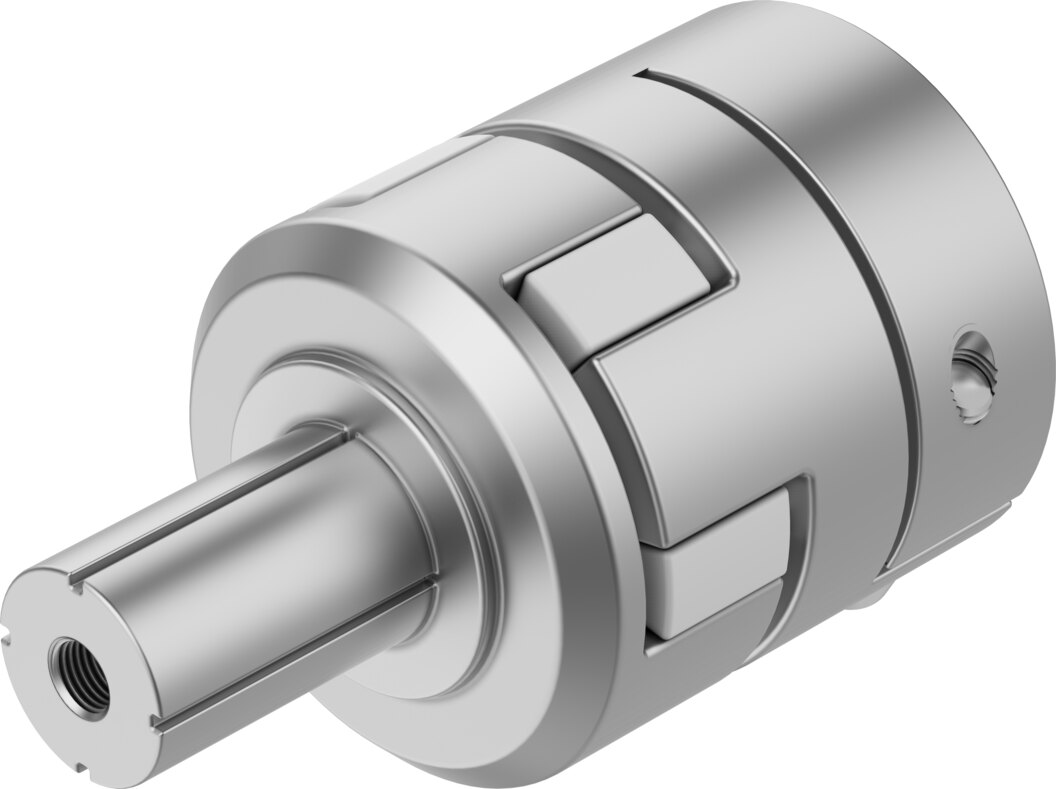

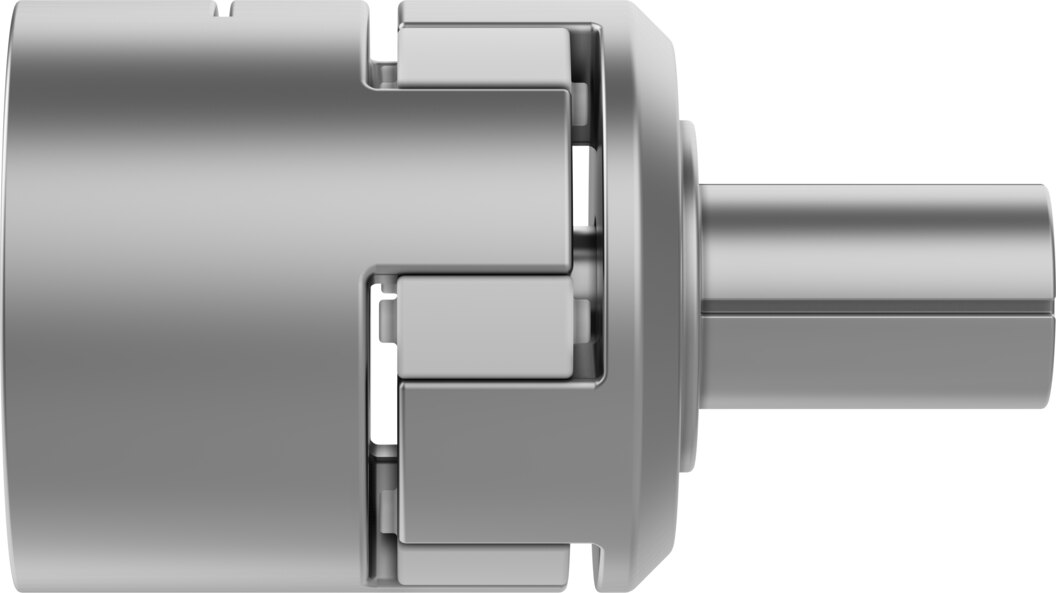

Coupling mounting Ø 19 / 16 mm, 17 Nm, size 42 EAMD-42-48-19-16X25 - Festo 8121127
The coupling EAMD-42-48-19-16X25 connects shafts with 19 mm and 16 mm diameter and transmits up to 17 Nm at a maximum of 6000 1/min. Nominal length 48 mm, mass moment of inertia 45 kgmm². Motor mounting component for Festo electric drives.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For motor mounting on electric drives, the Festo coupling EAMD-42-48-19-16X25 connects motor shaft and drive shaft. Mounting diameters of 19 mm and 16 mm, 17 Nm transmittable torque and a maximum speed of 6000 1/min determine the selection.
Benefits
- Transmittable torque 17 Nm
- Mounting Ø 19 mm and 16 mm for motor and drive shaft
- Speed up to 6000 1/min
- Mass moment of inertia 45 kgmm² for drive sizing
- Size 42, nominal length 48 mm
- Ambient temperature -25 to 60 °C, product weight 212 g
Applications
The coupling is used for motor mounting on electric axes and cylinders. Size 42, nominal length 48 mm and the two mounting diameters of 19 mm and 16 mm determine the fit.
Technical data
| Mounting diameter 1 | 19 mm |
|---|---|
| Mounting diameter 2 | 16 mm |
| Size | 42 |
| Nominal length | 48 mm |
| Mounting position | Any |
| Max. rotational speed | 6000 1/min |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Storage temperature | -25 to 60 °C |
| Relative air humidity | 0 - 95% |
| Ambient temperature | -25 to 60 °C |
| Mass moment of inertia | 45 kgmm² |
| Transmittable torque | 17 Nm |
| Product weight | 212 g |
| Note on materials | RoHS compliant |
| Weight | 0.21 kg |
| Manufacturer | Festo |
| Hersteller-Nr | EAMD-42-48-19-16X25 |
| EAN | 4052568478599 |
| Zolltarifnummer | 84836080 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Series | EAMD |
| Temperature (max.) | 60 |
