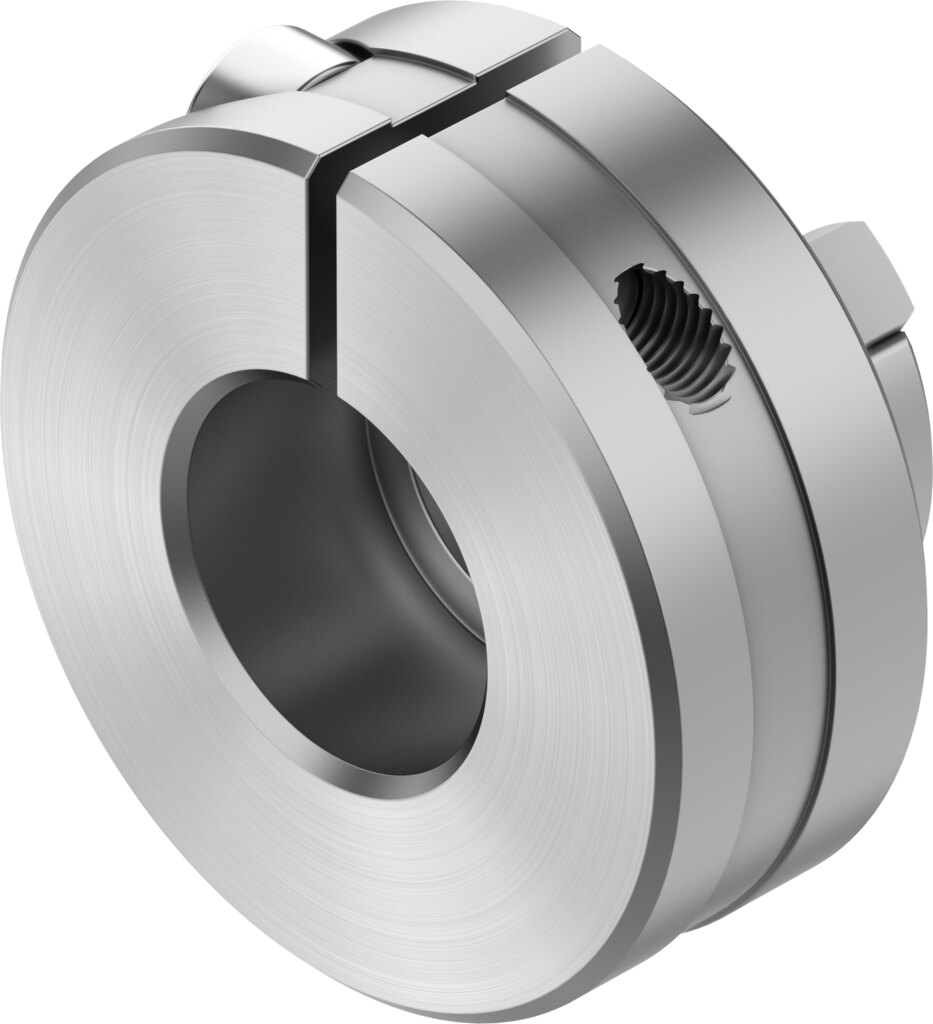

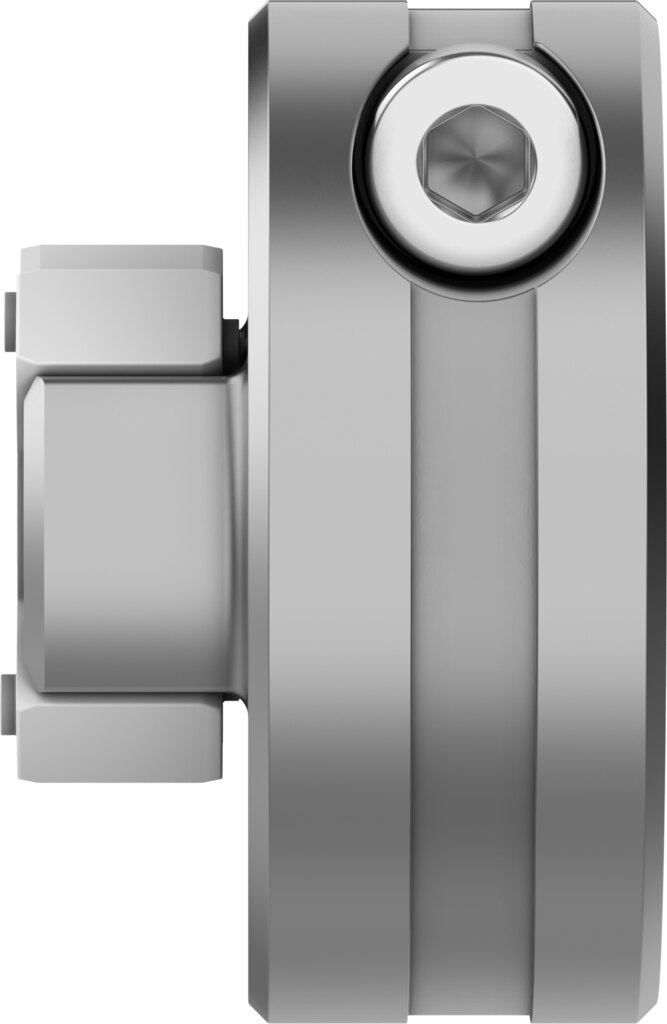

Coupling hub for motor mounting Ø 9 mm, size 15/25 EAMC-H-25-10-GB8-9 - Festo 8228651

Festo ✓ Original product Brand new

The coupling hub EAMC-H-25-10-GB8-9 lets a coupling be adapted to a different shaft diameter. The mounting diameter is 9 mm. It transmits up to 2 Nm of torque, speeds of up to 10000 1/min are permitted.

Net
€46.92
excl. VAT
Item FES-8228651
Manufacturer no. EAMC-H-25-10-GB8-9
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The coupling hub EAMC-H-25-10-GB8-9 lets a coupling be adapted to a different shaft diameter. It transmits up to 2 Nm of torque, speeds of up to 10000 1/min are permitted.

Key benefits

  • Transmittable torque 2 Nm
  • Speeds up to 10000 1/min
  • Mass moment of inertia 1.04 kgmm² for sizing the drive
  • LABS (PWIS) conform to VDMA 24364-B2-L, for paint-sensitive areas
  • Ambient temperature -25 to 60 °C
  • Any mounting position

Application

For mounting a motor to Festo electric axes. Before ordering, compare the interface codes of axis and motor with the table, so EAMC-H-25-10-GB8-9 fits without rework.

Technical data

TypeEAMC-H-25-10-GB8-9
Festo part no.8228651
Size15/25
Nominal length15.4 mm
Mounting diameter 19 mm
Transmittable torque2 Nm
Max. rotational speed10000 1/min
Mass moment of inertia1.04 kgmm²
Mounting positionAny
Ambient temperature-25 to 60 °C
Storage temperature-25 to 60 °C
Relative air humidity0 - 95 %
LABS (PWIS) conformityVDMA 24364-B2-L
Product weight13 g
Note on materialsRoHS compliant
ManufacturerFesto
Hersteller-NrEAMC-H-25-10-GB8-9
EAN4052568770006
Zolltarifnummer84839089
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMC
Bore (mm)9
Temperature (max.)60
