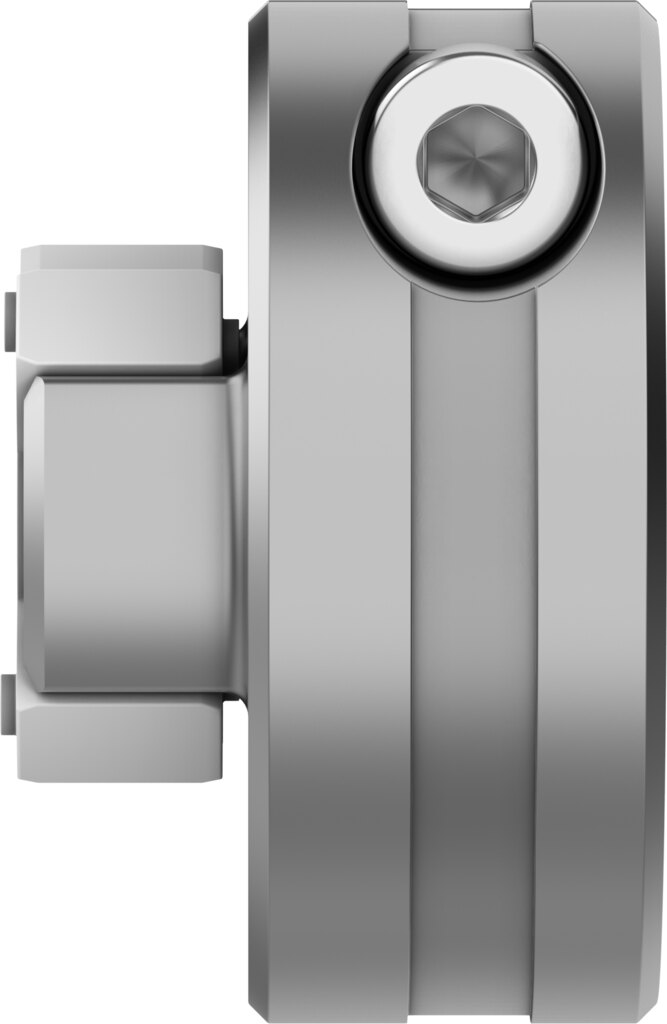

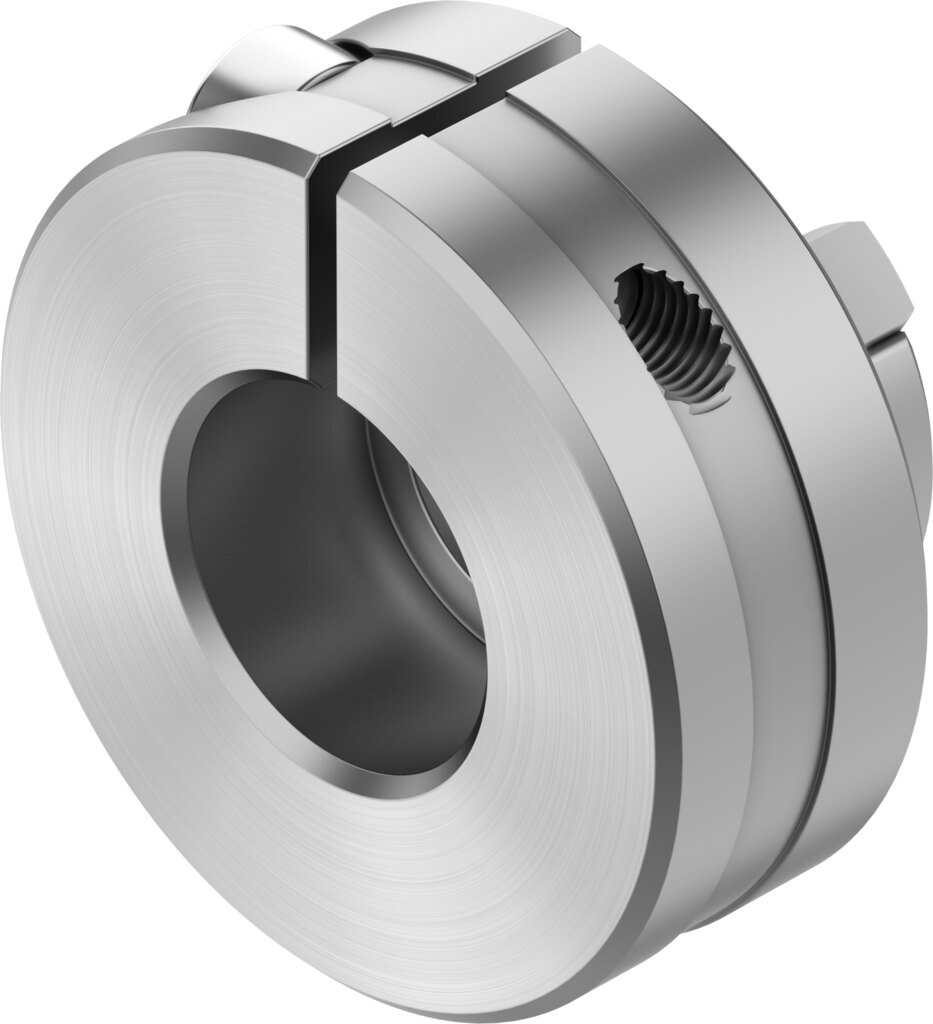

Coupling hub for motor mounting Ø 14 mm, size 15/25 EAMC-H-25-10-GB8-14 - Festo 8228653

Festo ✓ Original product Brand new

The coupling hub EAMC-H-25-10-GB8-14 lets a coupling be adapted to a different shaft diameter. The mounting diameter is 14 mm. Up to 2 Nm of torque is transmitted, speeds of up to 10000 1/min are permitted.

Net
€46.92
excl. VAT
Item FES-8228653
Manufacturer no. EAMC-H-25-10-GB8-14
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The coupling hub EAMC-H-25-10-GB8-14 lets a coupling be adapted to a different shaft diameter. Up to 2 Nm of torque is transmitted, speeds of up to 10000 1/min are permitted.

Why this part

  • Transmittable torque 2 Nm
  • Speeds up to 10000 1/min
  • Mass moment of inertia 1.04 kgmm² for sizing the drive
  • LABS (PWIS) conform to VDMA 24364-B2-L, for paint-sensitive areas
  • Ambient temperature -25 to 60 °C
  • Any mounting position

Application

Used when mounting a motor to a Festo electric axis, as original equipment or as a spare part. The table data come from Festo and apply to EAMC-H-25-10-GB8-14.

Technical data

TypeEAMC-H-25-10-GB8-14
Festo part no.8228653
Size15/25
Nominal length15.4 mm
Mounting diameter 114 mm
Transmittable torque2 Nm
Max. rotational speed10000 1/min
Mass moment of inertia1.04 kgmm²
Mounting positionAny
Ambient temperature-25 to 60 °C
Storage temperature-25 to 60 °C
Relative air humidity0 - 95 %
LABS (PWIS) conformityVDMA 24364-B2-L
Product weight11 g
Note on materialsRoHS compliant
ManufacturerFesto
Hersteller-NrEAMC-H-25-10-GB8-14
EAN4052568770020
Zolltarifnummer84839089
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMC
Bore (mm)14
Temperature (max.)60
