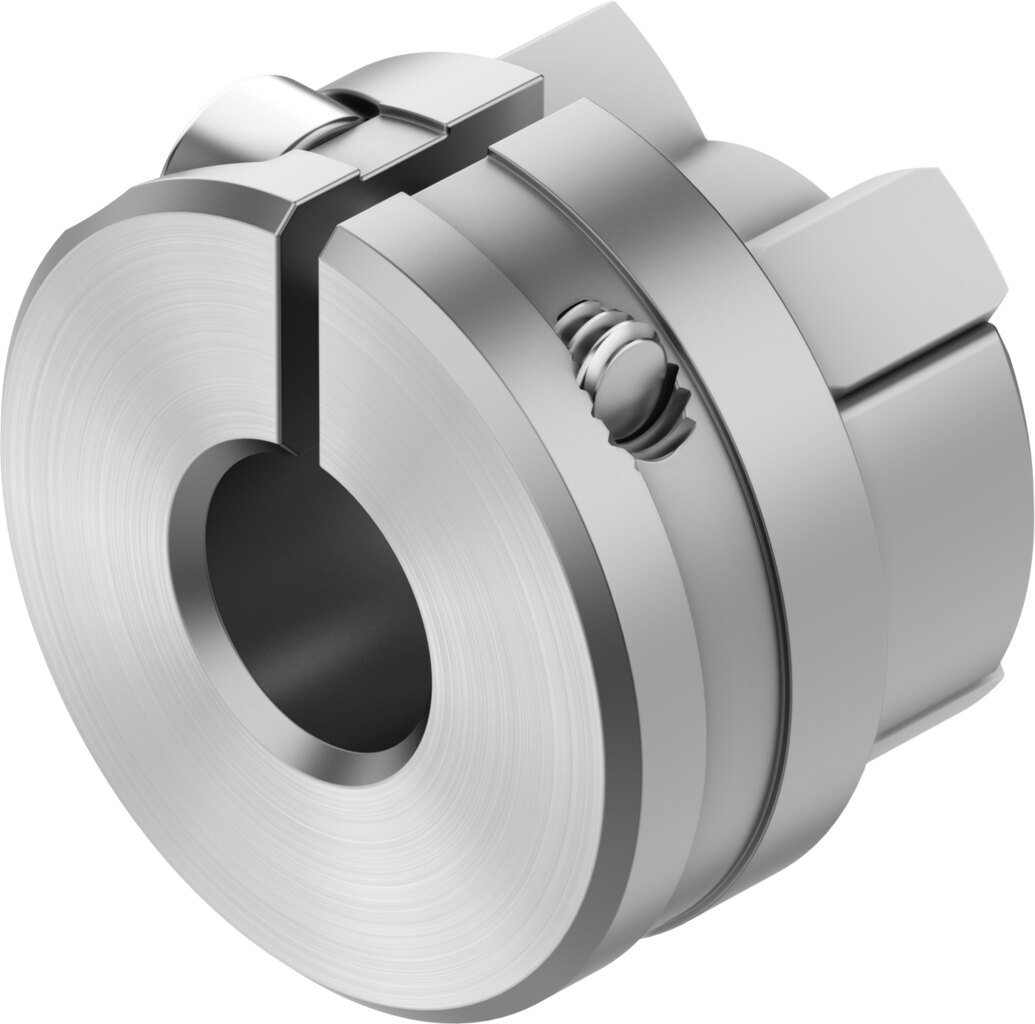

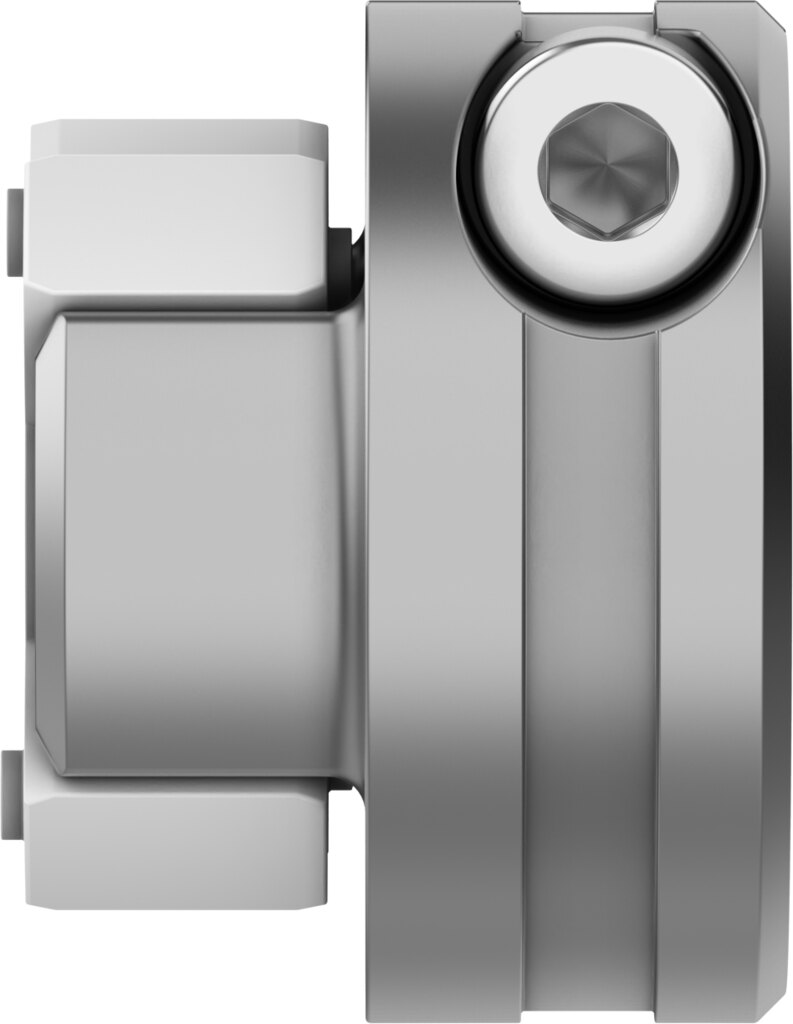

Coupling hub for motor mounting Ø 8 mm, size 15 EAMC-H-15-7-GB8-8 - Festo 8228650
The coupling hub EAMC-H-15-7-GB8-8 is the shaft-side half of the coupling used for motor mounting. The mounting diameter is 8 mm. The transmittable torque is 2 Nm, the part is rated for up to 10000 1/min.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The coupling hub EAMC-H-15-7-GB8-8 is the shaft-side half of the coupling used for motor mounting. The transmittable torque is 2 Nm, the part is rated for up to 10000 1/min.
Benefits
- Transmittable torque 2 Nm
- Speeds up to 10000 1/min
- Mass moment of inertia 0.191 kgmm² for sizing the drive
- LABS (PWIS) conform to VDMA 24364-B2-L, for paint-sensitive areas
- Ambient temperature -25 to 60 °C
- Any mounting position
Application
Used when mounting a motor to a Festo electric axis, as original equipment or as a spare part. The table data come from Festo and apply to EAMC-H-15-7-GB8-8.
Technical data
| Type | EAMC-H-15-7-GB8-8 |
|---|---|
| Festo part no. | 8228650 |
| Size | 15 |
| Nominal length | 12.4 mm |
| Mounting diameter 1 | 8 mm |
| Transmittable torque | 2 Nm |
| Max. rotational speed | 10000 1/min |
| Mass moment of inertia | 0.191 kgmm² |
| Mounting position | Any |
| Ambient temperature | -25 to 60 °C |
| Storage temperature | -25 to 60 °C |
| Relative air humidity | 0 - 95 % |
| LABS (PWIS) conformity | VDMA 24364-B2-L |
| Product weight | 4 g |
| Note on materials | RoHS compliant |
| Weight | 0.007 kg |
| Manufacturer | Festo |
| Hersteller-Nr | EAMC-H-15-7-GB8-8 |
| EAN | 4052568769390 |
| Zolltarifnummer | 84839089 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Series | EAMC |
| Bore (mm) | 8 |
| Temperature (max.) | 60 |
