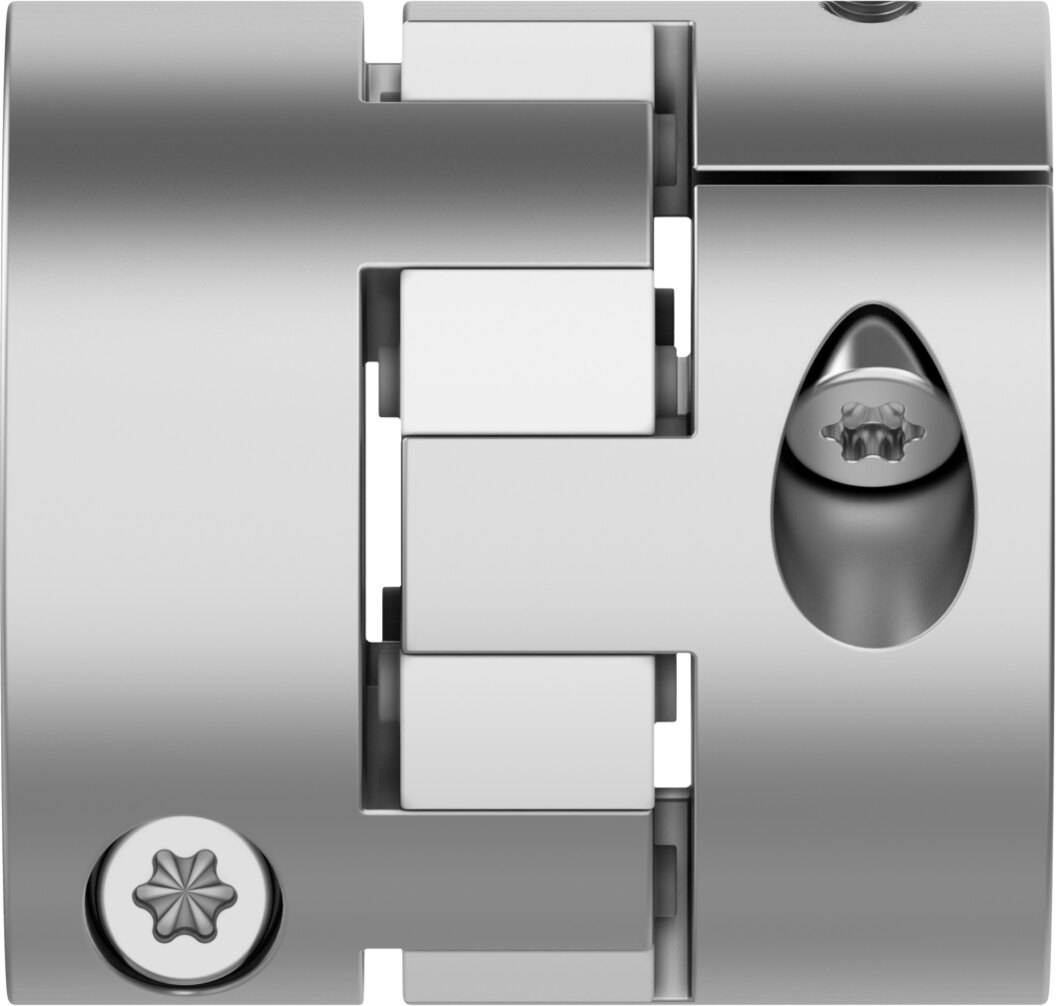

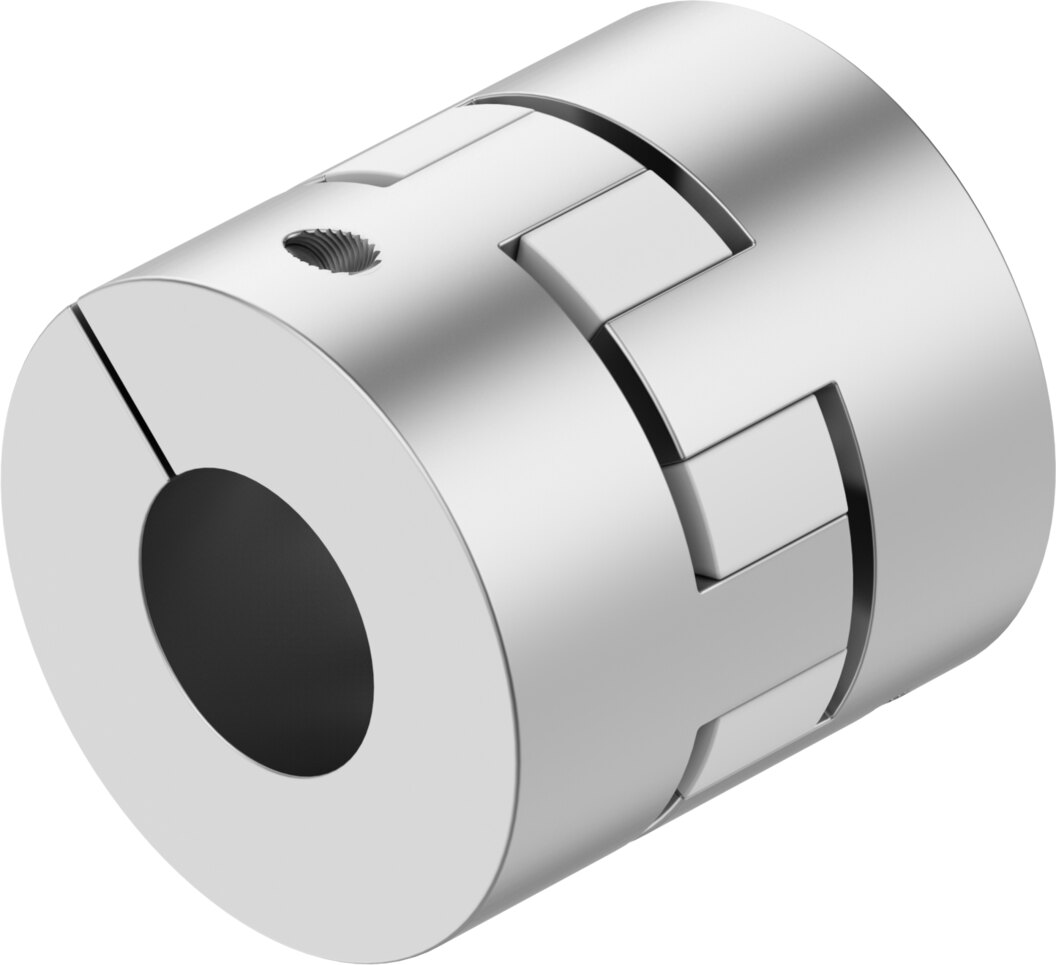

Coupling for motor mounting Ø 20/25 mm, 75 Nm EAMC-56-58-20-25-U - Festo 8203734

Festo ✓ Original product Brand new

The coupling EAMC-56-58-20-25-U transmits torque from the motor to the drive shaft of the axis. The mounting diameters are 20 mm and 25 mm. Up to 75 Nm of torque is transmitted, the part is rated for up to 5500 1/min.

Net
€99.70
excl. VAT
Item FES-8203734
Manufacturer no. EAMC-56-58-20-25-U
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The coupling EAMC-56-58-20-25-U transmits torque from the motor to the drive shaft of the axis. Up to 75 Nm of torque is transmitted, the part is rated for up to 5500 1/min.

Benefits

  • Transmittable torque 75 Nm
  • Speeds up to 5500 1/min
  • Mass moment of inertia 128 kgmm² for sizing the drive
  • LABS (PWIS) conform to VDMA 24364-B2-L, for paint-sensitive areas
  • Ambient temperature -25 to 60 °C
  • Any mounting position

Application

Typical in machine building and handling, wherever a motor is connected to an electric axis. The values in the table are decisive for selection and apply to EAMC-56-58-20-25-U.

Technical data

TypeEAMC-56-58-20-25-U
Festo part no.8203734
Size56
Nominal length58 mm
Mounting diameter 120 mm
Mounting diameter 225 mm
Transmittable torque75 Nm
Max. rotational speed5500 1/min
Mass moment of inertia128 kgmm²
Mounting positionAny
Ambient temperature-25 to 60 °C
Storage temperature-25 to 60 °C
Relative air humidity0 - 95 %
LABS (PWIS) conformityVDMA 24364-B2-L
Product weight275 g
Note on materialsRoHS compliant
Weight0.34 kg
ManufacturerFesto
Hersteller-NrEAMC-56-58-20-25-U
EAN4052568647728
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMC
Bore (mm)20
Temperature (max.)60
