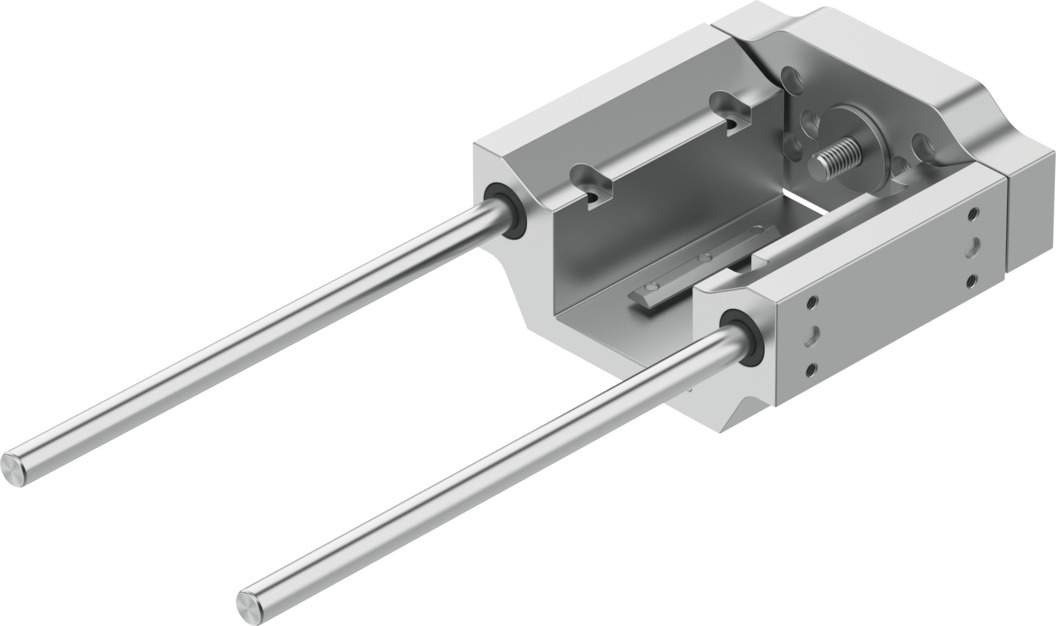

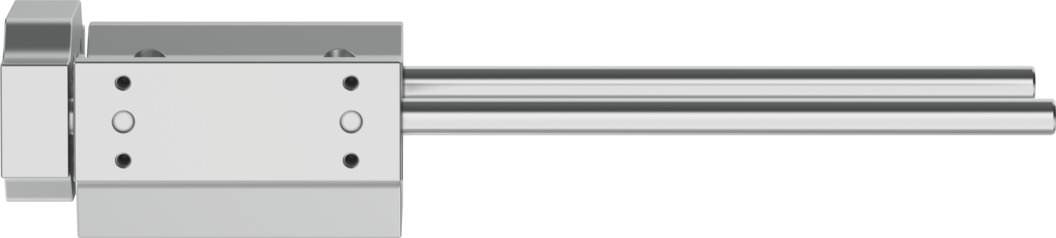

Guide unit EAGF-P2-KF-60-300 - Festo 8158031
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Size | 60 |
|---|---|
| Stroke | 300 mm |
| Reversing backlash theoretical | 0 µm |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | Guidance |
| Max. acceleration | 25 m/s² |
| Max. speed | 1 m/s |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Degree of protection | IP40 |
| Ambient temperature | 0 ... 60 °C |
| Max. force Fy | 380 N |
| Max. force Fy static | 510 N |
| Max. force Fz | 380 N |
| Max. force Fz static | 510 N |
| Max. moment Mx | 20 Nm |
| Max. torque Mx static | 27 Nm |
| Max. moment My | 15 Nm |
| Max. torque My static | 20 Nm |
| Max. moment Mz | 15 Nm |
| Max. torque Mz static | 20 Nm |
| Displacement force | 3 N |
| Moving mass for 0 mm stroke | 583 g |
| Basic weight for 0 mm stroke | 1614 g |
| Additional weight per 10 mm stroke | 17.8 g |
| Additional moving mass per 10 mm stroke | 17.8 g |
| Centre of gravity at 0 mm stroke | 31 mm |
| Centre of gravity additional of moving mass per 10 mm | 4.3 mm |
| Type of mounting | With female thread |
| Note on materials | RoHS compliant |
| Material guide component | Tempered steel, Hard chrome-plated |
| Material housing | anodised |
| Material yoke plate | Wrought aluminium alloy, anodised |
| Weight | 2.2 kg |
| Manufacturer | Festo |
| Hersteller-Nr | EAGF-P2-KF-60-300 |
| EAN | 4052568605490 |
| Zolltarifnummer | 84821090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
