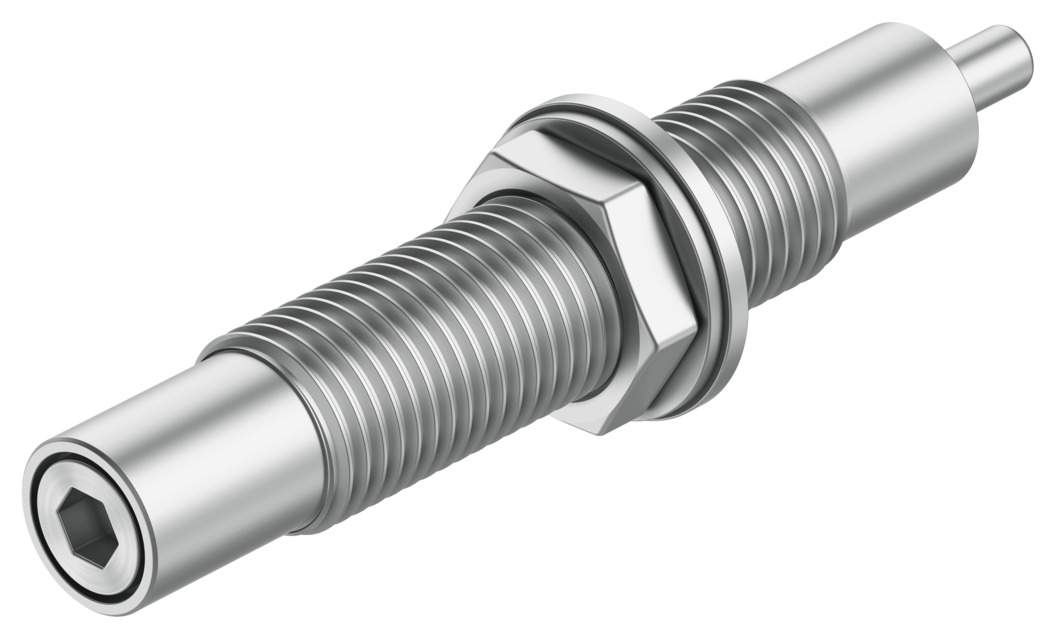

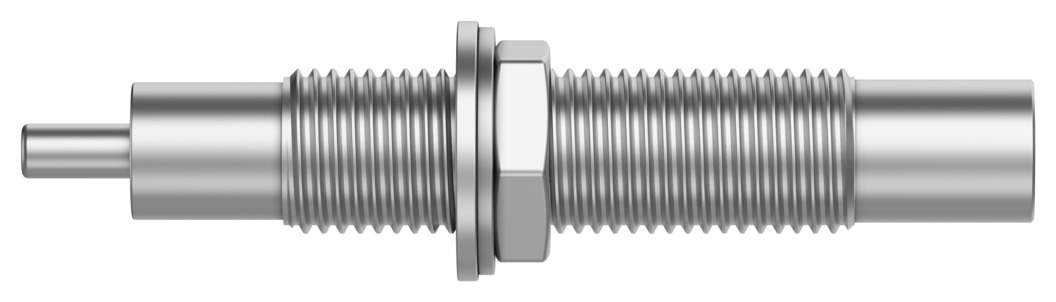

Shock absorber, self-adjusting, size 8, stroke 8 mm, 4 J per stroke DYSD-Q11-8-8-Y1F-S-Y14 - Festo 8161524

Where slides, grippers or workpiece carriers would otherwise run unbraked into the end position, the DYSD-Q11-8-8-Y1F-S-Y14 converts up to 4 J per stroke into heat. The self-adjusting cushioning of the DYSD-Q11-8-8-Y1F-S-Y14 adapts to changing masses and speeds without readjustment.

Benefits

• Energy absorption up to 4 J per stroke and 18000 J per hour
• Impact speed up to 1 m/s
• Stop force up to 500 N, residual energy max. 0.02 J
• Return time 0.2 s, return force 18 N
• Mounting with lock nut, size 8
• Housing in high-alloy steel, CRC 2

Applications

Typical locations are end positions of slides, cylinders and handling axes as well as stops in conveyor systems. The DYSD-Q11-8-8-Y1F-S-Y14 is rated for 0 to 60 °C ambient temperature, any mounting position.
