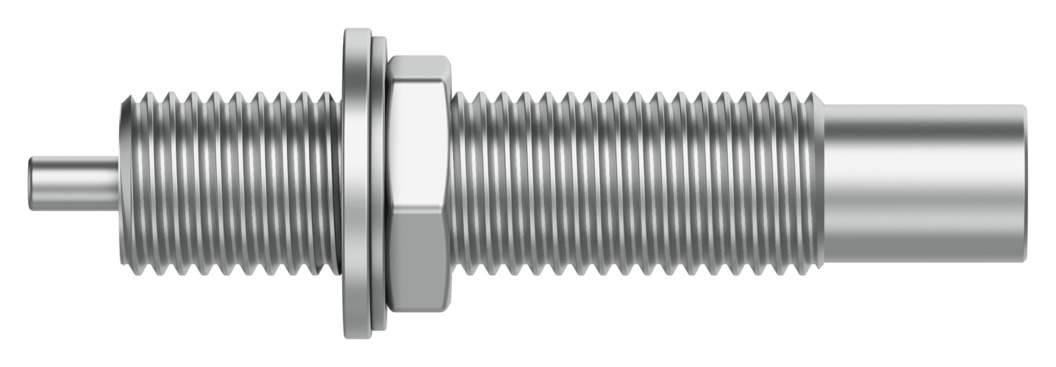

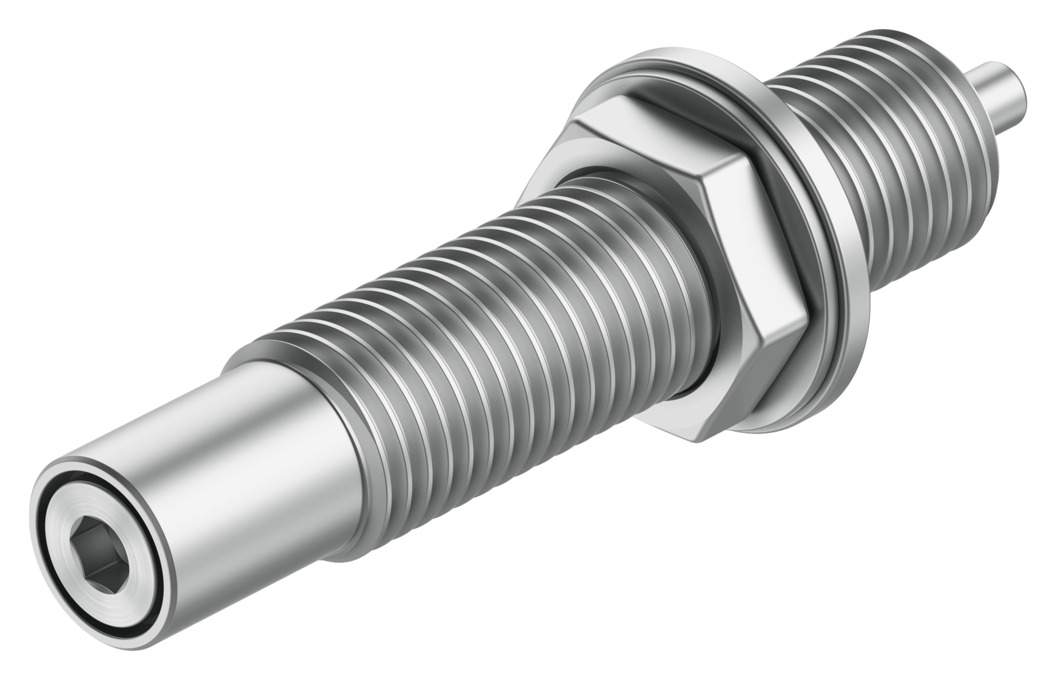

Shock absorber, self-adjusting, size 7, stroke 5 mm, 3 J per stroke DYSD-Q11-7-5-Y1F-L-Y9 - Festo 8161521

The DYSD-Q11-7-5-Y1F-L-Y9 absorbs up to 3 J per stroke and 12000 J per hour, protecting drives, stops and workpieces from hard end-position impacts. No adjustment is needed on the DYSD in size 7 because the cushioning adapts itself to the load.

Benefits

• Energy absorption up to 3 J per stroke and 12000 J per hour
• Impact speed up to 1 m/s
• Stop force up to 300 N, residual energy max. 0.01 J
• Return time 0.2 s, return force 12 N
• Mounting with lock nut, size 7
• Housing in high-alloy steel, CRC 2

Applications

The absorber sits at end stops of linear and swivel motions and protects both the mechanism and the workpiece. The DYSD-Q11-7-5-Y1F-L-Y9 is rated for 0 to 60 °C ambient temperature, any mounting position.
