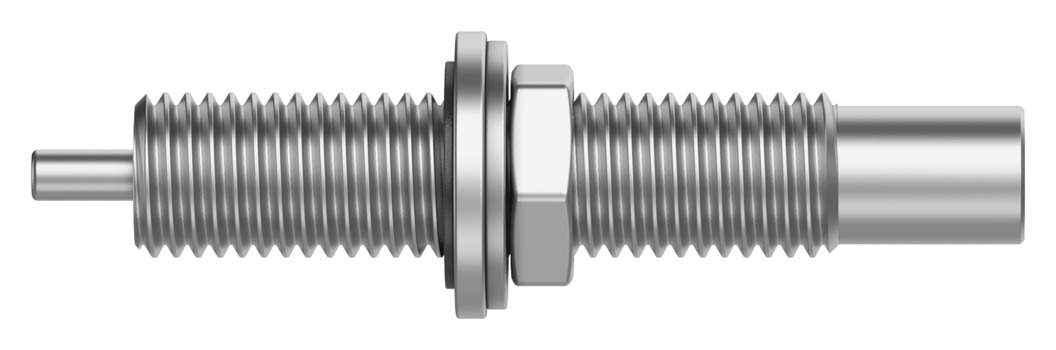

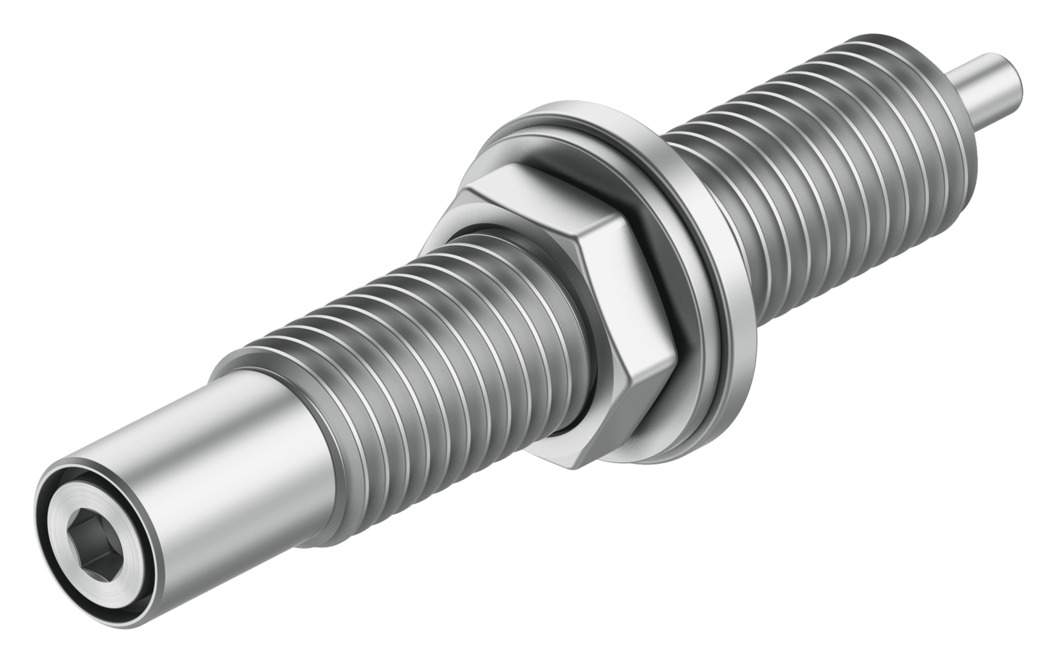

Shock absorber DYSD-Q11-5-5-Y1F-L-Y9 - Festo 8161520
Net
excl. VAT
€132.03
Item
FES-8161520
Manufacturer no.
DYSD-Q11-5-5-Y1F-L-Y9
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Size | 5 |
|---|---|
| Stroke | 5 mm |
| Cushioning | Self-adjusting |
| Mounting position | Any |
| Position detection | None |
| Max. impact speed | 1 m/s |
| Reset time at room temperature | 0.2 s |
| Mode of operation | Pushing, Single-acting |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | 0 ... 60 °C |
| Cushioning length | 5 mm |
| Max. stop force | 200 N |
| Max. energy consumption per stroke | 2 J |
| Max. energy consumption per hour | 8000 J |
| Max. residual energy | 0.01 J |
| Reset force | 7 N |
| Min. insertion force | 27 N |
| Product weight | 10 g |
| Type of mounting | Via lock nut |
| Note on materials | RoHS compliant |
| Material seals | NBR |
| Material housing | High-alloy steel |
| Material piston rod | High-alloy steel |
| Material nut | Galvanised steel |
| Weight | 0.019 kg |
| Manufacturer | Festo |
| Hersteller-Nr | DYSD-Q11-5-5-Y1F-L-Y9 |
| EAN | 4052568596880 |
| Zolltarifnummer | 84879059 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
