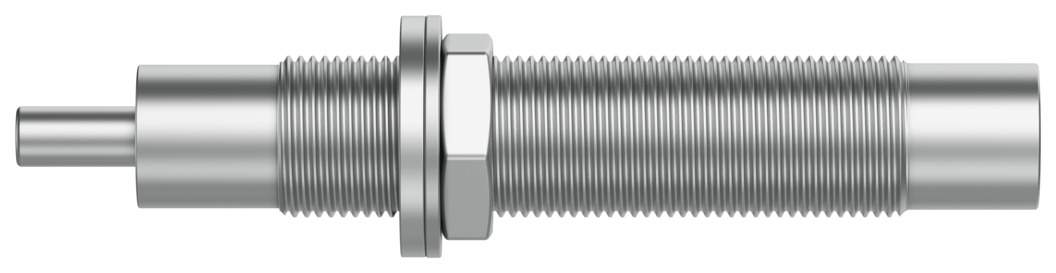

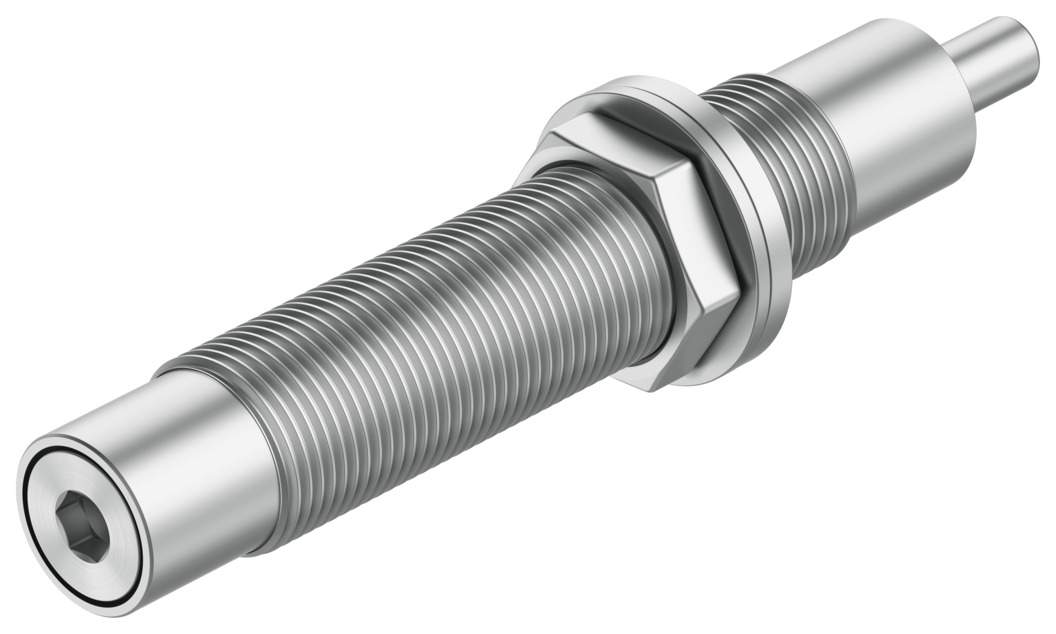

Shock absorber, self-adjusting, size 12, stroke 12 mm, 10 J per stroke DYSD-Q11-12-12-Y1F-Y9 - Festo 8161525

The DYSD-Q11-12-12-Y1F-Y9 absorbs up to 10 J per stroke and 36000 J per hour, protecting drives, stops and workpieces from hard end-position impacts. The self-adjusting cushioning of the DYSD-Q11-12-12-Y1F-Y9 adapts to changing masses and speeds without readjustment.

Benefits

• Energy absorption up to 10 J per stroke and 36000 J per hour
• Impact speed up to 1 m/s
• Stop force up to 1000 N, residual energy max. 0.05 J
• Return time 0.2 s, return force 28 N
• Mounting with lock nut, size 12
• Housing in galvanised steel, CRC 2

Applications

The DYSD is used on linear axes, rotary actuators, grippers and stops where masses should come to rest at the end of stroke without rebound. The DYSD-Q11-12-12-Y1F-Y9 is rated for 0 to 60 °C ambient temperature, any mounting position.
