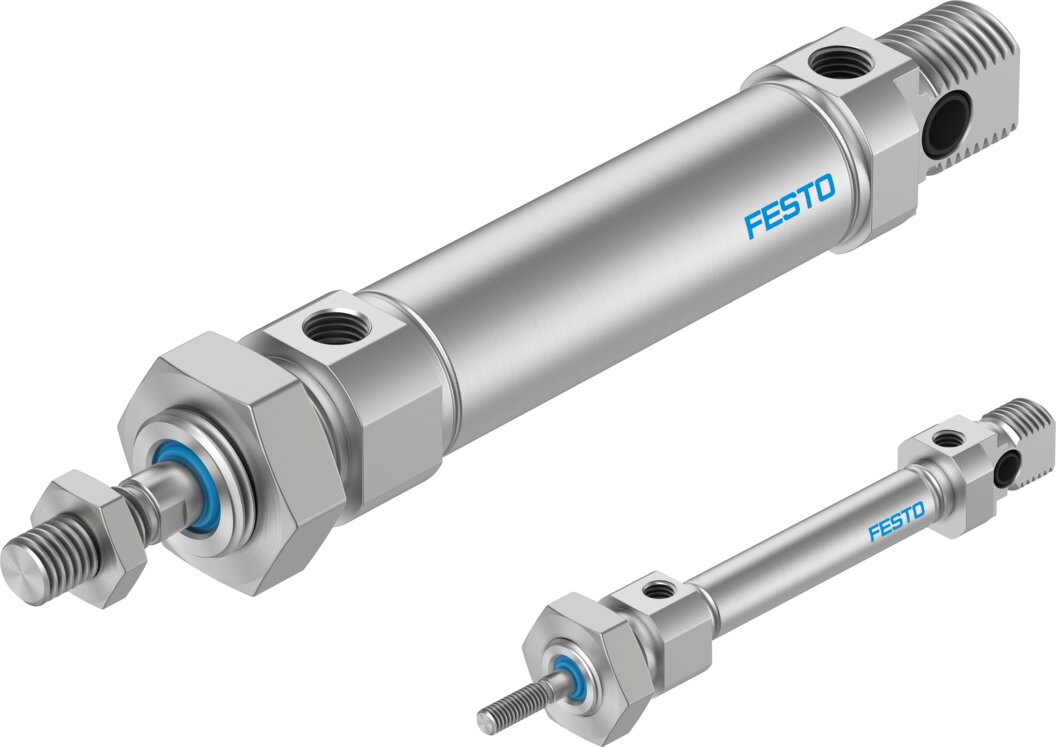

Double-acting round cylinder Ø 8 mm stroke 15 mm DSNU-S-8-15-P-A-MQ - Festo 5205898

For 15 mm of travel, the round cylinder DSNU-S-8-15-P-A-MQ with a Ø 8 mm piston produces a theoretical force of 30.2 N at 6 bar. The piston is prepared for proximity switches, the air port is M5.

Benefits at a glance

• 30.2 N advance and 22.6 N return force at 6 bar
• Elastic end-position cushioning P at both ends, up to 0.03 J
• End positions can be sensed with proximity switches
• Cylinder barrel and piston rod in high-alloy stainless steel
• Port M5, rod thread M4
• LABS (PWIS) conformity VDMA24364-B2-L

Use

The slim round cylinder fits fixtures, test stations and handling modules where a Ø 8 mm piston and 15 mm stroke are sufficient. The operating medium for the DSNU-S-8-15-P-A-MQ is compressed air to ISO 8573-1:2010 [7:4:4].
