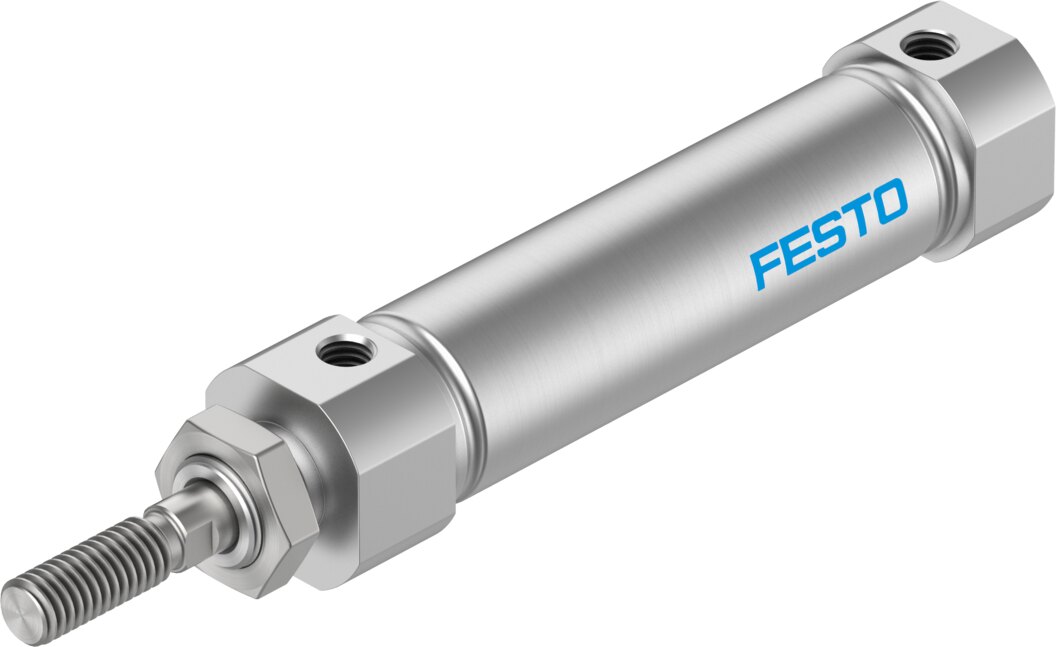

Round cylinder, double-acting, Ø 16 mm, stroke 40 mm DSNU-S-16-40-P-A-MQ - Festo 5216093

The Festo round cylinder DSNU-S-16-40-P-A-MQ is double-acting with a piston Ø of 16 mm and 40 mm stroke and pushes with 120.6 N at 6 bar. Elastic cushioning rings at both ends absorb the piston in the end positions.

Benefits

• Theoretical force at 6 bar: 120.6 N advance, 103.7 N return
• Cylinder barrel and piston rod in high-alloy stainless steel
• Elastic cushioning rings at both ends (P), permissible impact energy 0.15 J
• Cleanroom-suitable, class 5 to ISO 14644-1
• Air connection M5, piston rod thread M6
• Operating pressure 0.8 to 10 bar

Applications

In fixtures, test stations and special machines the DSNU-S-16-40-P-A-MQ moves workpieces and flaps over 40 mm. The DSNU-S-16-40-P-A-MQ is mounted with DSNU series mounting accessories. For load coupling the piston rod carries the thread M6, matching accessories for piston Ø 16 mm.
