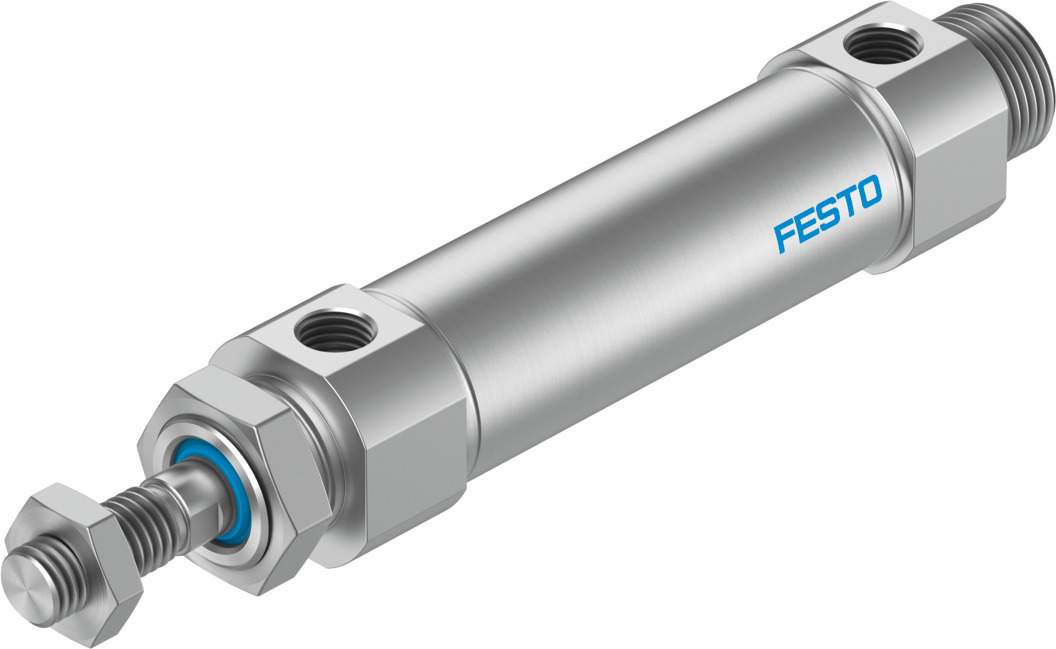

Round cylinder, double-acting, Ø 16 mm, stroke 25 mm DSNU-S-16-25-P-A-MQ - Festo 5216090

With its compact round design the DSNU-S-16-25-P-A-MQ delivers 25 mm of stroke and reaches 120.6 N on advance at 6 bar with a piston Ø of 16 mm and 103.7 N on return. On the DSNU-S-16-25-P-A-MQ, barrel and piston rod are made of high-alloy stainless steel (CRC 2).

Benefits

• Theoretical force at 6 bar: 120.6 N advance, 103.7 N return
• Elastic cushioning rings at both ends (P), permissible impact energy 0.15 J
• Cleanroom-suitable, class 5 to ISO 14644-1
• Cylinder barrel and piston rod in high-alloy stainless steel
• Prepared for proximity switches to sense the end positions
• Air connection M5, piston rod thread M6

Applications

The DSNU-S-16-25-P-A-MQ suits stopping, sorting and feeding tasks where 25 mm stroke and a piston Ø of 16 mm are sufficient. Rod eyes and couplings screw onto the M6 piston rod thread, the stroke is 25 mm.
