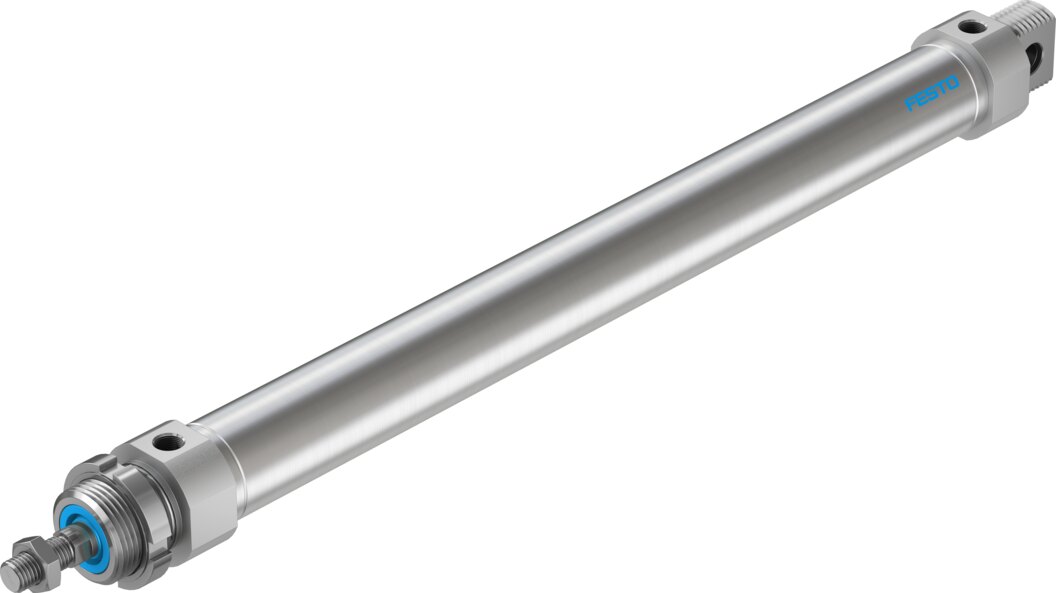

Round cylinder, double-acting, Ø 40 mm, stroke 500 mm DSNU-40-500-PPS-A - Festo 583209

752.9 N advancing force at 6 bar, 500 mm stroke and a piston Ø of 40 mm: these are the key values of the round cylinder DSNU-40-500-PPS-A. The pneumatic end-position cushioning PPS adjusts itself, so no readjustment is needed.

Benefits

• Piston Ø 40 mm and stroke 500 mm, defined by the order code DSNU-40-500-PPS-A
• Theoretical force at 6 bar: 752.9 N advance, 633.3 N return
• Self-adjusting pneumatic end-position cushioning PPS, cushioning length 18 mm
• Cylinder barrel in high-alloy stainless steel
• Operating pressure 1 to 10 bar
• Prepared for proximity switches to sense the end positions (code A in the type)

Applications

In fixtures, test stations and special machines the DSNU-40-500-PPS-A moves workpieces and flaps over 500 mm. The DSNU-40-500-PPS-A is mounted with DSNU series mounting accessories. Rod eyes and couplings screw onto the M12x1.25 piston rod thread, the stroke is 500 mm. For replacement please compare the type DSNU-40-500-PPS-A with the installed cylinder.
