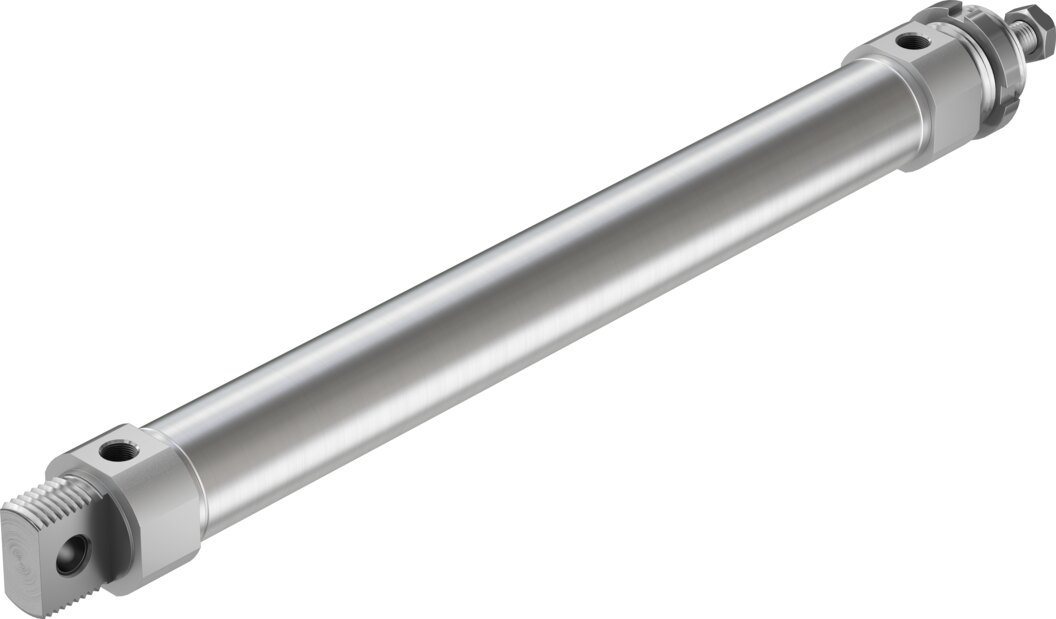

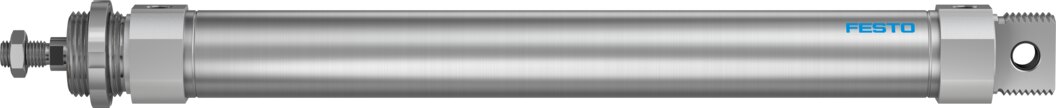

Round cylinder, double-acting, Ø 40 mm, stroke 300 mm DSNU-40-300-PPV-A - Festo 575430

752.9 N advancing force at 6 bar, 300 mm stroke and a piston Ø of 40 mm: these are the key values of the round cylinder DSNU-40-300-PPV-A. The pneumatic end-position cushioning PPV can be adjusted at both ends.

Benefits

• Theoretical force at 6 bar: 752.9 N advance, 633.3 N return
• Piston Ø 40 mm and stroke 300 mm, defined by the order code DSNU-40-300-PPV-A
• Cylinder barrel in high-alloy stainless steel
• Pneumatic end-position cushioning PPV, adjustable at both ends, cushioning length 18 mm
• Air connection G1/4, piston rod thread M12x1.25
• Prepared for proximity switches to sense the end positions (code A in the type)

Applications

In fixtures, test stations and special machines the DSNU-40-300-PPV-A moves workpieces and flaps over 300 mm. The DSNU-40-300-PPV-A is mounted with DSNU series mounting accessories. Rod eyes and couplings screw onto the M12x1.25 piston rod thread, the stroke is 300 mm. For replacement please compare the type DSNU-40-300-PPV-A with the installed cylinder.
