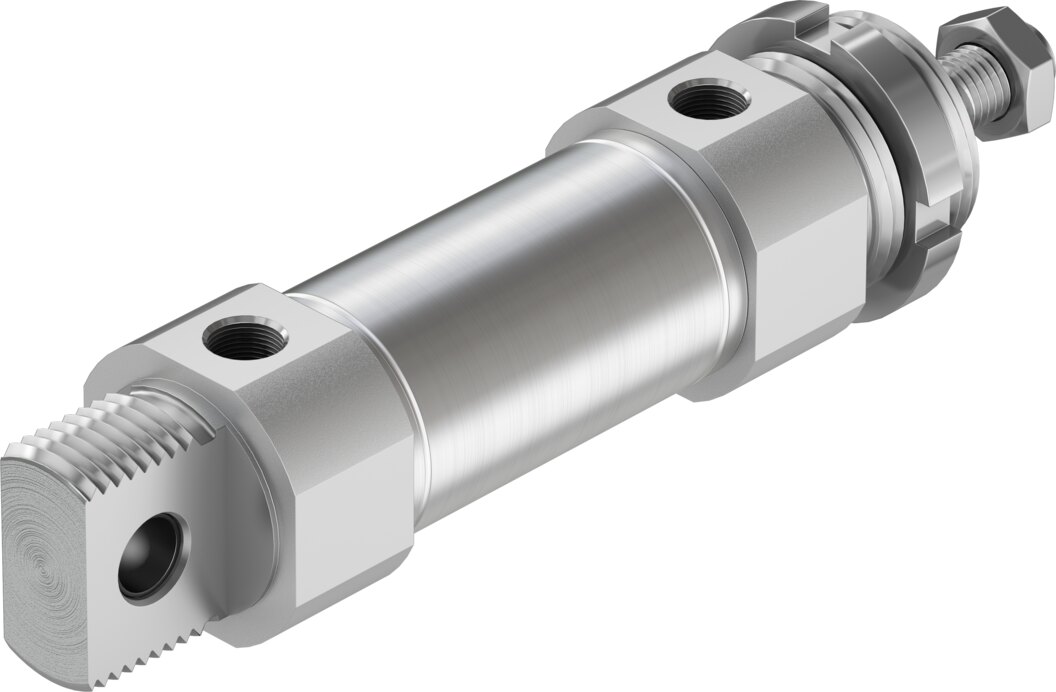

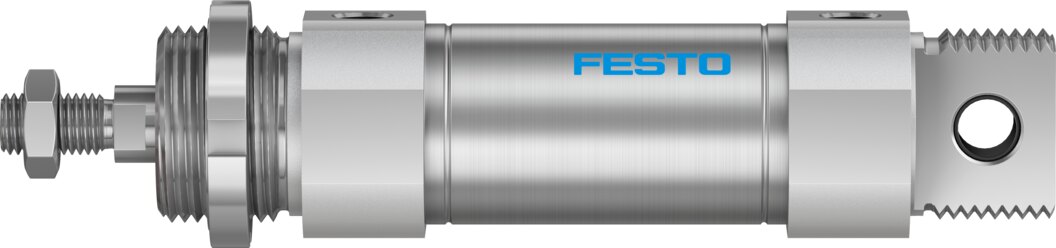

Round cylinder, double-acting, Ø 40 mm, stroke 30 mm DSNU-40-30-P-A - Festo 5262532

With its compact round design the DSNU-40-30-P-A delivers 30 mm of stroke and reaches 752.9 N on advance at 6 bar with a piston Ø of 40 mm and 633.3 N on return. Elastic cushioning rings at both ends absorb the piston in the end positions.

Benefits

• Theoretical force at 6 bar: 752.9 N advance, 633.3 N return
• Elastic cushioning rings at both ends (P), permissible impact energy 0.7 J
• Cylinder barrel in high-alloy stainless steel
• Prepared for proximity switches to sense the end positions
• Operating pressure 1 to 10 bar
• Air connection G1/4, piston rod thread M12x1.25

Applications

In fixtures, test stations and special machines the DSNU-40-30-P-A moves workpieces and flaps over 30 mm. The DSNU-40-30-P-A is mounted with DSNU series mounting accessories. For load coupling the piston rod carries the thread M12x1.25, matching accessories for piston Ø 40 mm.
