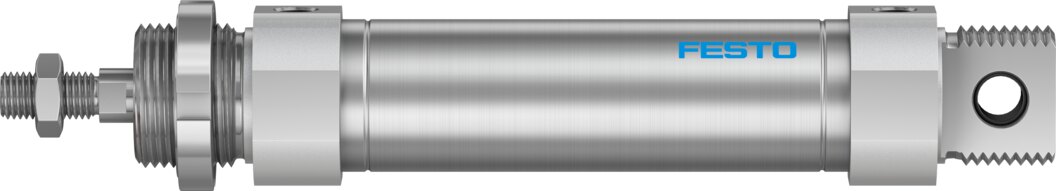

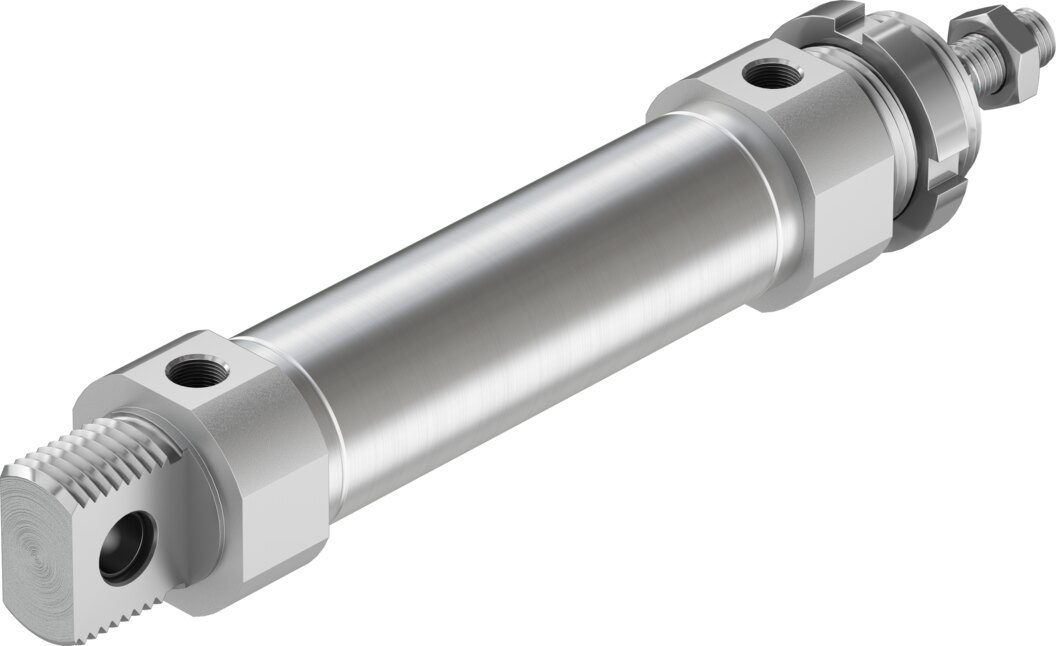

Round cylinder, double-acting, Ø 32 mm, stroke 70 mm DSNU-32-70-PPS-A - Festo 589513

The Festo round cylinder DSNU-32-70-PPS-A is double-acting with a piston Ø of 32 mm and 70 mm stroke and pushes with 482.5 N at 6 bar. The end positions can be sensed with proximity switches.

Benefits

• Piston Ø 32 mm and stroke 70 mm, defined by the order code DSNU-32-70-PPS-A
• Theoretical force at 6 bar: 482.5 N advance, 415 N return
• Cylinder barrel in high-alloy stainless steel
• Self-adjusting pneumatic end-position cushioning PPS, cushioning length 14 mm
• Air connection G1/8, piston rod thread M10x1.25
• Prepared for proximity switches to sense the end positions (code A in the type)

Applications

In fixtures, test stations and special machines the DSNU-32-70-PPS-A moves workpieces and flaps over 70 mm. The DSNU-32-70-PPS-A is mounted with DSNU series mounting accessories. The M10x1.25 piston rod thread on the DSNU-32-70-PPS-A takes the matching rod-end accessories. For replacement please compare the type DSNU-32-70-PPS-A with the installed cylinder.
