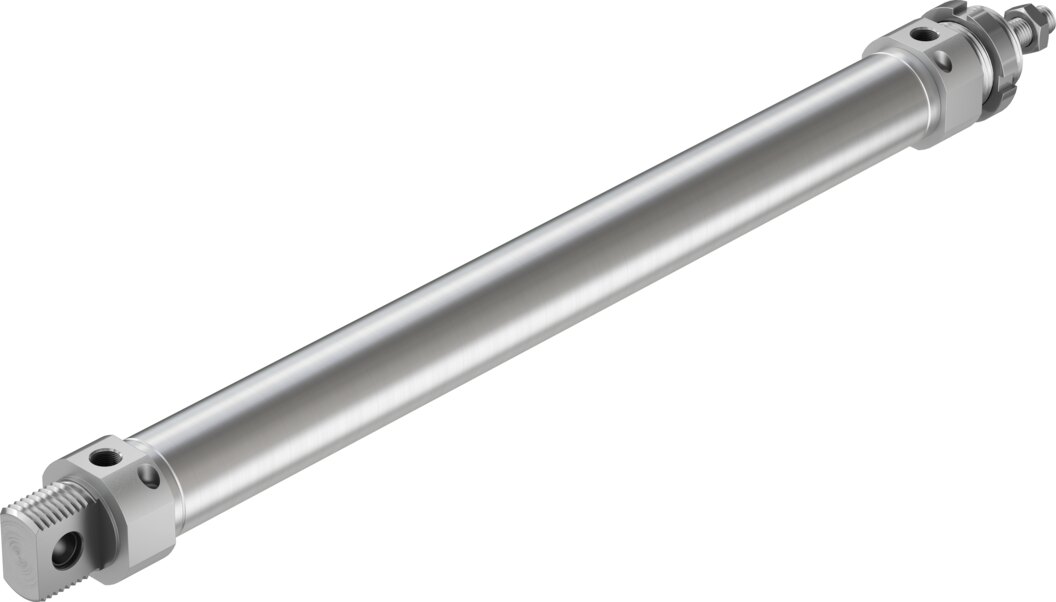

Round cylinder, double-acting, Ø 32 mm, stroke 300 mm DSNU-32-300-PPV-A - Festo 5249856

With its compact round design the DSNU-32-300-PPV-A delivers 300 mm of stroke and reaches 482.5 N on advance at 6 bar with a piston Ø of 32 mm and 415 N on return. The pneumatic end-position cushioning PPV can be adjusted at both ends.

Benefits

• Theoretical force at 6 bar: 482.5 N advance, 415 N return
• Pneumatic end-position cushioning PPV, adjustable at both ends, cushioning length 14 mm
• Cleanroom-suitable, class 6 to ISO 14644-1
• Cylinder barrel in high-alloy stainless steel
• Air connection G1/8, piston rod thread M10x1.25
• Operating pressure 1 to 10 bar

Applications

In fixtures, test stations and special machines the DSNU-32-300-PPV-A moves workpieces and flaps over 300 mm. The DSNU-32-300-PPV-A is mounted with DSNU series mounting accessories. For load coupling the piston rod carries the thread M10x1.25, matching accessories for piston Ø 32 mm.
