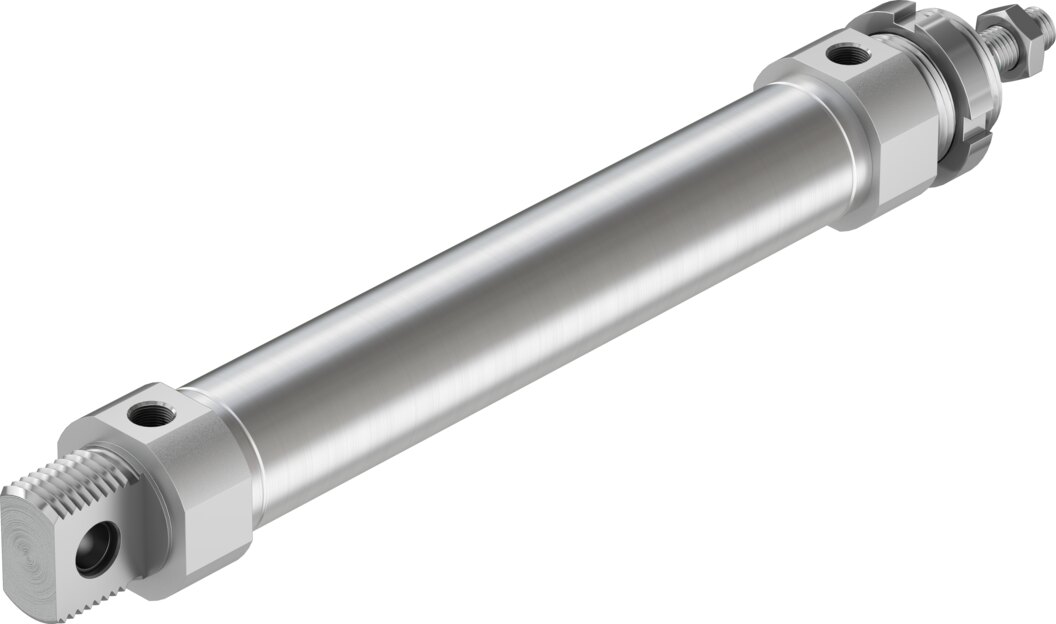

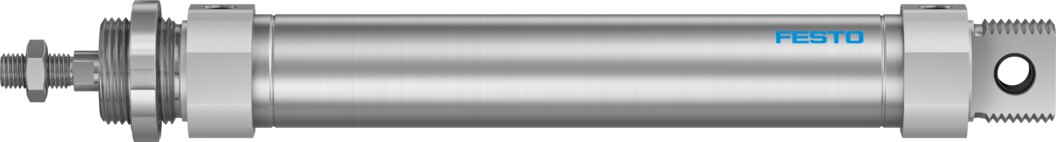

Round cylinder, double-acting, Ø 32 mm, stroke 150 mm DSNU-32-150-PPS-A - Festo 5249972

With its compact round design the DSNU-32-150-PPS-A delivers 150 mm of stroke and reaches 482.5 N on advance at 6 bar with a piston Ø of 32 mm and 415 N on return. The barrel of the DSNU-32-150-PPS-A is made of high-alloy stainless steel (CRC 2).

Benefits

• Theoretical force at 6 bar: 482.5 N advance, 415 N return
• Self-adjusting pneumatic end-position cushioning PPS, cushioning length 14 mm
• Cylinder barrel in high-alloy stainless steel
• Cleanroom-suitable, class 6 to ISO 14644-1
• Operating pressure 1 to 10 bar
• Prepared for proximity switches to sense the end positions

Applications

With 150 mm stroke the DSNU-32-150-PPS-A handles pushing, lifting, clamping and ejecting tasks in assembly, packaging and handling. It is mounted with separate accessories. For load coupling the piston rod carries the thread M10x1.25, matching accessories for piston Ø 32 mm.
