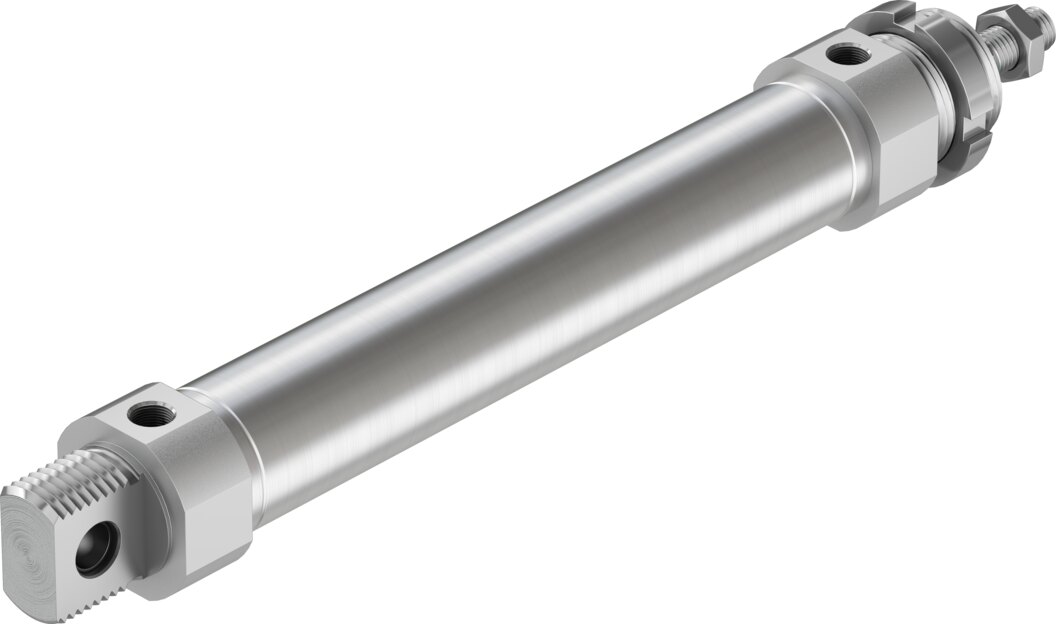

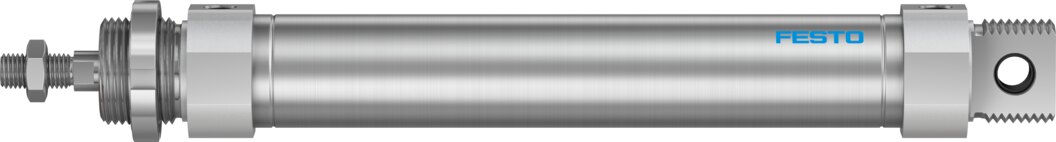

Round cylinder, double-acting, Ø 32 mm, stroke 150 mm DSNU-32-150-P-A - Festo 5249371

482.5 N advancing force at 6 bar, 150 mm stroke and a piston Ø of 32 mm: these are the key values of the round cylinder DSNU-32-150-P-A. The barrel of the DSNU-32-150-P-A is made of high-alloy stainless steel (CRC 2).

Benefits

• Theoretical force at 6 bar: 482.5 N advance, 415 N return
• Cleanroom-suitable, class 6 to ISO 14644-1
• Cylinder barrel in high-alloy stainless steel
• Elastic cushioning rings at both ends (P), permissible impact energy 0.4 J
• Prepared for proximity switches to sense the end positions
• Air connection G1/8, piston rod thread M10x1.25

Applications

With 150 mm stroke the DSNU-32-150-P-A handles pushing, lifting, clamping and ejecting tasks in assembly, packaging and handling. It is mounted with separate accessories. The M10x1.25 piston rod thread on the DSNU-32-150-P-A takes the matching rod-end accessories.
