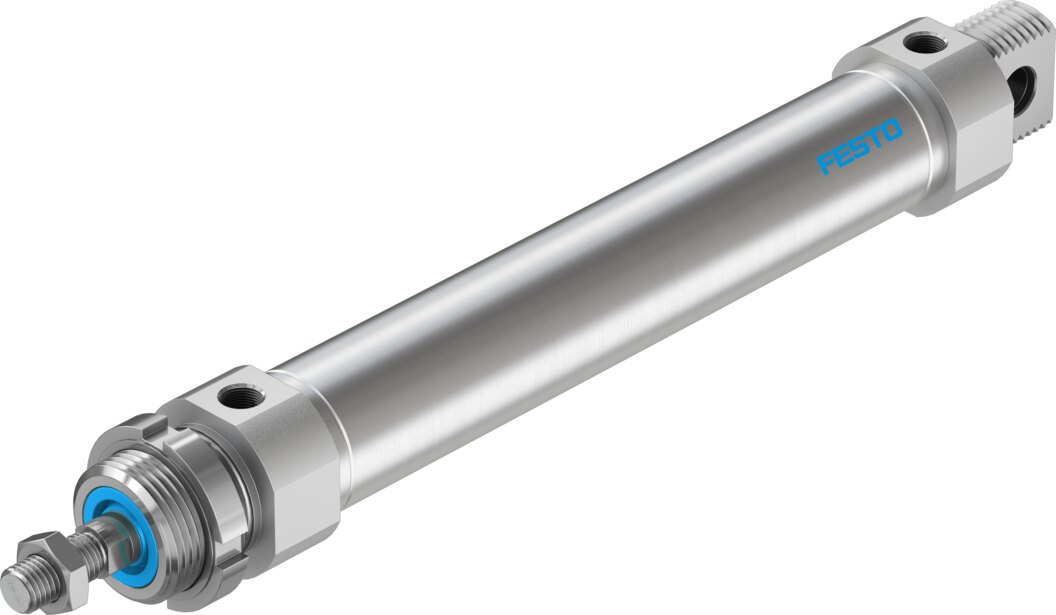

Standards-based cylinder, double-acting, Ø 25 mm, stroke 290 mm DSNU-25-290-PPS-A - Festo 570946

294.5 N advancing force at 6 bar, 290 mm stroke and a piston Ø of 25 mm: these are the key values of the standards-based cylinder DSNU-25-290-PPS-A. The pneumatic end-position cushioning PPS adjusts itself, so no readjustment is needed.

Benefits

• Piston Ø 25 mm and stroke 290 mm, defined by the order code DSNU-25-290-PPS-A
• Theoretical force at 6 bar: 294.5 N advance, 247.4 N return
• Self-adjusting pneumatic end-position cushioning PPS, cushioning length 17 mm
• Cylinder barrel and piston rod in high-alloy stainless steel
• Prepared for proximity switches to sense the end positions (code A in the type)
• Air connection G1/8, piston rod thread M10x1.25

Applications

The DSNU-25-290-PPS-A suits stopping, sorting and feeding tasks where 290 mm stroke and a piston Ø of 25 mm are sufficient. For load coupling the piston rod carries the thread M10x1.25, matching accessories for piston Ø 25 mm. For replacement please compare the type DSNU-25-290-PPS-A with the installed cylinder.
