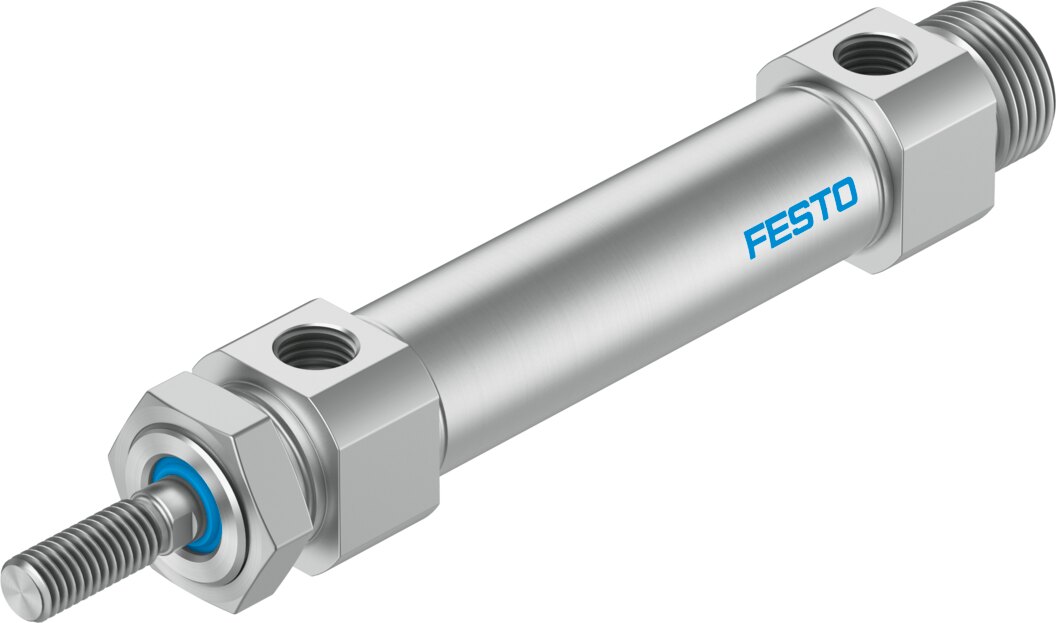

Standards-based cylinder, double-acting, Ø 20 mm, stroke 140 mm DSNU-20-140-P-A - Festo 594947

With its compact round design the DSNU-20-140-P-A delivers 140 mm of stroke and reaches 188.5 N on advance at 6 bar with a piston Ø of 20 mm and 158.3 N on return. On the DSNU-20-140-P-A, barrel and piston rod are made of high-alloy stainless steel (CRC 2).

Benefits

• Piston Ø 20 mm and stroke 140 mm, defined by the order code DSNU-20-140-P-A
• Theoretical force at 6 bar: 188.5 N advance, 158.3 N return
• Elastic cushioning rings at both ends (P), permissible impact energy 0.20 J
• Conforms to CETOP RP 52 P, ISO 6432, standard mounting accessories fit
• Cylinder barrel and piston rod in high-alloy stainless steel
• Air connection G1/8, piston rod thread M8

Applications

With 140 mm stroke the DSNU-20-140-P-A handles pushing, lifting, clamping and ejecting tasks in assembly, packaging and handling. It is mounted with separate accessories. Rod eyes and couplings screw onto the M8 piston rod thread, the stroke is 140 mm. For replacement please compare the type DSNU-20-140-P-A with the installed cylinder.
