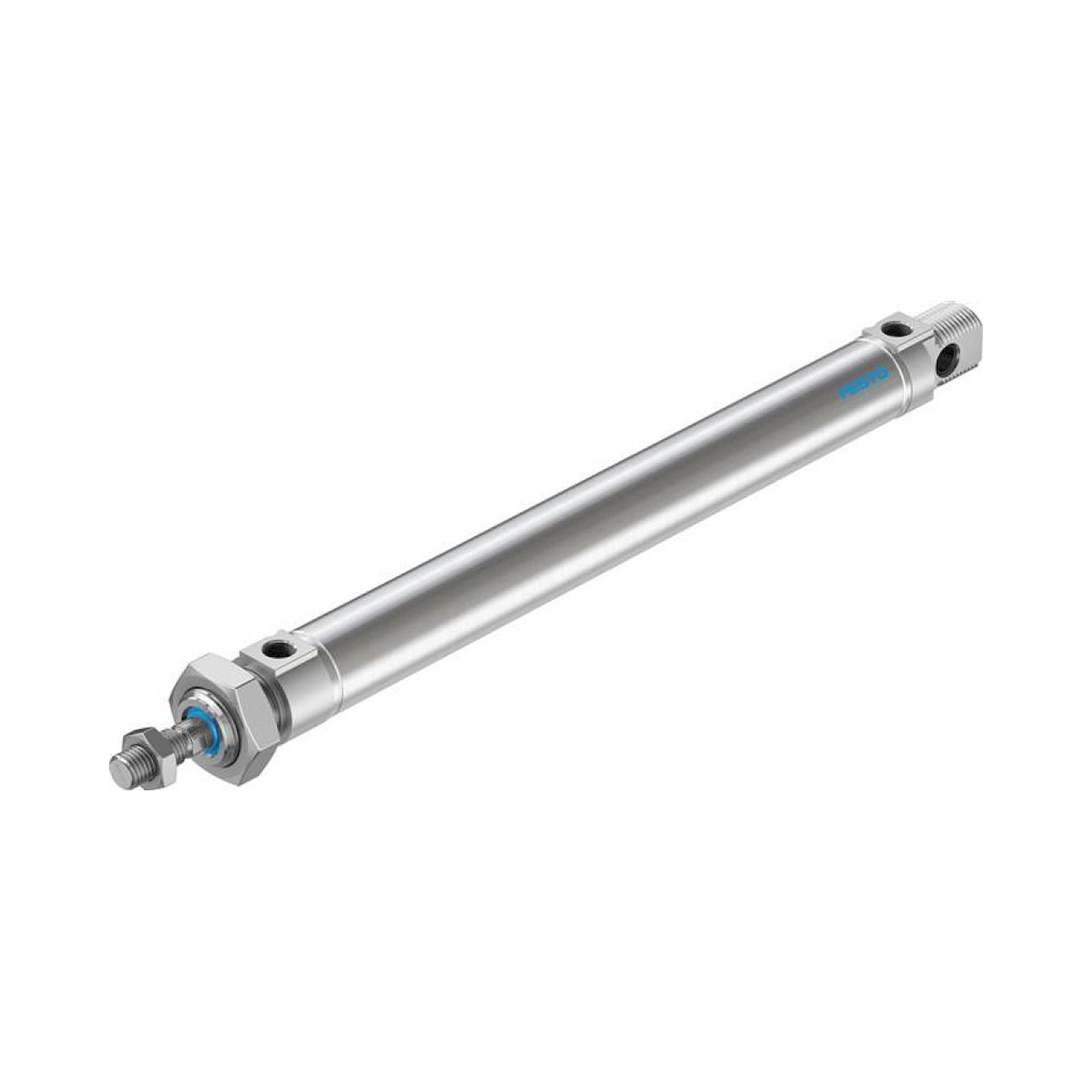

Standards-based cylinder, double-acting, Ø 20 mm, stroke 12 mm DSNU-20-12-PPV-A - Festo 562181

188.5 N advancing force at 6 bar, 12 mm stroke and a piston Ø of 20 mm: these are the key values of the standards-based cylinder DSNU-20-12-PPV-A. On the DSNU-20-12-PPV-A, barrel and piston rod are made of high-alloy stainless steel (CRC 2).

Benefits

• Piston Ø 20 mm and stroke 12 mm, defined by the order code DSNU-20-12-PPV-A
• Theoretical force at 6 bar: 188.5 N advance, 158.3 N return
• Conforms to CETOP RP 52 P, ISO 6432, standard mounting accessories fit
• Pneumatic end-position cushioning PPV, adjustable at both ends, cushioning length 15 mm
• Cylinder barrel and piston rod in high-alloy stainless steel
• Air connection G1/8, piston rod thread M8

Applications

In fixtures, test stations and special machines the DSNU-20-12-PPV-A moves workpieces and flaps over 12 mm. The DSNU-20-12-PPV-A is mounted with DSNU series mounting accessories. For load coupling the piston rod carries the thread M8, matching accessories for piston Ø 20 mm. For replacement please compare the type DSNU-20-12-PPV-A with the installed cylinder.
