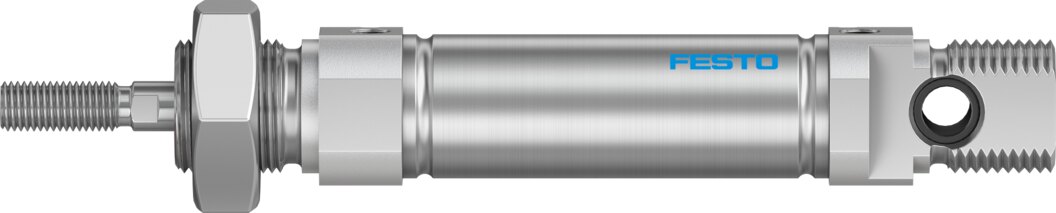

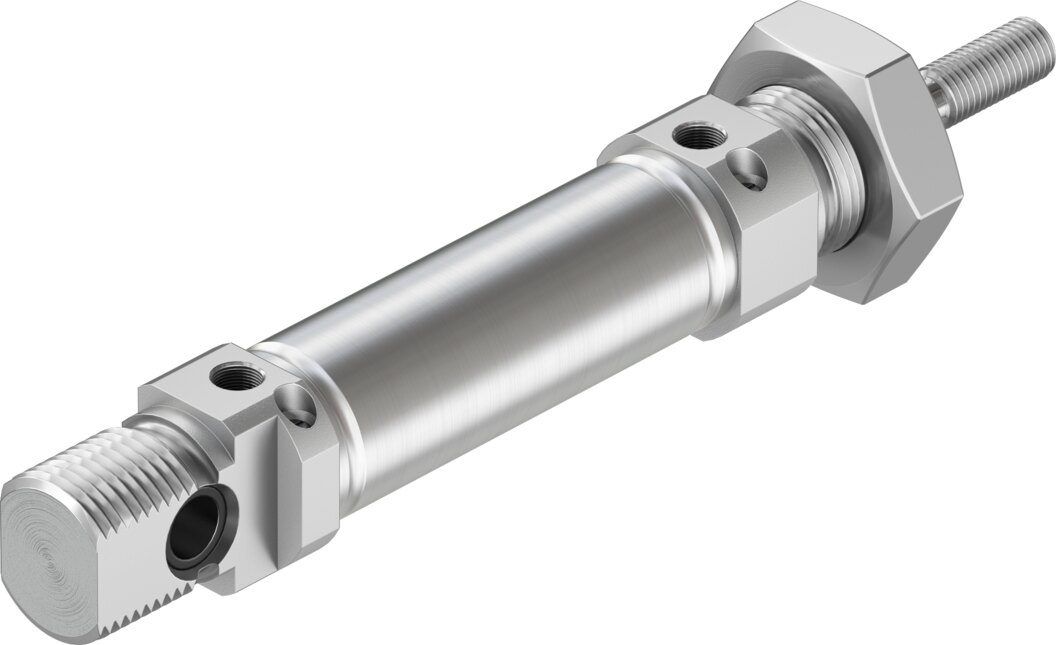

Standards-based cylinder, double-acting, Ø 16 mm, stroke 140 mm DSNU-16-140-PPV-A - Festo 593385

The Festo standards-based cylinder DSNU-16-140-PPV-A is double-acting with a piston Ø of 16 mm and 140 mm stroke and pushes with 120.6 N at 6 bar. The pneumatic end-position cushioning PPV can be adjusted at both ends.

Benefits

• Theoretical force at 6 bar: 120.6 N advance, 103.7 N return
• Piston Ø 16 mm and stroke 140 mm, defined by the order code DSNU-16-140-PPV-A
• Pneumatic end-position cushioning PPV, adjustable at both ends, cushioning length 12 mm
• Conforms to CETOP RP 52 P, ISO 6432, standard mounting accessories fit
• Cylinder barrel and piston rod in high-alloy stainless steel
• Air connection M5, piston rod thread M6

Applications

In fixtures, test stations and special machines the DSNU-16-140-PPV-A moves workpieces and flaps over 140 mm. The DSNU-16-140-PPV-A is mounted with DSNU series mounting accessories. Rod eyes and couplings screw onto the M6 piston rod thread, the stroke is 140 mm. For replacement please compare the type DSNU-16-140-PPV-A with the installed cylinder.
