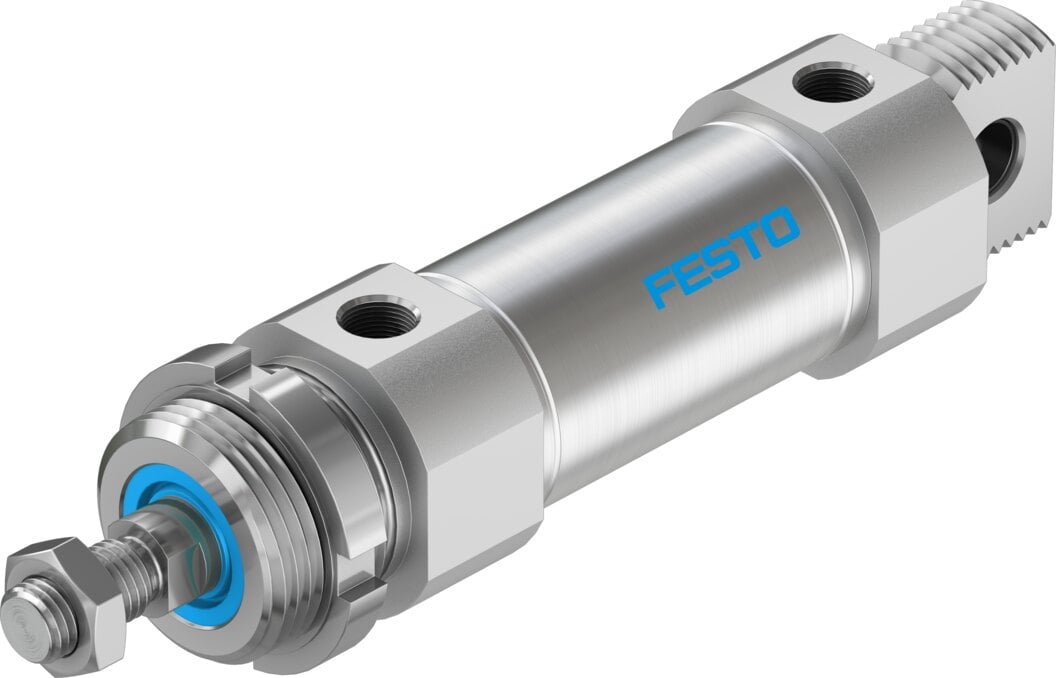

ISO cylinder DSNU-12- - - Festo 193988
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Stroke | 1 ... 200 mm |
|---|---|
| Piston diameter | 12 mm |
| Cushioning | Elastic cushioning rings/plates at both ends, Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any |
| Conforms to standard | ISO 6432 |
| Design | Piston, Piston rod, Cylinder barrel |
| Position detection | Via proximity switch |
| Variants | Weld spatter protection, Custom thread on the piston rod, Piston rod with external hexagon, Additional slide, standard, on left, Low friction for balancer applications, Bearing cap without mounting thread, Swivelling rod eye mounting on the end cap, Module for reaching a specific end position in case of a pressure failure, Transverse force increased, Reinforced piston rod, Uniform, slow movement, Low friction, Through, hollow piston rod, Additional PTFE piston guide |
| Protection against torque/guide | Square piston rod |
| Operating pressure | 1.5 ... 10 bar |
| Mode of operation | Double-acting |
| CE mark (see declaration of conformity) | To EU Explosion Protection Directive (ATEX) |
| UKCA marking (see declaration of conformity) | To UK EX instructions |
| Explosion protection certification outside the EU | EPL Gb (GB) |
| Explosion protection | Zone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX) |
| ATEX category gas | II 2G |
| ATEX category dust | II 2D |
| Explosion ignition protection type for gas | Ex h IIC T4 Gb |
| Explosion ignition protection type for dust | Ex h IIIC T120°C Db |
| Explosion ambient temperature | -20°C <= Ta <= +60°C |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress, 3 - high corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L, VDMA24364 zone III |
| Ambient temperature | -20 ... 120 °C |
| Impact energy in end positions | 0.035 ... 0.07 J |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 51 ... 68 N |
| Type of mounting | With accessories |
| Pneumatic connection | M5 |
| Note on materials | RoHS compliant |
| Material cover | Wrought aluminium alloy |
| Material seals | NBR, TPE-U(PU) |
| Material piston rod | High-alloy stainless steel |
| Material cylinder barrel | High-alloy stainless steel |
| Manufacturer | Festo |
| Hersteller-Nr | DSNU-12- - |
| Zolltarifnummer | 84123100 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
