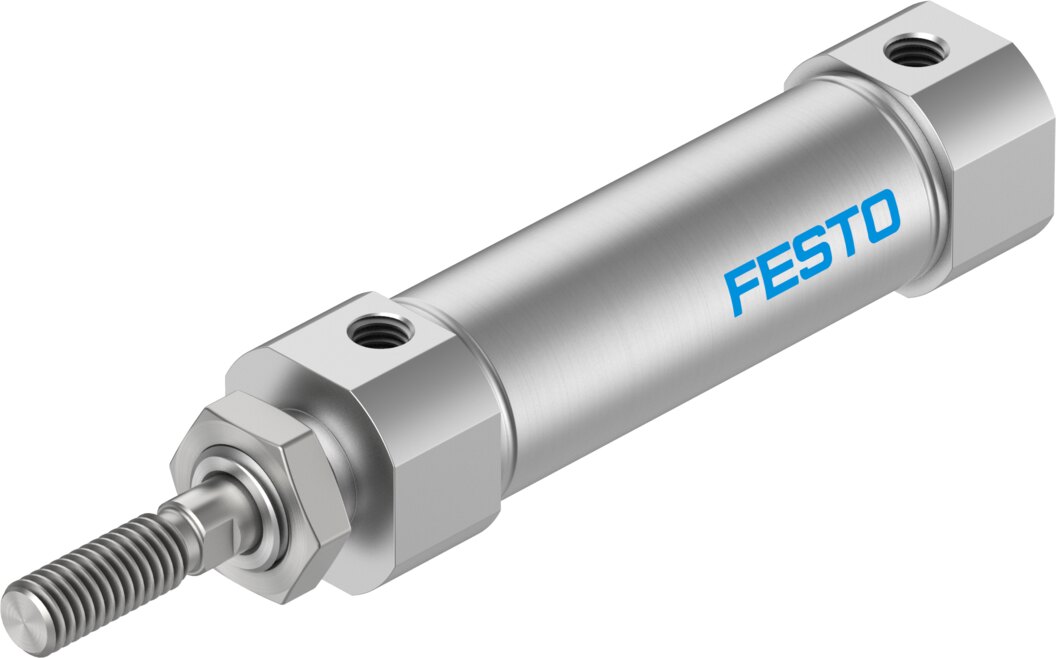

Round cylinder, double-acting, Ø 1 inch, stroke 5 inch DSNU-1"-5"-PPV-A - Festo 546418

The Festo round cylinder DSNU-1"-5"-PPV-A is double-acting with a piston Ø of 1 inch and 5 inch (127 mm) stroke and pushes with 294.5 N at 6 bar. The end positions can be sensed with proximity switches.

Benefits

• Theoretical force at 6 bar: 294.5 N advance, 247.3 N return
• Dimensions based on ISO 6432
• Pneumatic end-position cushioning PPV, adjustable at both ends, cushioning length 17 mm
• Cylinder barrel and piston rod in high-alloy stainless steel
• Air connection 1/8 NPT, piston rod thread 3/8-24 UNF-2A
• Prepared for proximity switches to sense the end positions

Applications

The DSNU-1"-5"-PPV-A suits stopping, sorting and feeding tasks where 5 inch (127 mm) stroke and a piston Ø of 1 inch are sufficient. Rod eyes and couplings screw onto the 3/8-24 UNF-2A piston rod thread, the stroke is 5 inch (127 mm).
