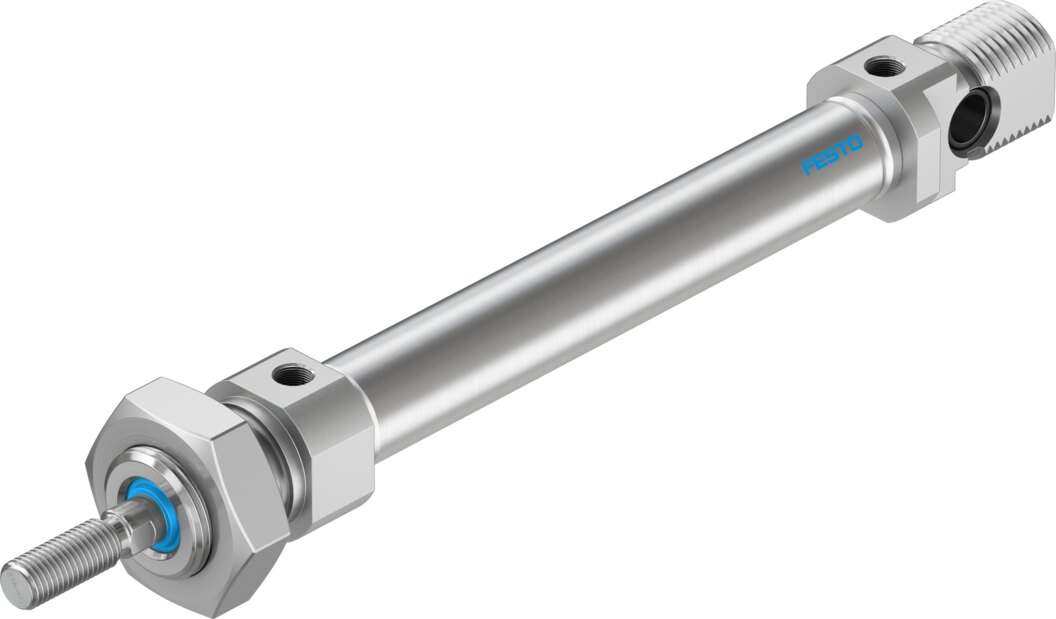

Round cylinder, double-acting, Ø 1 inch, stroke 12 inch DSNU-1"-12"-PPV-A - Festo 546415

The Festo round cylinder DSNU-1"-12"-PPV-A is double-acting with a piston Ø of 1 inch and 12 inch (304.8 mm) stroke and pushes with 294.5 N at 6 bar. The pneumatic end-position cushioning PPV can be adjusted at both ends.

Benefits

• Theoretical force at 6 bar: 294.5 N advance, 247.3 N return
• Pneumatic end-position cushioning PPV, adjustable at both ends, cushioning length 17 mm
• Cylinder barrel and piston rod in high-alloy stainless steel
• Dimensions based on ISO 6432
• Prepared for proximity switches to sense the end positions
• Air connection 1/8 NPT, piston rod thread 3/8-24 UNF-2A

Applications

In fixtures, test stations and special machines the DSNU-1"-12"-PPV-A moves workpieces and flaps over 12 inch (304.8 mm). The DSNU-1"-12"-PPV-A is mounted with DSNU series mounting accessories. For load coupling the piston rod carries the thread 3/8-24 UNF-2A, matching accessories for piston Ø 1 inch.
