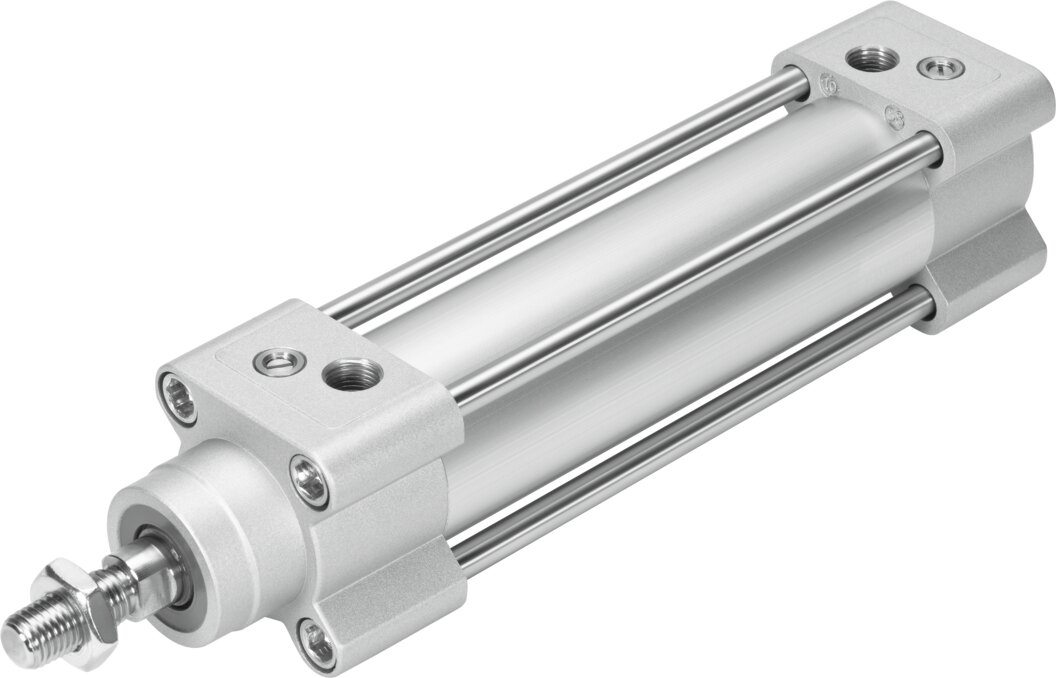

Standards-based cylinder double-acting Ø 125 mm stroke 260 mm DSBG-125-260-PPVA-N3-275V - Festo 604932
DSBG series standards-based cylinder for machine building: DSBG-125-260-PPVA-N3-275V with a 125 mm piston and 260 mm stroke. The adjustable pneumatic end-position cushioning (PPV) slows the piston before the end positions.
Net
excl. VAT
€901.59
Item
FES-604932
Manufacturer no.
DSBG-125-260-PPVA-N3-275V
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo DSBG-125-260-PPVA-N3-275V is a double-acting standards-based cylinder with a 125 mm piston and 260 mm stroke and adjustable pneumatic end-position cushioning (PPV). The data below is taken from the Festo type code DSBG-125-260-PPVA-N3-275V, further values are given in the Festo data sheet.
Benefits at a glance
- Soft into the end position: adjustable pneumatic cushioning (PPV) at both ends
- Sensor-ready: end positions detectable via proximity switch
Applications
Fields of use are machine building, conveyor technology and test rigs. With a 125 mm piston and 260 mm stroke it handles linear motion with defined force there.
Technical data
| Piston diameter | 125 mm |
|---|---|
| Stroke | 260 mm |
| Mode of operation | double-acting |
| Cushioning | PPV: pneumatic cushioning, adjustable at both ends |
| Position detection | via proximity switch |
| Mounting position | any |
| Operating medium | compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | lubricated operation possible (then required for all further operation) |
| Weight (price list) | 13 kg |
| Type | DSBG-125-260-PPVA-N3-275V |
| Festo part number | 604932 |
| Weight | 13 kg |
| Manufacturer | Festo |
| Hersteller-Nr | DSBG-125-260-PPVA-N3-275V |
| Zolltarifnummer | 84123100 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Piston Ø [mm] | 125 |
| Medium | Compressed air |
| Function | double-acting |
| Series | DSBG |
| Bore (mm) | 125 |
