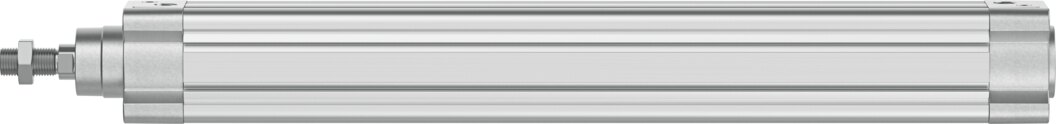

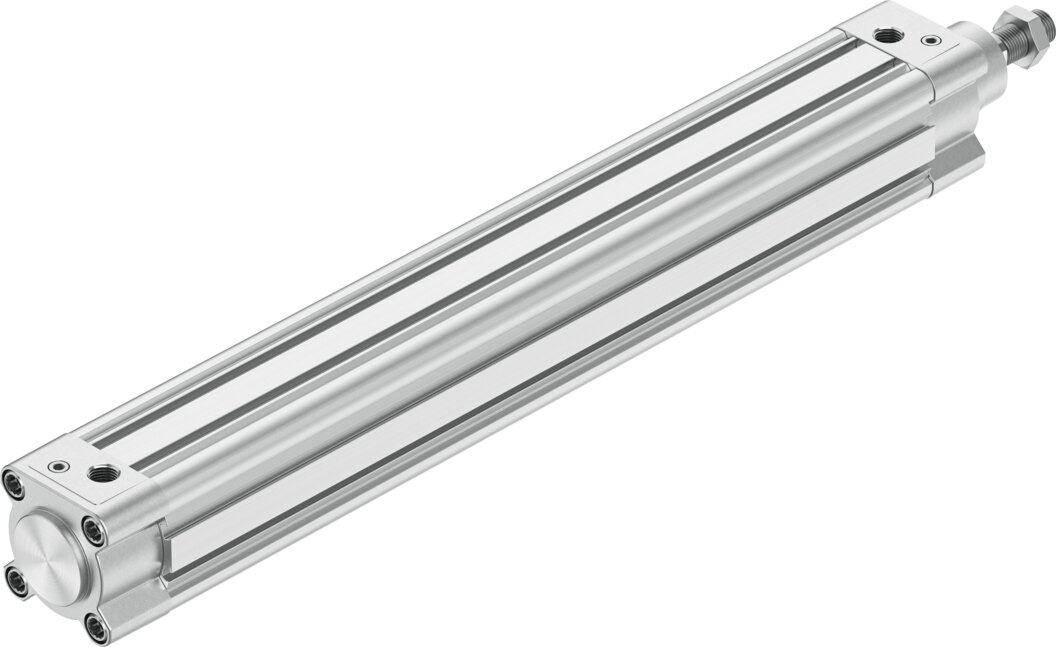

Double-acting ISO 15552 standard cylinder Ø 50 mm stroke 400 mm DSBC-50-400-D3-PPVA-N3 - Festo 8165587

1178 N of theoretical advance force at 6 bar over a 400 mm stroke characterise the double-acting ISO 15552 standard cylinder DSBC-50-400-D3-PPVA-N3 with a Ø 50 mm piston. Port G1/4, end-position sensing via proximity switches.

Key benefits

• 1178 N advance and 990 N return force at 6 bar
• PPV cushioning adjustable at both ends, 22 mm cushioning length
• End positions can be sensed with proximity switches
• Pressure range 0.4 to 12 bar
• Dimensions to ISO 15552
• Piston rod thread m16x1.5, piston rod: high-alloy steel

Typical applications

With a Ø 50 mm piston, the DSBC-50-400-D3-PPVA-N3 suits feed, pressing and positioning tasks in production lines and special machinery. The DSBC-50-400-D3-PPVA-N3 runs on compressed air to ISO 8573-1:2010 [7:4:4], and it can be mounted in any position.
