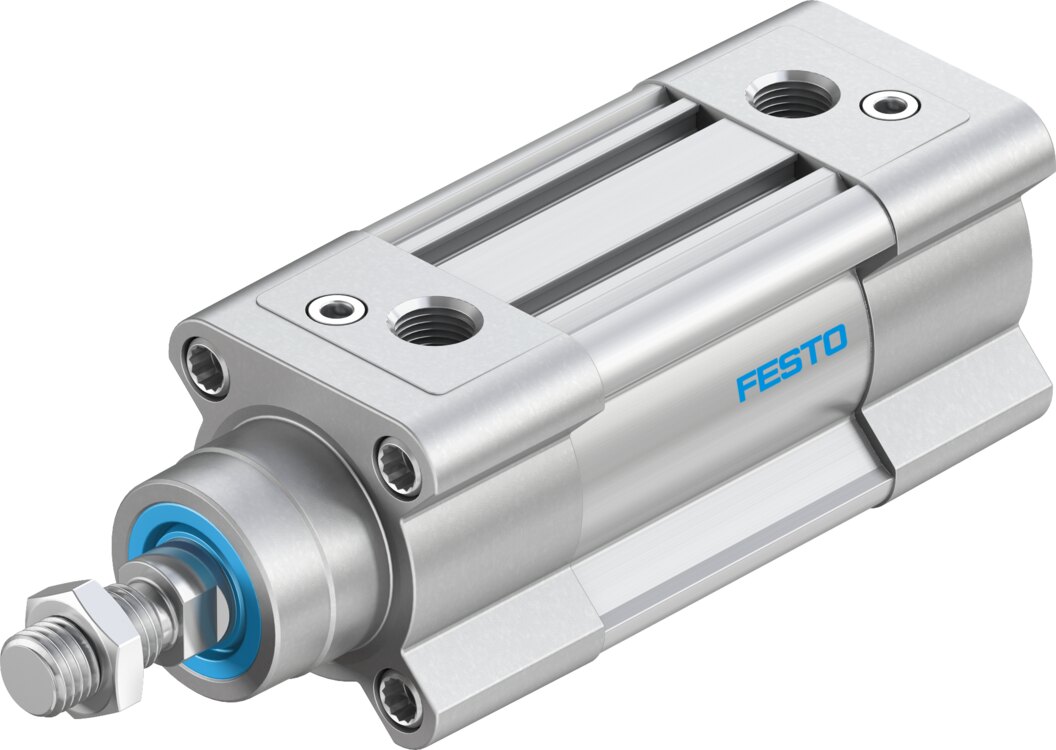

Double-acting standard cylinder Ø 50 mm stroke 100 mm DSBC-50-100-F-PPVA-N3 - Festo 595589

Ø 50 mm piston, 100 mm stroke: these are the dimensions of the Festo standard cylinder DSBC-50-100-F-PPVA-N3. Compressed air drives the piston both ways, so advance and return over 100 mm are powered.

Key benefits

• Piston Ø 50 mm, stroke 100 mm
• PPV cushioning adjustable at both ends
• End positions can be sensed with proximity switches
• Double-acting: force in both directions
• Weight 1.7 kg
• Clearly identified by Festo part number 595589

Typical applications

Typical tasks for the DSBC-50-100-F-PPVA-N3 are clamping, ejecting and shifting over 100 mm in assembly and test systems.
