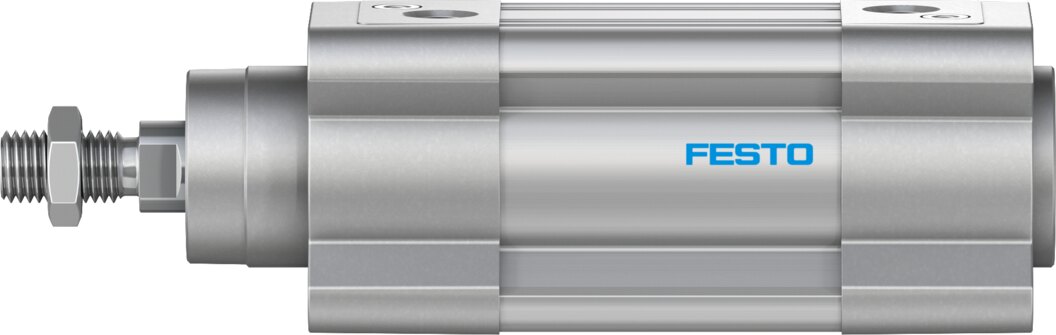

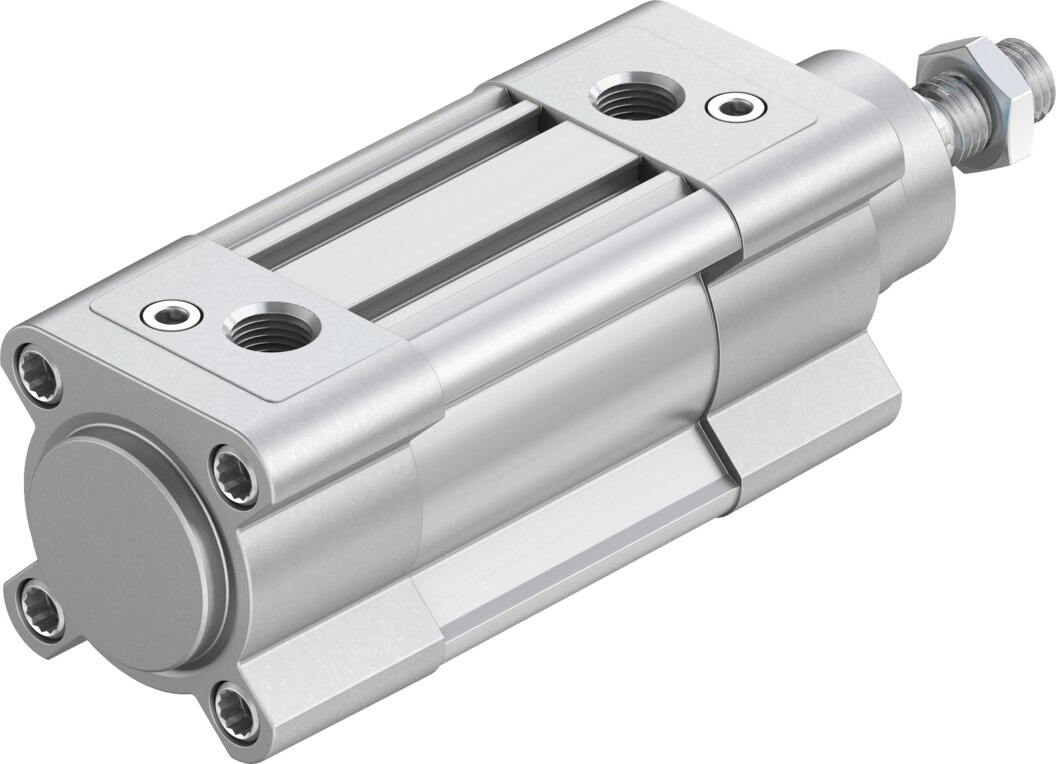

Double-acting standard cylinder Ø 40 mm stroke 550 mm DSBC-40-550-C-PPVA - Festo 609904

The Festo standard cylinder DSBC-40-550-C-PPVA extends its piston rod over 550 mm, the piston has a diameter of 40 mm. Being double-acting, the Ø 40 mm piston is driven by compressed air in both directions.

Benefits

• Piston Ø 40 mm, stroke 550 mm
• PPV cushioning adjustable at both ends
• End positions can be sensed with proximity switches
• Double-acting: force in both directions
• Weight 3.5 kg
• Clearly identified by Festo part number 609904

Applications

The standard cylinder handles lifting, pushing and feeding movements in machine and plant engineering, here with a 550 mm stroke.
