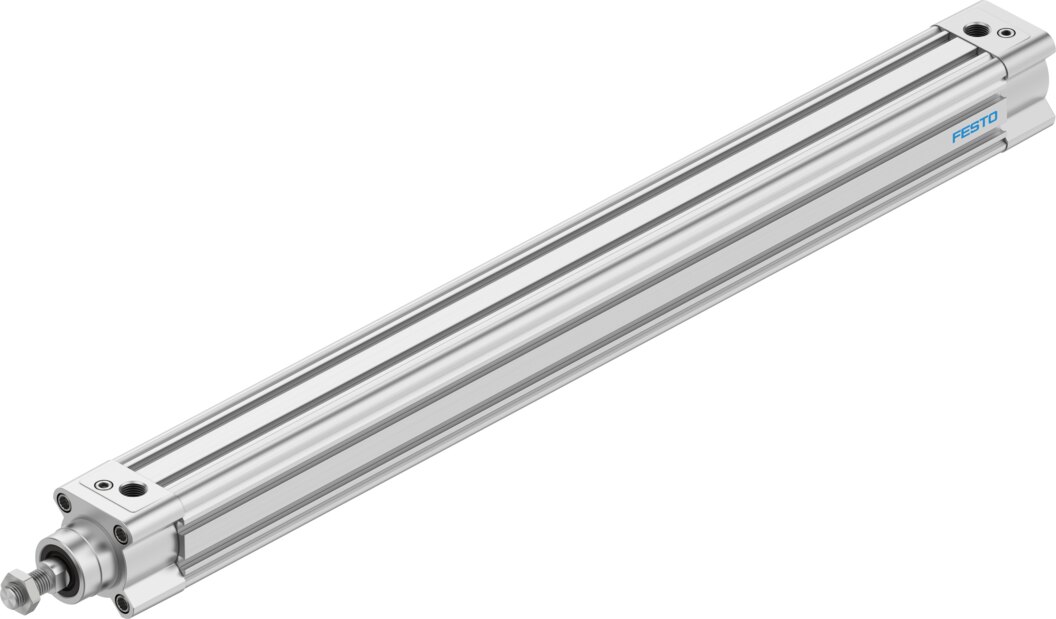

Double-acting standard cylinder Ø 40 mm stroke 290 mm DSBC-40-290-PPVA-N3 - Festo 593458

Ø 40 mm piston, 290 mm stroke: these are the dimensions of the Festo standard cylinder DSBC-40-290-PPVA-N3. Being double-acting, the Ø 40 mm piston is driven by compressed air in both directions.

Benefits

• Piston Ø 40 mm, stroke 290 mm
• PPV cushioning adjustable at both ends
• End positions can be sensed with proximity switches
• Double-acting: force in both directions
• Weight 1.8 kg
• Clearly identified by Festo part number 593458

Applications

Typical areas are handling, packaging and conveying, wherever a 290 mm linear stroke is required.
