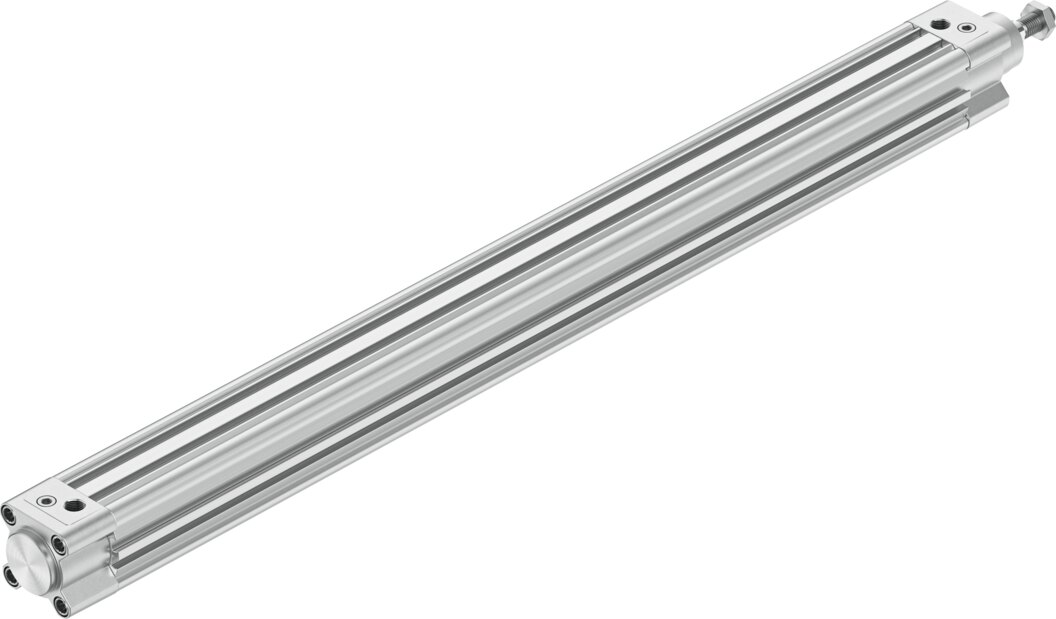

Double-acting ISO 15552 standard cylinder Ø 32 mm stroke 500 mm DSBC-32-500-D3-PPVA-N3 - Festo 8165460

At 6 bar the ISO 15552 standard cylinder DSBC-32-500-D3-PPVA-N3 converts compressed air into 483 N advance and 415 N return force, piston Ø 32 mm, stroke 500 mm. Mounting dimensions conform to ISO 15552, which simplifies replacement.

Benefits

• Theoretical force at 6 bar: 483 N advance, 415 N return
• End positions can be sensed with proximity switches
• Pressure range 0.8 to 12 bar
• Dimensions to ISO 15552
• Piston rod thread m10x1.25, piston rod: high-alloy steel
• Corrosion resistance class CRC 2 - moderate corrosion stress

Applications

The ISO 15552 standard cylinder handles lifting, pushing and feeding movements in machine and plant engineering, here with a 500 mm stroke. The operating medium for the DSBC-32-500-D3-PPVA-N3 is compressed air to ISO 8573-1:2010 [7:4:4].
