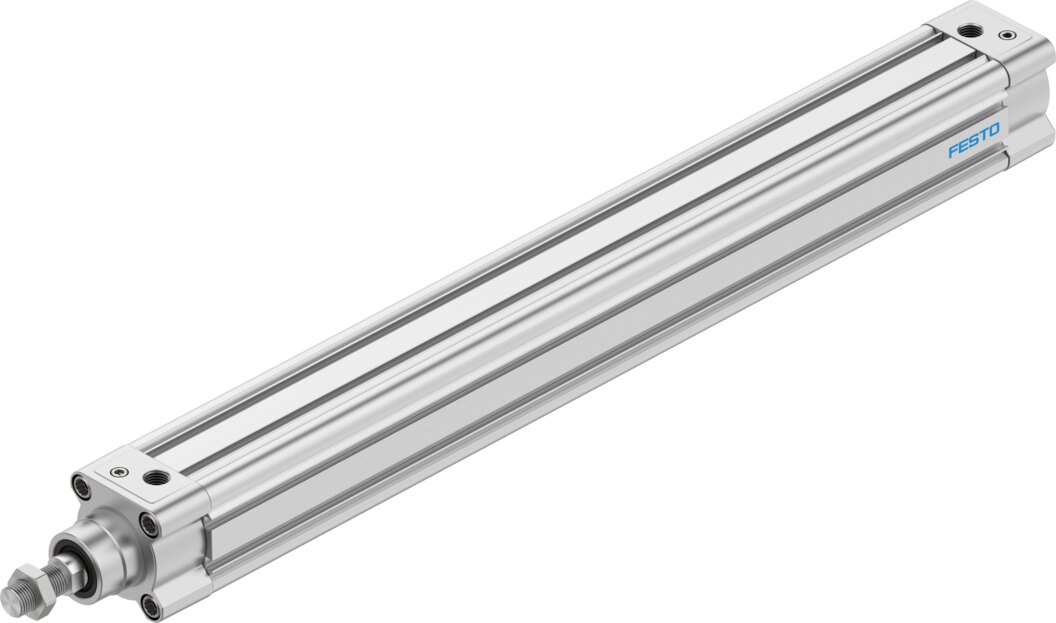

Double-acting ISO 15552 standard cylinder Ø 32 mm stroke 400 mm DSBC-32-400-D3-PPSA-N3 - Festo 8165446

Name: Double-acting ISO 15552 standard cylinder Ø 32 mm stroke 400 mm DSBC-32-400-D3-PPSA-N3 - Festo 8165446
Brand: Festo
SKU: FES-8165446
Price: 149.63 EUR
Availability: InStock

Festo ✓ Original product Brand new

For travel of 400 mm, the Festo ISO 15552 standard cylinder DSBC-32-400-D3-PPSA-N3 with a Ø 32 mm piston supplies 483 N of advance force at 6 bar. With PPS there are no cushioning screws to adjust, permissible impact energy in the end positions is 0.4 J. Weight 1.719 kg.

Net

€149.63

excl. VAT

Item FES-8165446

Manufacturer no. DSBC-32-400-D3-PPSA-N3

Question about this item

Datasheet (PDF)

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

The Ø 32 mm piston of the ISO 15552 standard cylinder DSBC-32-400-D3-PPSA-N3 generates 483 N of advance force and 415 N when retracting at 6 bar, the stroke is 400 mm. Port G1/8, end-position sensing via proximity switches.

Benefits

483 N advance and 415 N return force at 6 bar
Self-adjusting cushioning PPS, 17 mm cushioning length
Position detection via proximity switches
Operating pressure 0.8 to 12 bar
Dimensions to ISO 15552
Piston rod thread m10x1.25, piston rod: high-alloy steel

Applications

With a Ø 32 mm piston, the DSBC-32-400-D3-PPSA-N3 suits feed, pressing and positioning tasks in production lines and special machinery. The operating medium for the DSBC-32-400-D3-PPSA-N3 is compressed air to ISO 8573-1:2010 [7:4:4].

Technical data

Order type	DSBC-32-400-D3-PPSA-N3
Festo part number	8165446
Stroke	400 mm
Piston diameter	32 mm
Piston rod thread	m10x1.25
Cushioning	self-adjusting pneumatic end-position cushioning
Mounting position	any
Conforms to standard	ISO 15552
Piston rod end	male thread
Design	piston, piston rod, profile barrel
Position detection	via proximity switch
Variants	piston rod at one end
Operating pressure	0.8 to 12 bar
Mode of operation	double-acting
Operating medium	compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium	lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC	2 - moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20 to 80 °C
Impact energy in end positions	0.4 J
Cushioning length	17 mm
Theoretical force at 6 bar, return stroke	415 N
Theoretical force at 6 bar, advance stroke	483 N
Moving mass	470 g
Moving mass for 0 mm stroke	110 g
Additional moving mass per 10 mm stroke	9 g
Product weight	1719 g
Basic weight for 0 mm stroke	480 g
Additional weight per 10 mm stroke	31 g
Type of mounting	with female thread, with accessories
Pneumatic connection	G1/8
Note on materials	roHS compliant
Material cover	coated die-cast aluminium
Material piston seal	TPE-U(PU)
Material piston	wrought aluminium alloy
Material piston rod	high-alloy steel
Material piston rod wiper	TPE-U(PU)
Material buffer seal	TPE-U(PU)
Material cushioning boss	POM
Material cylinder barrel	smooth-anodised wrought aluminium alloy
Material nut	galvanised steel
Material rod wiper	TPE-E
Material bearing	metal polymer compound
Material collar screws	galvanised steel
Customs tariff number	84123100
Weight	1.6 kg
Manufacturer	Festo
Hersteller-Nr	DSBC-32-400-D3-PPSA-N3
EAN	4052568597825
Zolltarifnummer	84123100
GPSR Herstellerdaten	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Artikelzustand	New
Artikel-Authentizität	Original product
Ausführung	einseitige Kolbenstange
Thread	G 1/8
Piston Ø [mm]	32
Stroke [mm]	400
Medium	Compressed air
Function	double-acting
Norm	ISO 15552
Series	DSBC
Bore (mm)	32
Betriebsdruck max [bar]	12
Temperaturbereich	-20-80 °C
Temperature (max.)	80
