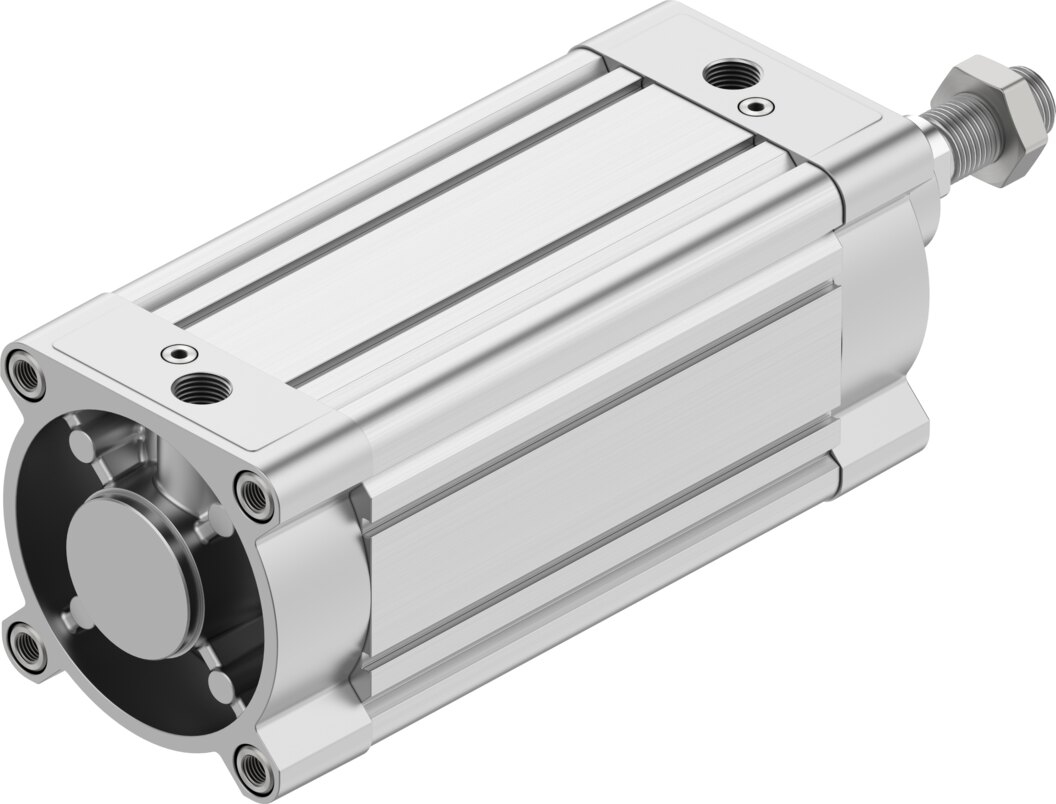

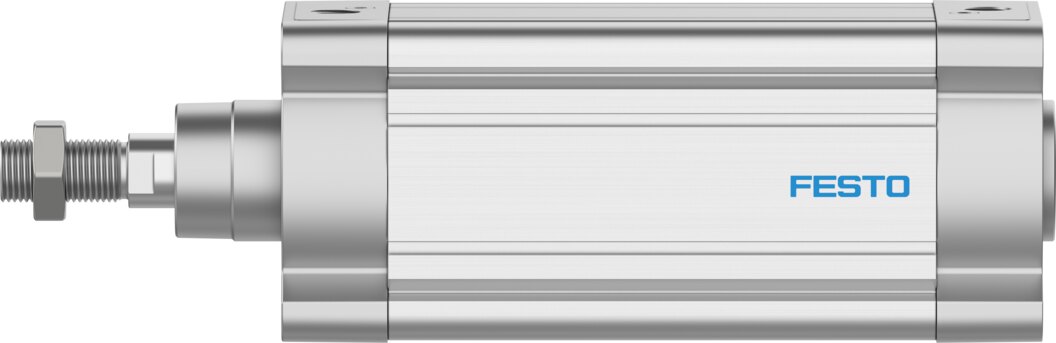

Double-acting ISO 15552 standard cylinder Ø 125 mm stroke 160 mm DSBC-125-160-D3-PPVA-N3 - Festo 8165666
For travel of 160 mm, the Festo ISO 15552 standard cylinder DSBC-125-160-D3-PPVA-N3 with a Ø 125 mm piston supplies 7363 N of advance force at 6 bar. PPV cushioning lets you tune both end positions to the load, effective over 45 mm. Port G1/2, end-position sensing via proximity switches.
Net
excl. VAT
€575.24
Item
FES-8165666
Manufacturer no.
DSBC-125-160-D3-PPVA-N3
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Ø 125 mm piston of the ISO 15552 standard cylinder DSBC-125-160-D3-PPVA-N3 generates 7363 N of advance force and 6881 N when retracting at 6 bar, the stroke is 160 mm. The DSBC-125-160-D3-PPVA-N3 runs on 0.2 to 10 bar operating pressure at -20 to 80 °C.
Benefits at a glance
- 7363 N advance and 6881 N return force at 6 bar
- Adjustable end-position cushioning PPV, up to 3.3 J
- End positions can be sensed with proximity switches
- Pressure range 0.2 to 10 bar
- Mounting dimensions to ISO 15552, interchangeable
- Piston rod thread m27x2, piston rod: high-alloy steel
Use
Typical areas are handling, packaging and conveying, wherever a 160 mm linear stroke is required. The DSBC-125-160-D3-PPVA-N3 runs on compressed air to ISO 8573-1:2010 [7:4:4], and it can be mounted in any position.
Technical data
| Order type | DSBC-125-160-D3-PPVA-N3 |
|---|---|
| Festo part number | 8165666 |
| Stroke | 160 mm |
| Piston diameter | 125 mm |
| Piston rod thread | m27x2 |
| Cushioning | pneumatic cushioning, adjustable at both ends |
| Mounting position | any |
| Conforms to standard | ISO 15552 |
| Piston rod end | male thread |
| Design | piston, piston rod, profile barrel |
| Position detection | via proximity switch |
| Variants | piston rod at one end |
| Operating pressure | 0.2 to 10 bar |
| Mode of operation | double-acting |
| Operating medium | compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20 to 80 °C |
| Impact energy in end positions | 3.3 J |
| Cushioning length | 45 mm |
| Theoretical force at 6 bar, return stroke | 6881 N |
| Theoretical force at 6 bar, advance stroke | 7363 N |
| Moving mass | 3253 g |
| Moving mass for 0 mm stroke | 2245 g |
| Additional moving mass per 10 mm stroke | 63 g |
| Product weight | 10719 g |
| Basic weight for 0 mm stroke | 6768 g |
| Additional weight per 10 mm stroke | 247 g |
| Type of mounting | with female thread, with accessories |
| Pneumatic connection | G1/2 |
| Note on materials | roHS compliant |
| Material cover | coated die-cast aluminium |
| Material piston seal | TPE-U(PU) |
| Material piston | wrought aluminium alloy |
| Material piston rod | high-alloy steel |
| Material piston rod wiper | TPE-U(PU) |
| Material buffer seal | TPE-U(PU) |
| Material cushioning boss | POM |
| Material cylinder barrel | smooth-anodised wrought aluminium alloy |
| Material nut | galvanised steel |
| Material rod wiper | TPE-E |
| Material bearing | metal polymer compound |
| Material collar screws | galvanised steel |
| Customs tariff number | 84123100 |
| Weight | 10 kg |
| Manufacturer | Festo |
| Hersteller-Nr | DSBC-125-160-D3-PPVA-N3 |
| EAN | 4052568598181 |
| Zolltarifnummer | 84123100 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Ausführung | einseitige Kolbenstange |
| Thread | G 1/2 |
| Piston Ø [mm] | 125 |
| Stroke [mm] | 160 |
| Medium | Compressed air |
| Function | double-acting |
| Norm | ISO 15552 |
| Series | DSBC |
| Bore (mm) | 125 |
| Betriebsdruck max [bar] | 10 |
| Temperaturbereich | -20-80 °C |
| Temperature (max.) | 80 |
Downloads
Questions about this item
Any other question?
Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day.
