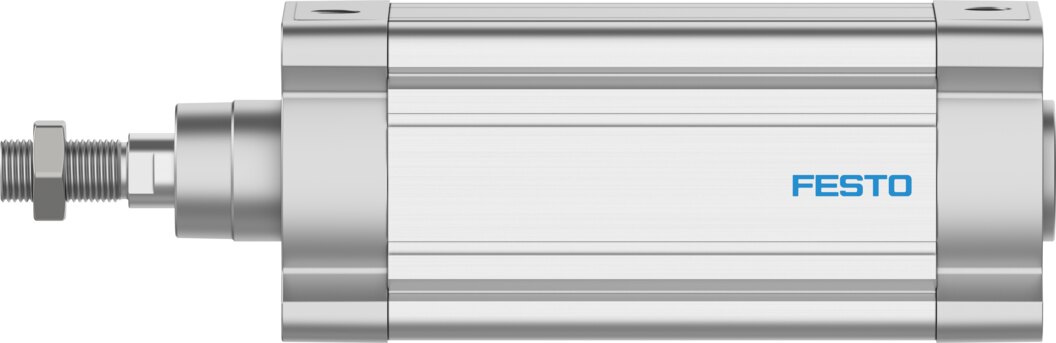

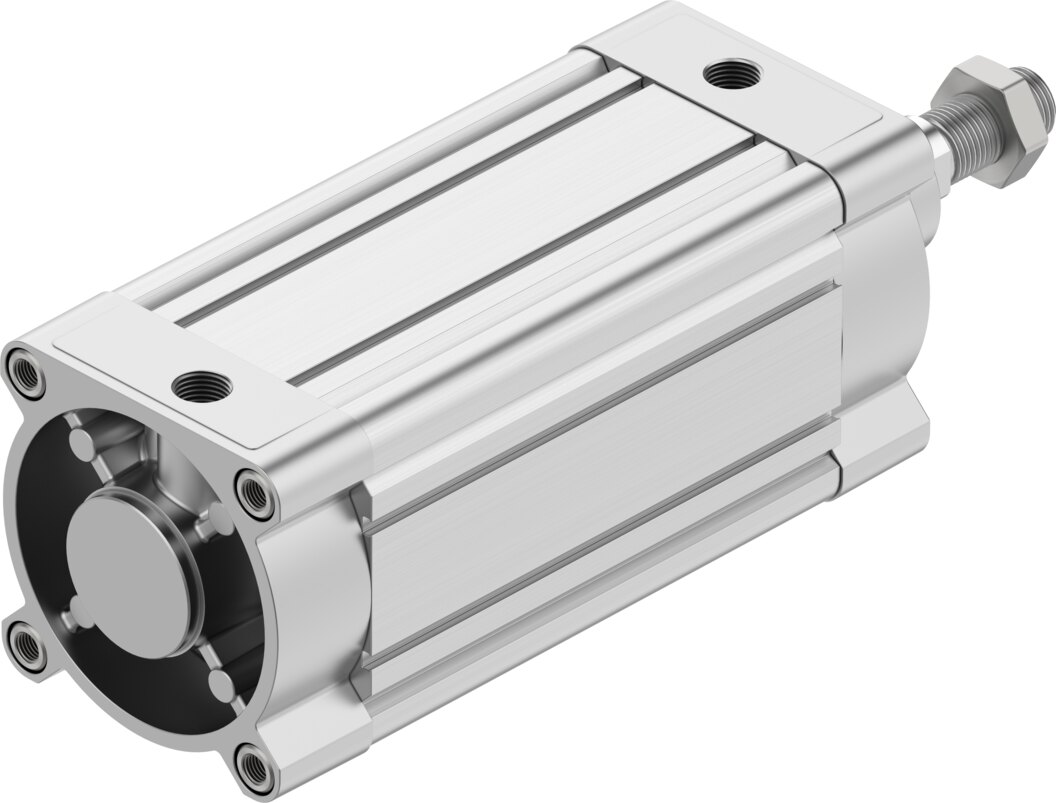

Double-acting ISO 15552 standard cylinder Ø 125 mm stroke 160 mm DSBC-125-160-D3-PPSA-N3 - Festo 8165665
For travel of 160 mm, the Festo ISO 15552 standard cylinder DSBC-125-160-D3-PPSA-N3 with a Ø 125 mm piston supplies 7363 N of advance force at 6 bar. The self-adjusting end-position cushioning PPS adapts to load and speed, cushioning length 45 mm. The cylinder weighs 10.719 kg.
Net
excl. VAT
€570.41
Item
FES-8165665
Manufacturer no.
DSBC-125-160-D3-PPSA-N3
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
7363 N of theoretical advance force at 6 bar over a 160 mm stroke characterise the double-acting ISO 15552 standard cylinder DSBC-125-160-D3-PPSA-N3 with a Ø 125 mm piston. Port G1/2, end-position sensing via proximity switches.
Benefits
- Theoretical force at 6 bar: 7363 N advance, 6881 N return
- Self-adjusting cushioning PPS, 45 mm cushioning length
- End positions can be sensed with proximity switches
- Operating pressure 0.2 to 10 bar
- Dimensions to ISO 15552
- Piston rod thread m27x2, piston rod: high-alloy steel
Applications
With a Ø 125 mm piston, the DSBC-125-160-D3-PPSA-N3 suits feed, pressing and positioning tasks in production lines and special machinery. The DSBC-125-160-D3-PPSA-N3 runs on compressed air to ISO 8573-1:2010 [7:4:4], and it can be mounted in any position.
Technical data
| Order type | DSBC-125-160-D3-PPSA-N3 |
|---|---|
| Festo part number | 8165665 |
| Stroke | 160 mm |
| Piston diameter | 125 mm |
| Piston rod thread | m27x2 |
| Cushioning | self-adjusting pneumatic end-position cushioning |
| Mounting position | any |
| Conforms to standard | ISO 15552 |
| Piston rod end | male thread |
| Design | piston, piston rod, profile barrel |
| Position detection | via proximity switch |
| Variants | piston rod at one end |
| Operating pressure | 0.2 to 10 bar |
| Mode of operation | double-acting |
| Operating medium | compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20 to 80 °C |
| Impact energy in end positions | 3.3 J |
| Cushioning length | 45 mm |
| Theoretical force at 6 bar, return stroke | 6881 N |
| Theoretical force at 6 bar, advance stroke | 7363 N |
| Moving mass | 3253 g |
| Moving mass for 0 mm stroke | 2245 g |
| Additional moving mass per 10 mm stroke | 63 g |
| Product weight | 10719 g |
| Basic weight for 0 mm stroke | 6768 g |
| Additional weight per 10 mm stroke | 247 g |
| Type of mounting | with female thread, with accessories |
| Pneumatic connection | G1/2 |
| Note on materials | roHS compliant |
| Material cover | coated die-cast aluminium |
| Material piston seal | TPE-U(PU) |
| Material piston | wrought aluminium alloy |
| Material piston rod | high-alloy steel |
| Material piston rod wiper | TPE-U(PU) |
| Material buffer seal | TPE-U(PU) |
| Material cushioning boss | POM |
| Material cylinder barrel | smooth-anodised wrought aluminium alloy |
| Material nut | galvanised steel |
| Material rod wiper | TPE-E |
| Material bearing | metal polymer compound |
| Material collar screws | galvanised steel |
| Customs tariff number | 84123100 |
| Manufacturer | Festo |
| Hersteller-Nr | DSBC-125-160-D3-PPSA-N3 |
| EAN | 4052568598174 |
| Zolltarifnummer | 84123100 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Ausführung | einseitige Kolbenstange |
| Thread | G 1/2 |
| Piston Ø [mm] | 125 |
| Stroke [mm] | 160 |
| Medium | Compressed air |
| Function | double-acting |
| Norm | ISO 15552 |
| Series | DSBC |
| Bore (mm) | 125 |
| Betriebsdruck max [bar] | 10 |
| Temperaturbereich | -20-80 °C |
| Temperature (max.) | 80 |
