Double-acting ISO 15552 standard cylinder Ø 125 mm stroke 100 mm DSBC-125-100-D3-PPVA-N3 - Festo 8165662

Name: Double-acting ISO 15552 standard cylinder Ø 125 mm stroke 100 mm DSBC-125-100-D3-PPVA-N3 - Festo 8165662
Brand: Festo
SKU: FES-8165662
Price: 560.57 EUR
Availability: InStock

Festo ✓ Original product Brand new

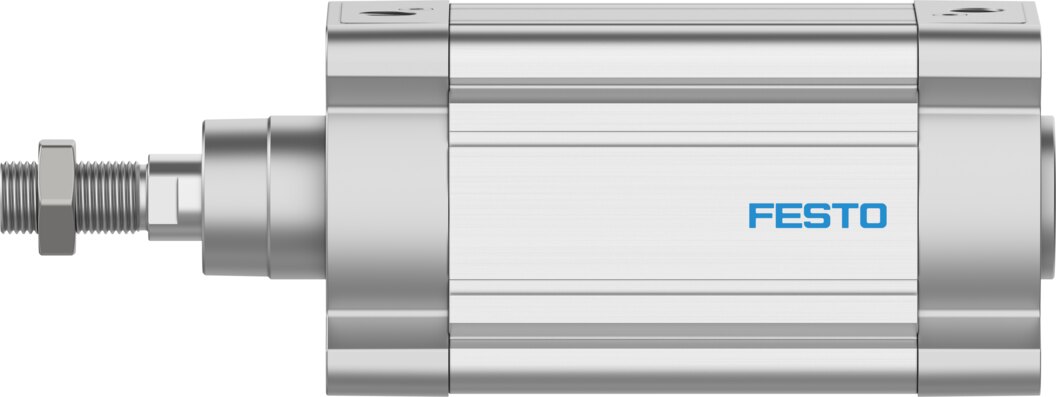

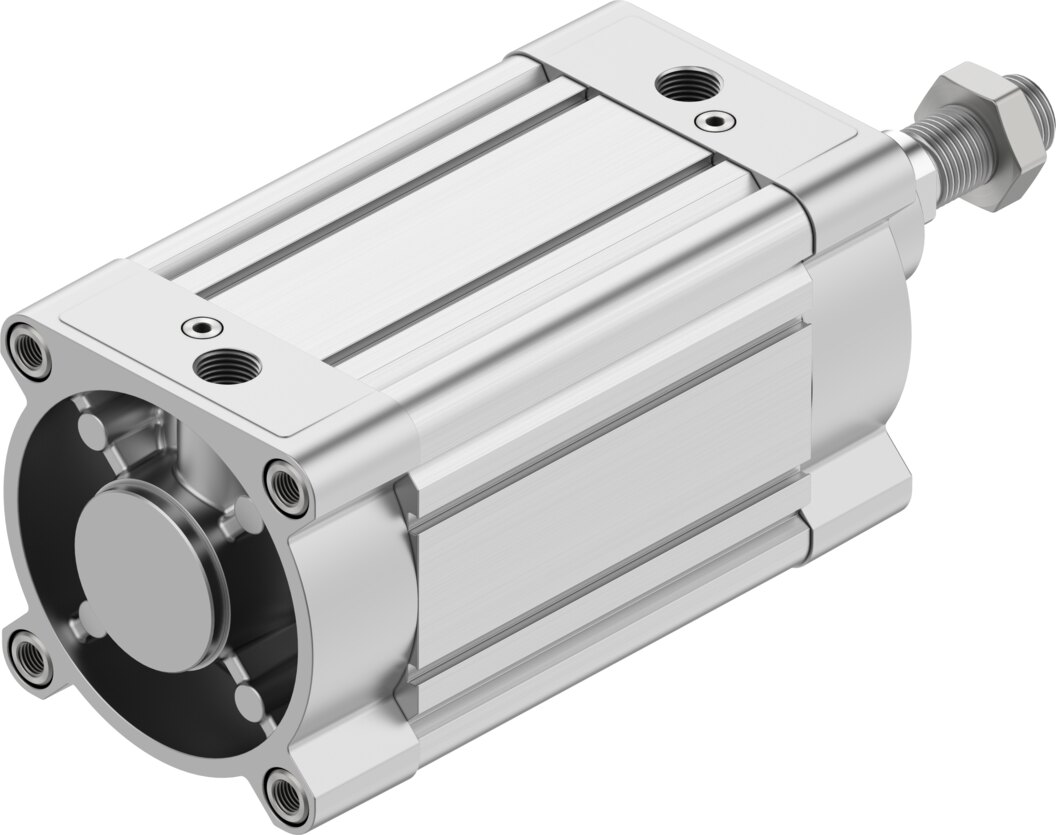

100 mm stroke and 7363 N of advance force at 6 bar: that is what the double-acting Festo ISO 15552 standard cylinder DSBC-125-100-D3-PPVA-N3 with a Ø 125 mm piston provides. The pneumatic end-position cushioning is adjustable at both ends, with a cushioning length of 45 mm. Weight 9.237 kg.

Net

€560.57

excl. VAT

Item FES-8165662

Manufacturer no. DSBC-125-100-D3-PPVA-N3

Question about this item

Datasheet (PDF)

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

At 6 bar the ISO 15552 standard cylinder DSBC-125-100-D3-PPVA-N3 converts compressed air into 7363 N advance and 6881 N return force, piston Ø 125 mm, stroke 100 mm. Port G1/2, end-position sensing via proximity switches.

Benefits

7363 N advance and 6881 N return force at 6 bar
Adjustable end-position cushioning PPV, up to 3.3 J
End positions can be sensed with proximity switches
Operating pressure 0.2 to 10 bar
Mounting dimensions to ISO 15552, interchangeable
Piston rod thread m27x2, piston rod: high-alloy steel

Applications

The ISO 15552 standard cylinder handles lifting, pushing and feeding movements in machine and plant engineering, here with a 100 mm stroke. The operating medium for the DSBC-125-100-D3-PPVA-N3 is compressed air to ISO 8573-1:2010 [7:4:4].

Technical data

Order type	DSBC-125-100-D3-PPVA-N3
Festo part number	8165662
Stroke	100 mm
Piston diameter	125 mm
Piston rod thread	m27x2
Cushioning	pneumatic cushioning, adjustable at both ends
Mounting position	any
Conforms to standard	ISO 15552
Piston rod end	male thread
Design	piston, piston rod, profile barrel
Position detection	via proximity switch
Variants	piston rod at one end
Operating pressure	0.2 to 10 bar
Mode of operation	double-acting
Operating medium	compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium	lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC	2 - moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20 to 80 °C
Impact energy in end positions	3.3 J
Cushioning length	45 mm
Theoretical force at 6 bar, return stroke	6881 N
Theoretical force at 6 bar, advance stroke	7363 N
Moving mass	2875 g
Moving mass for 0 mm stroke	2245 g
Additional moving mass per 10 mm stroke	63 g
Product weight	9237 g
Basic weight for 0 mm stroke	6768 g
Additional weight per 10 mm stroke	247 g
Type of mounting	with female thread, with accessories
Pneumatic connection	G1/2
Note on materials	roHS compliant
Material cover	coated die-cast aluminium
Material piston seal	TPE-U(PU)
Material piston	wrought aluminium alloy
Material piston rod	high-alloy steel
Material piston rod wiper	TPE-U(PU)
Material buffer seal	TPE-U(PU)
Material cushioning boss	POM
Material cylinder barrel	smooth-anodised wrought aluminium alloy
Material nut	galvanised steel
Material rod wiper	TPE-E
Material bearing	metal polymer compound
Material collar screws	galvanised steel
Customs tariff number	84123100
Manufacturer	Festo
Hersteller-Nr	DSBC-125-100-D3-PPVA-N3
EAN	4052568598143
Zolltarifnummer	84123100
GPSR Herstellerdaten	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Artikelzustand	New
Artikel-Authentizität	Original product
Ausführung	einseitige Kolbenstange
Thread	G 1/2
Piston Ø [mm]	125
Stroke [mm]	100
Medium	Compressed air
Function	double-acting
Norm	ISO 15552
Series	DSBC
Bore (mm)	125
Betriebsdruck max [bar]	10
Temperaturbereich	-20-80 °C
Temperature (max.)	80
