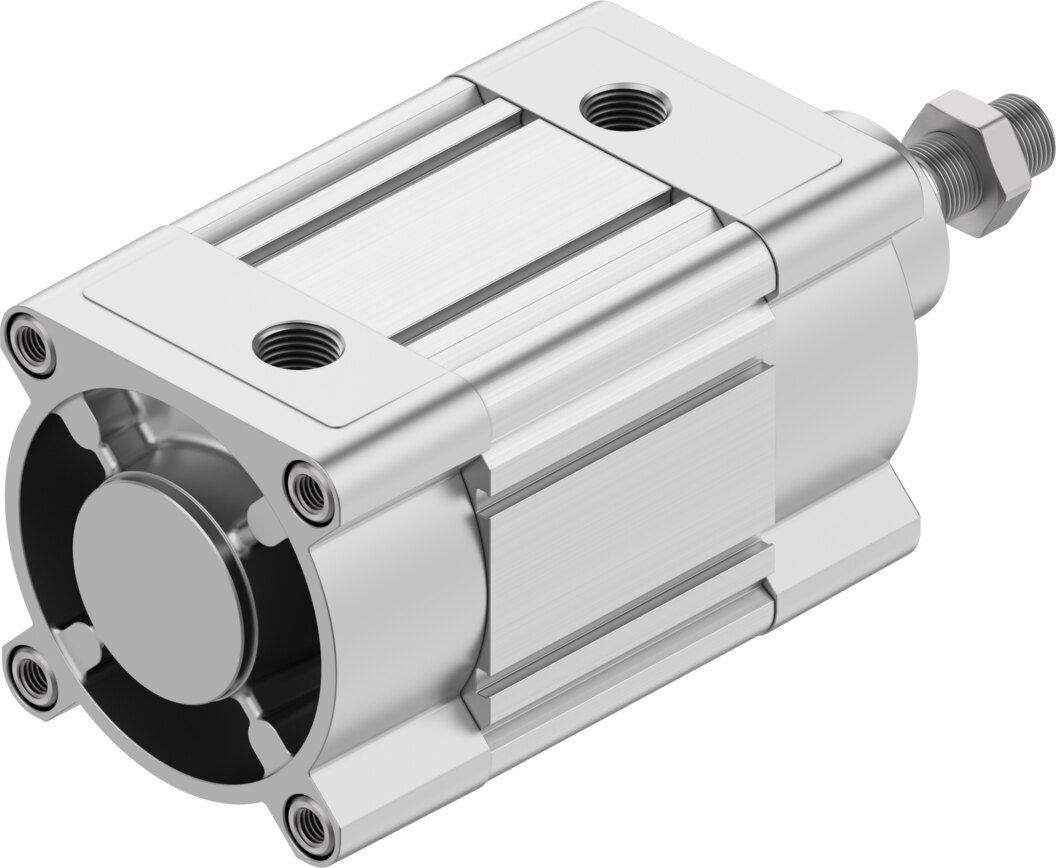

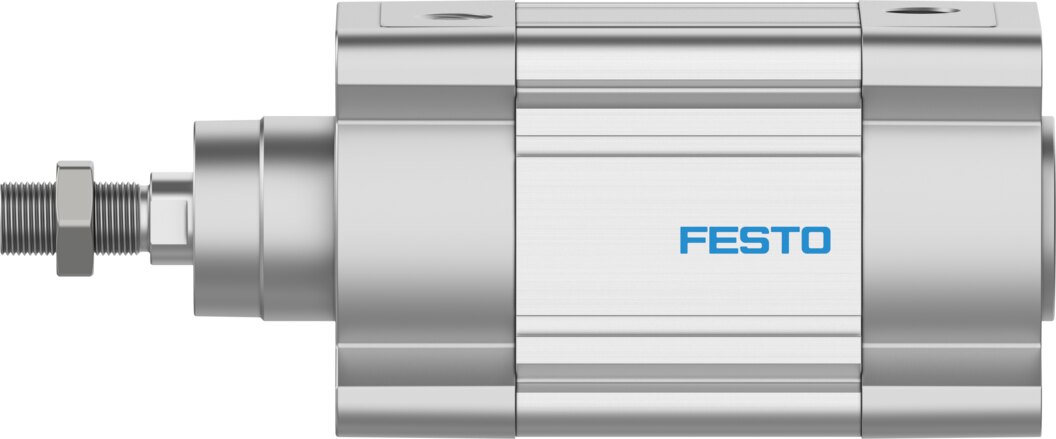

Double-acting ISO 15552 standard cylinder Ø 100 mm stroke 50 mm DSBC-100-50-D3-PPSA-N3 - Festo 8165695

Name: Double-acting ISO 15552 standard cylinder Ø 100 mm stroke 50 mm DSBC-100-50-D3-PPSA-N3 - Festo 8165695
Brand: Festo
SKU: FES-8165695
Price: 351.20 EUR
Availability: InStock

Festo ✓ Original product Brand new

The ISO 15552 standard cylinder DSBC-100-50-D3-PPSA-N3 delivers 4712 N on the advance stroke and 4418 N on the return stroke at 6 bar, with a Ø 100 mm piston and 50 mm stroke. The self-adjusting end-position cushioning PPS adapts to load and speed, cushioning length 31 mm. Weight 4.553 kg.

Net

€351.20

excl. VAT

Item FES-8165695

Manufacturer no. DSBC-100-50-D3-PPSA-N3

Question about this item

Datasheet (PDF)

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

The Ø 100 mm piston of the ISO 15552 standard cylinder DSBC-100-50-D3-PPSA-N3 generates 4712 N of advance force and 4418 N when retracting at 6 bar, the stroke is 50 mm. Prepared for proximity switches, port G1/2.

Benefits

4712 N advance and 4418 N return force at 6 bar
Self-adjusting cushioning PPS, 31 mm cushioning length
Position detection via proximity switches
Operating pressure 0.4 to 12 bar
Dimensions to ISO 15552
Piston rod thread m20x1.5, piston rod: high-alloy steel

Applications

Typical tasks for the DSBC-100-50-D3-PPSA-N3 are clamping, ejecting and shifting over 50 mm in assembly and test systems. The operating medium for the DSBC-100-50-D3-PPSA-N3 is compressed air to ISO 8573-1:2010 [7:4:4].

Technical data

Order type	DSBC-100-50-D3-PPSA-N3
Festo part number	8165695
Stroke	50 mm
Piston diameter	100 mm
Piston rod thread	m20x1.5
Cushioning	self-adjusting pneumatic end-position cushioning
Mounting position	any
Conforms to standard	ISO 15552
Piston rod end	male thread
Design	piston, piston rod, profile barrel
Position detection	via proximity switch
Variants	piston rod at one end
Operating pressure	0.4 to 12 bar
Mode of operation	double-acting
Operating medium	compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium	lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC	2 - moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20 to 80 °C
Impact energy in end positions	2.5 J
Cushioning length	31 mm
Theoretical force at 6 bar, return stroke	4418 N
Theoretical force at 6 bar, advance stroke	4712 N
Moving mass	1195 g
Moving mass for 0 mm stroke	1000 g
Additional moving mass per 10 mm stroke	39 g
Product weight	4553 g
Basic weight for 0 mm stroke	3728 g
Additional weight per 10 mm stroke	152 g
Type of mounting	with female thread, with accessories
Pneumatic connection	G1/2
Note on materials	roHS compliant
Material cover	coated die-cast aluminium
Material piston seal	TPE-U(PU)
Material piston	wrought aluminium alloy
Material piston rod	high-alloy steel
Material piston rod wiper	TPE-U(PU)
Material buffer seal	TPE-U(PU)
Material cushioning boss	POM
Material cylinder barrel	smooth-anodised wrought aluminium alloy
Material nut	galvanised steel
Material rod wiper	TPE-E
Material bearing	metal polymer compound
Material collar screws	galvanised steel
Customs tariff number	84123100
Manufacturer	Festo
Hersteller-Nr	DSBC-100-50-D3-PPSA-N3
EAN	4052568598464
Zolltarifnummer	84123100
GPSR Herstellerdaten	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Artikelzustand	New
Artikel-Authentizität	Original product
Ausführung	einseitige Kolbenstange
Thread	G 1/2
Piston Ø [mm]	100
Stroke [mm]	50
Medium	Compressed air
Function	double-acting
Norm	ISO 15552
Series	DSBC
Bore (mm)	100
Betriebsdruck max [bar]	12
Temperaturbereich	-20-80 °C
Temperature (max.)	80
