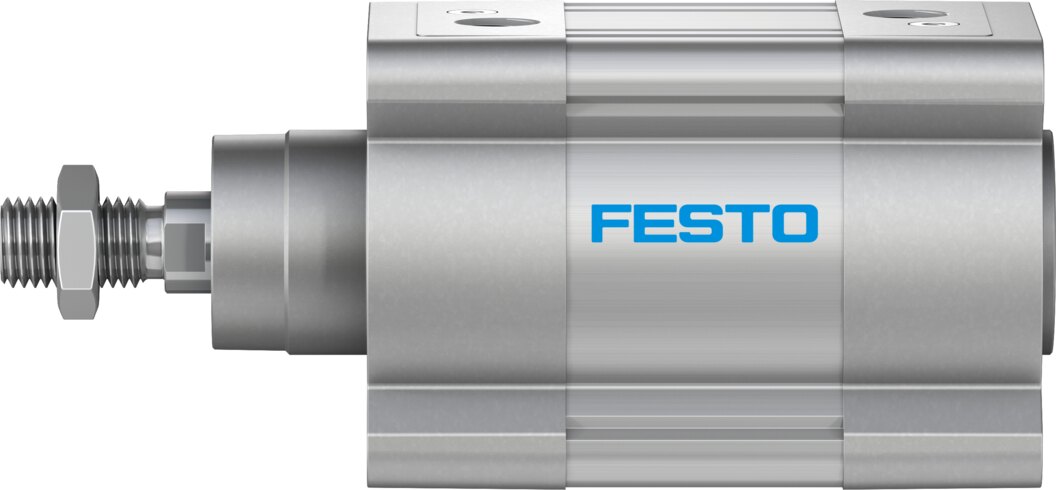

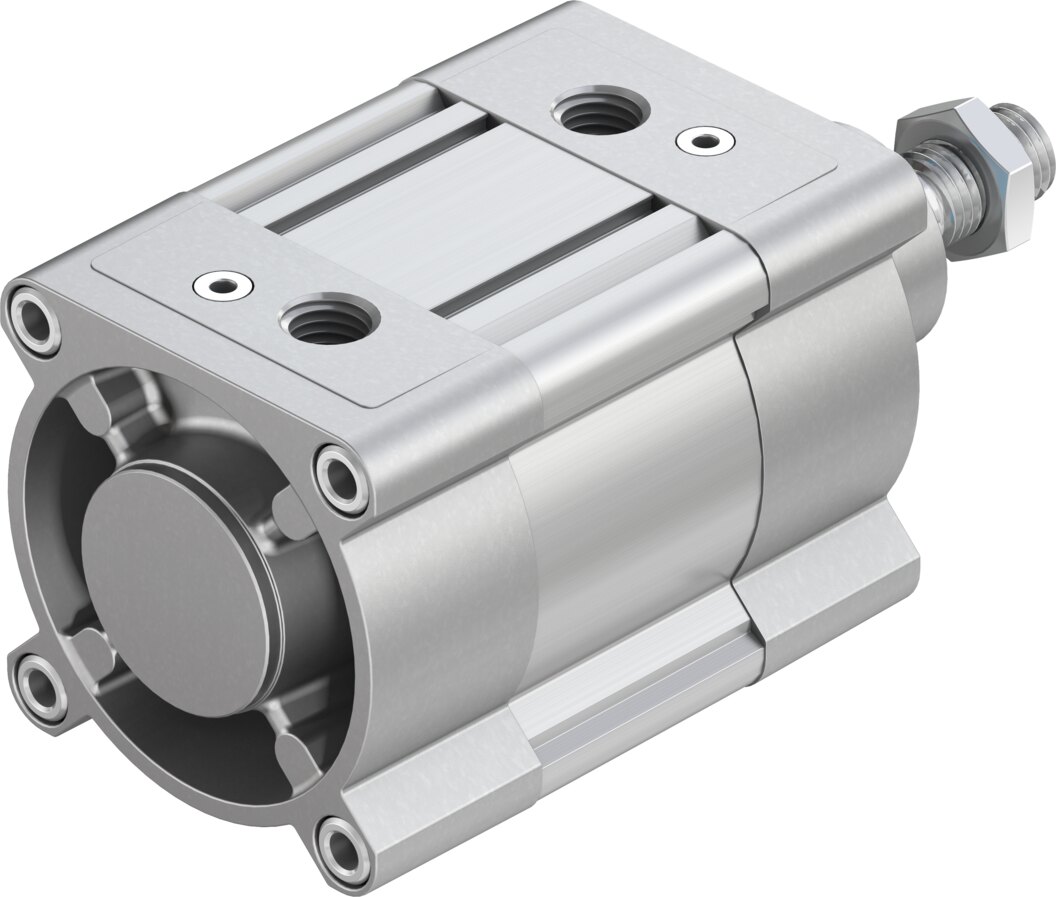

Double-acting standard cylinder Ø 100 mm stroke 140 mm DSBC-100-140-PPVA-N3 - Festo 593699

The Festo standard cylinder DSBC-100-140-PPVA-N3 extends its piston rod over 140 mm, the piston has a diameter of 100 mm. Compressed air drives the piston both ways, so advance and return over 140 mm are powered.

Benefits

• Piston Ø 100 mm, stroke 140 mm
• Adjustable end-position cushioning PPV
• End positions can be sensed with proximity switches
• Double-acting: force in both directions
• Weight 5 kg
• Clearly identified by Festo part number 593699

Applications

Typical tasks for the DSBC-100-140-PPVA-N3 are clamping, ejecting and shifting over 140 mm in assembly and test systems.
